ABB / General Electric TJS3605D Molded Case Circuit Breaker
- 500A
- 3 Pole
- Unit Mount
Quantity
ABB / General Electric TJS3605D - 500A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
Description

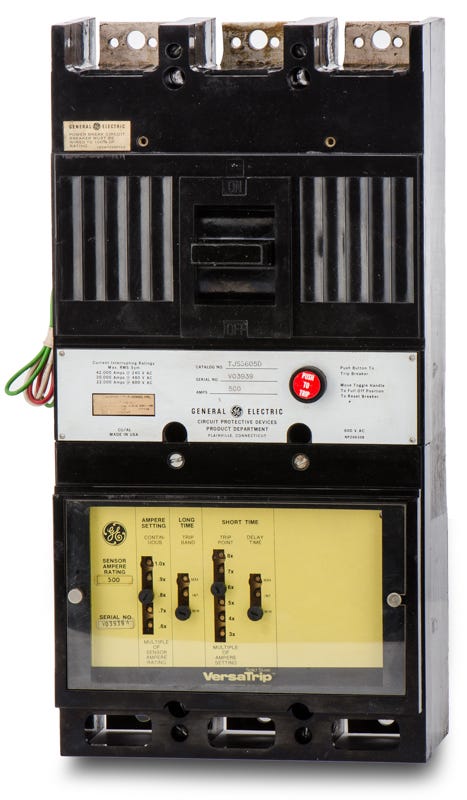

Built for industrial applications, the TJS3605D is a 500A, 3-pole electronic trip circuit breaker from GE. It provides configurable overcurrent protection for complex networks. Designed for unit-mount configurations, this MCCB integrates into GE J-Frame enclosures, motor control centers, and switchboards. It serves as a cross-reference for THJS3605D breakers. The MicroVersaTrip solid-state unit allows users to adjust long-time and short-time pickup. It delivers a 30 kAIC rating at 480VAC.Specifications
| Brand | ABB / General Electric |
|---|---|
| Part Number | TJS3605D-R |
| Series | TJS |
| Amperage | 500A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 600VAC |
| Phase | 3 |
| AIC Rating | 42kA @ 240VAC, 30kA @ 480VAC, 22kA @ 600VAC |
| Amperage Range | 250-500A |
|---|
| Terminal Type | Lugs |
|---|---|
| For Use With | GE J-Frame Enclosures, Switchboards, Motor Control Centers |
| Wire Gauge | (2) 2/0 AWG - 500 kcmil (Al/Cu) |
| Max Wire | 500 kcmil |
| Min Wire | 2/0 AWG |
| Trip Technology | Electronic Trip |
|---|---|
| Trip Function Code | LS |
| Trip Function | Long-Time, Short-Time |
| Trip Adjustability | Adjustable |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Lug Kits, Bell Alarm |
|---|---|
| Accessories | Lugs |
| Standards | CSA C22.2 No. 5, NEMA AB 1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, True RMS Sensing |
Product FAQs
4 answersWhat type of trip unit is equipped on the TJS3605D?
This breaker features a MicroVersaTrip solid-state electronic trip unit. It provides adjustable Long-Time and Short-Time (LS) overcurrent protection settings to coordinate with complex electrical networks.
What equipment is compatible with this J-Frame breaker?
The TJS3605D is designed for unit-mount configurations. It integrates directly into compatible GE J-Frame enclosures, motor control centers, and switchboards.
What wire sizes do the factory lugs accept?
The included lugs are rated for dual conductors, accepting two 2/0 AWG to 500 kcmil aluminum or copper wires per phase.
Can the TJS3605D be used as a replacement for a THJS3605D?
Yes, it shares the same physical dimensions and bolt-on mounting footprint as the THJS3605D. However, you must verify that the standard interrupting capacity of the TJS3605D meets your system fault current requirements before substituting.
