ABB / General Electric TK236125 Molded Case Circuit Breaker
- 125A
- 3 Pole
- Bolt-On
Quantity

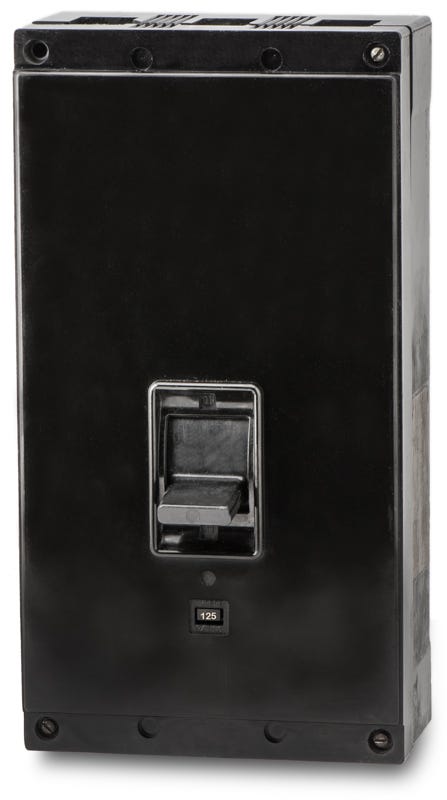

ABB / General Electric TK236125 - 125A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
Description
Delivering reliable 125-amp protection, this GE 3-pole MCCB is engineered for commercial and industrial power distribution. It offers fixed thermal and adjustable magnetic trip functions to handle diverse electrical loads. The breaker mounts into A-Series switchboards and panelboards using a standard bolt-on configuration. It crosses over to the THFK236125 for replacement needs. Featuring a 30kAIC rating at 480V, this K-frame device comes equipped with an interchangeable trip unit.Specifications
| Brand | ABB / General Electric |
|---|---|
| Part Number | TK236125-R |
| Series | TK |
| Amperage | 125A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 42kA @ 240VAC, 30kA @ 480VAC, 22kA @ 600VAC, 10kA @ 250VDC |
| Terminal Type | Lugs |
|---|---|
| For Use With | GE A-Series Panelboards, Switchboards, Motor Control Centers |
| Wire Gauge | 4 AWG - 300 kcmil (Cu/Al) |
| Max Wire | 300 kcmil |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Adjustable Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5.1, NEMA AB 1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Interchangeable Trip Unit |
Product FAQs
5 answersWhich panelboards are compatible with the TK236125 breaker?
This bolt-on breaker is designed for use in GE A-Series panelboards, as well as compatible GE switchboards and motor control centers.
How does the trip unit function on the TK236125?
It features a thermal magnetic trip unit with fixed thermal protection for overloads and an adjustable magnetic setting for instantaneous short-circuit protection. This allows electricians to coordinate the instantaneous trip point with other devices in the system.
What type of wiring is accepted by the standard lugs on this breaker?
The factory lugs accept both copper and aluminum conductors ranging from 4 AWG to 300 kcmil. Ensure proper torque specifications are followed during installation as outlined by the manufacturer.
Why is this breaker listed under both ABB and General Electric?
ABB acquired GE Industrial Solutions in 2018. Depending on the manufacturing date, this K-frame breaker may carry either the GE or ABB brand name, but the physical dimensions and performance specifications remain identical.
Does this breaker require a specific mounting hardware kit?
As a bolt-on MCCB, it mounts directly to the bus in compatible GE A-Series panelboards and switchboards. Verify if your specific enclosure requires a separate mounting kit or filler plates for K-frame breakers.
