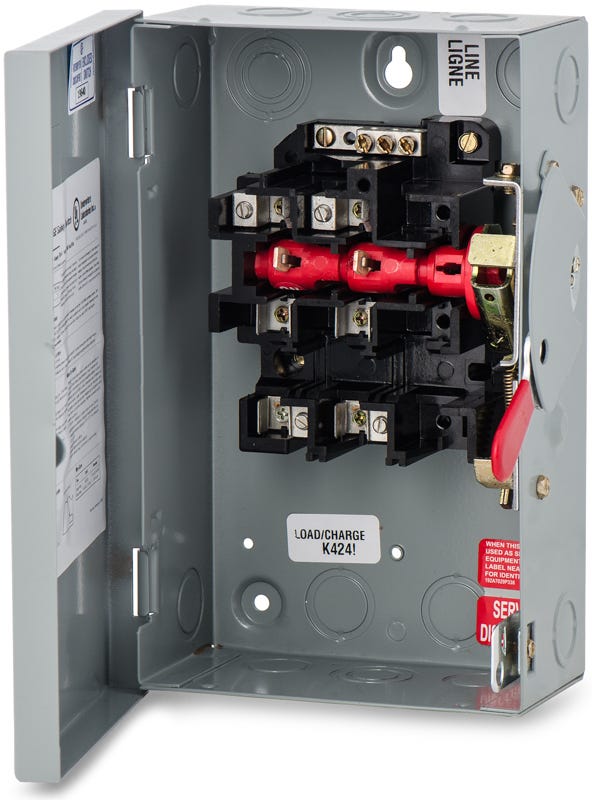

General Electric TG3221 General Duty Safety Switch
Quantity
General Electric TG3221 General Duty Safety Switch
New
Quantity
Description
TG3221 - General Electric Safety Switch
• Authentic General Electric Product
• General Duty Safety
• 120/240 V Ac Voltage
• 125/250 V Dc Voltage
• 30 Ampere
• Power Rating 1-1/2 Hp At 240 Vac 1 Phase 3 Hp At 240 Vac 3 Phase (Nec Standard)
• 3 Hp At 240 Vac 1 Phase 7 1/2 Hp At 240 Vac 3 Phase (Time Delay Fuse)
• 2 Hp At 125 Vdc 5 Hp At 250 Vdc
• 2 Pole
• 3 Wire
• Cartridge Class H/K/R Time Delay Fuse
• Fusible Fuse
• Solid Neutral
• Nema 1
• Size 7 Inch W X 3-5/16 Inch D X 10-5/8 Inch H
• Approval Ul 98 Csa
• Spec-Setter[T] Brand
• Tg Model
• Applicable Standard Nec Nema Ks-1
Specifications
| Duty Rating | General Duty |
|---|---|
| Fusibility | Fusible |
| NEMA Rating | Nema 1 |
| Series | TG |
| Brand | General Electric |
|---|---|
| MPN | TG3221 |
| UPC | 783164008494 |
