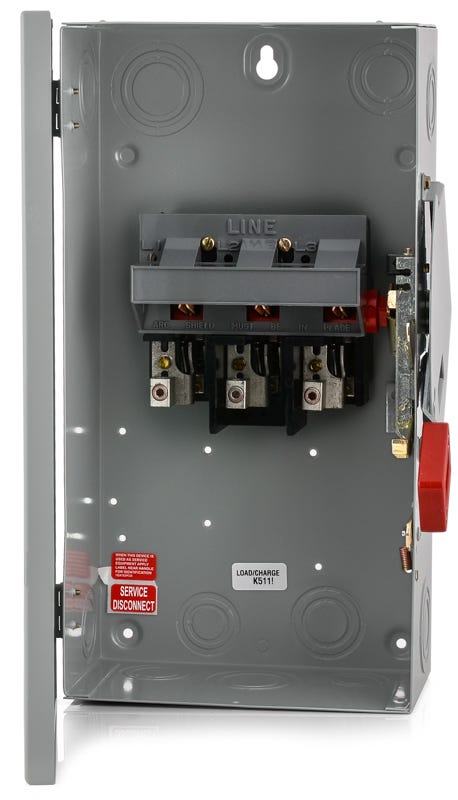

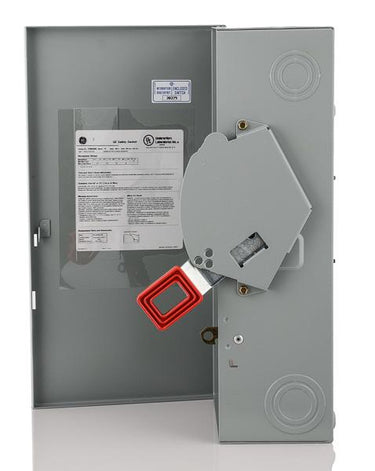

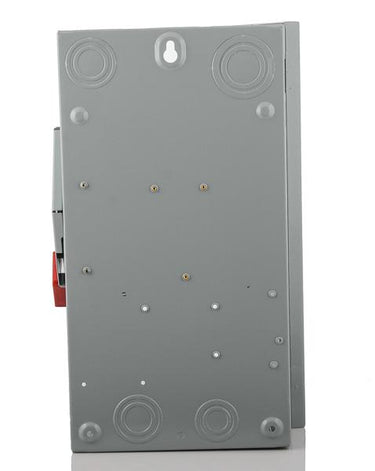

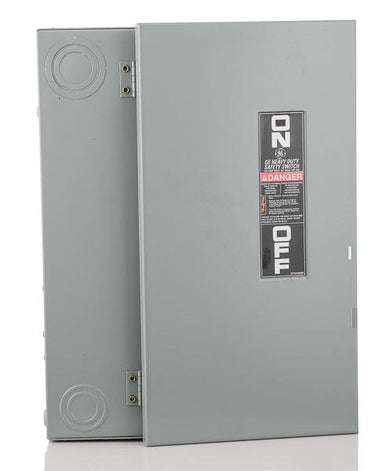

General Electric THN3363 Heavy Duty Safety Switch
Quantity
General Electric THN3363 Heavy Duty Safety Switch
New
Quantity
Description
THN3363 - General Electric Safety Switch
• Authentic General Electric Product
• Heavy Duty Safety
• 240/480/600 V Ac Voltage
• 250 V Dc Voltage
• 100 Ampere
• Power Rating 20 Hp At 240 Vac 1 Phase 40 Hp At 240 Vac 3 Phase (Nec Standard)
• 75 Hp At 480 Vac 3 Phase 100 Hp At 600 Vac 3 Phase (Time Delay Fuse)
• 20 Hp At 250 Vdc
• 3 Pole
• 3 Wire
• Non Fusible Fuse
• Switching Neutral
• Nema 1
• Size 10-1/8 Inch W X 5 Inch D X 17-5/8 Inch H
• Approval Ul 98 Csa
• Spec-Setter[T] Brand
• Th Model
• Applicable Standard Nec Nema Ks-1
Specifications
| Duty Rating | Heavy Duty |
|---|---|
| Fusibility | Fusible |
| NEMA Rating | Nema 1 |
| Series | THN |
| Breaker Feature | Switching Neutral |
|---|
| Brand | General Electric |
|---|---|
| MPN | THN3363 |
| UPC | 783164011340 |
