General Electric TKMA836T350 Circuit Breaker
- 350
- 3 Pole
Quantity
General Electric TKMA836T350 3 Pole Circuit Breaker
New
Quantity
Quantity
General Electric TKMA836T350 3 Pole Circuit Breaker
New
Quantity
| Brand | General Electric |
|---|---|
| Part Number | TKMA836T350-R |
| Series | TKMA |
| Amperage | 350 A |
| Poles | 3 |
| Voltage | 600 V |
| Frame Type | TKM |
|---|---|
| For Use With | Standard and Hi-Break Frame |
Quantity
General Electric TKMA836T350 3 Pole Circuit Breaker
Re-Certified
Quantity
| Brand | General Electric |
|---|---|
| Part Number | TKMA836T350-R |
| Series | TKMA |
| Amperage | 350 A |
| Poles | 3 |
| Voltage | 600 V |
| Frame Type | TKM |
|---|---|
| For Use With | Standard and Hi-Break Frame |
Description

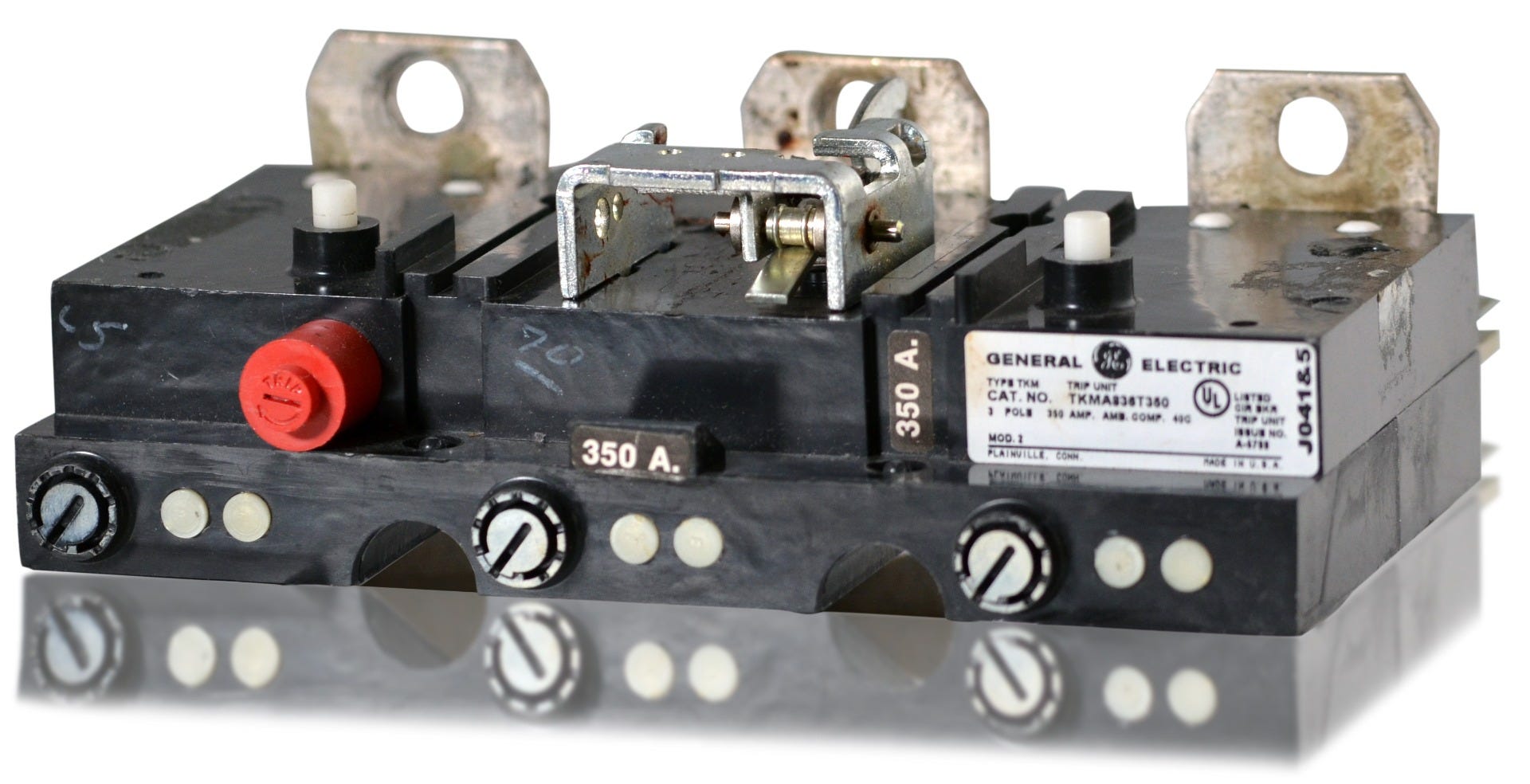

General Electric TKMA836T350 3 Pole Circuit Breaker
The General Electric TKMA836T350 is a 3 Pole thermal magnetic molded case circuit breaker with a current rating of 350 Amps and a voltage rating of 600V. It is used for residential, commercial, industrial applications.
Specifications
| Brand | General Electric |
|---|---|
| Part Number | TKMA836T350-R |
| Series | TKMA |
| Amperage | 350 A |
| Poles | 3 |
| Voltage | 600 V |
| Frame Type | TKM |
|---|---|
| For Use With | Standard and Hi-Break Frame |
Product FAQs
6 answersWhat trip functions are included in the TKMA836T350?
This breaker features an interchangeable thermal-magnetic trip unit that provides Long-Time and Instantaneous (LI) protection functions.
Which breaker frames are compatible with this trip unit?
The TKMA836T350 is part of the GE K1200 Line and is designed for use with standard TKM and Hi-Break THKM molded case circuit breaker frames.
What type of connection does the TKMA836T350 use?
This K1200 Line circuit breaker requires a bolt-on connection for secure installation into compatible power distribution panels.
Will this breaker match an ABB TKMA836T350?
Yes. Following the acquisition of GE Industrial Solutions by ABB, these K1200 Line breakers may feature either GE or ABB branding. They are identical in form, fit, and function.
What is the interrupting capacity for this TKM frame breaker?
When installed in a standard TKM frame, this breaker provides an interrupting rating of 30 kAIC at 480V and 42 kAIC at 240V.
What are the physical dimensions of the TKMA836T350?
This K1200 Line circuit breaker measures 15.5 inches in height, 8.25 inches in width, and 5.25 inches in depth.
