General Electric THQL1115AFP2 General Electric THQL1115AFP2
Quantity
Core Specs
See full specs
General Electric THQL1115AFP2
New
Quantity
Description

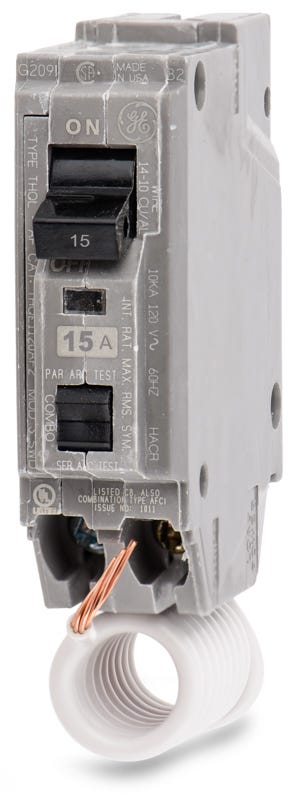

General Electric THQL1115AFP2 1 Pole Combination Arc Fault Circuit Breaker
The General Electric THQL1115AFP2 is a 1 Pole molded case combination arc fault circuit breaker with a current rating of 15 Amps and a voltage rating of 120/240VAC. It has an interrupting rating of 10kAIC at 240V. The THQL1115AFP2 has a plug-in connection type and includes long time and instantaneous trip functions.
Specifications
| Amperage | 15 A |
|---|---|
| Voltage | 120/240VAC |
| Series | THQ |
| Poles | 1 |
| Phase | 1 |
|---|---|
| Interrupting Rating | 10kAIC at 240V |
| Mounting Type | Plug-On |
|---|---|
| Frame Type | THQL |
| Connection Type | Plug-In |
| Length (in) | 6.45 |
| Width (in) | 4.15 |
| Height (in) | 1.3 |
| Contactor Type | Magnetic |
|---|---|
| Protection | Thermal Magnetic |
| Functions | LI - Long-Time and Instantaneous Trip |
| Circuit Breaker Type | CAFCI |
| Actuator Type | Toggle |
| Approval | UL |
|---|---|
| Standards | NEMA, ANSI |
| Breaker Feature | Arc Fault |
| Brand | General Electric |
|---|---|
| MPN | THQL1115AFP2 |
| UPC | 783164652826 |
