Siemens HOM120DF Dual Function Miniature Circuit Breaker
- 20A
- 1 Pole
- Plug-On
Quantity
Siemens HOM120DF - 20A Dual Function Miniature Circuit Breaker
New
Quantity
Description

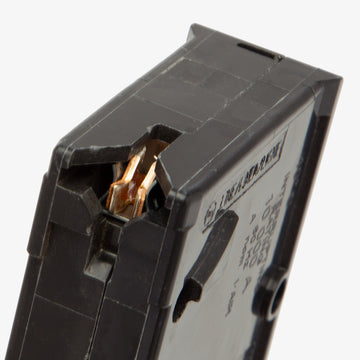

Part of the Homeline series, the Square D HOM120DF delivers 20A of dual function protection for residential systems. It combines combination arc-fault (CAFCI) and Class A ground-fault (GFCI) interruption into a single device, ideal for kitchen and laundry applications. This 1-pole breaker installs into Square D Homeline load centers using a standard plug-on connection. It accepts 14-8 AWG wire. Rated for 10 kAIC at 120VAC, the unit features Time-Saver Diagnostics to identify trip causes.Specifications
| Brand | Siemens |
|---|---|
| Part Number | HOM120DF |
| Series | HOM |
| Amperage | 20A |
| Poles | 1 |
| Mounting Style | Plug-On |
| Voltage | 120VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120VAC |
| Terminal Type | Screw/Clamp Terminal |
|---|---|
| For Use With | Square D Homeline Load Centers |
| Wire Gauge | 14-8 AWG (Al/Cu) or 2x 14-10 AWG (Cu) |
| Max Wire | 8 AWG (Al/Cu) |
| Min Wire | 14 AWG (Al/Cu) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LIG |
| Trip Function | Long-Time, Instantaneous, Ground Fault |
| Trip Adjustability | Fixed |
| Special Classification | Dual Function (AFCI/GFCI) |
|---|---|
| Available Options | Padlock Attachment |
| Accessories | Pigtail Neutral |
| Standards | HACR, NEC, UL 1699, UL 489, UL 943 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Visual Trip Indicator, Time-Saver Diagnostics |
Product FAQs
5 answersWhich load centers are compatible with the HOM120DF circuit breaker?
This breaker is designed specifically for use in Square D Homeline load centers. Because it utilizes a pigtail neutral, it is compatible with both legacy and modern Homeline panels.
Does the HOM120DF require a plug-on neutral panel for installation?

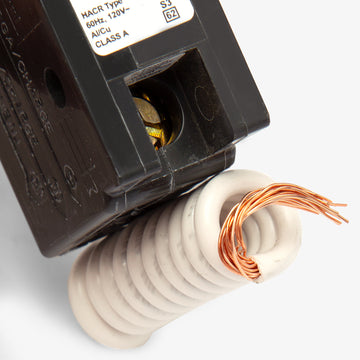

No. This breaker features a pigtail neutral connection, which means the coiled white wire must be manually terminated at the panel's neutral bus bar. It does not require a specialized plug-on neutral load center.
Can I terminate two wires under the lug of the HOM120DF?
Yes, the clamp terminal is rated to accept two 14 AWG to 10 AWG copper wires. If using aluminum wire or a larger 8 AWG copper wire, only a single conductor is permitted.
What does dual function protection mean on this breaker?
Dual function indicates that the breaker provides both Combination Arc-Fault (CAFCI) and Class A Ground-Fault (GFCI) protection. This meets National Electrical Code (NEC) requirements for circuits in areas like kitchens and laundry rooms where both types of protection are mandated.
What is the difference between the HOM120DF and the HOM120PDF?
The HOM120DF includes a pigtail neutral wire that must be wired to the neutral bus. The HOM120PDF is the plug-on neutral version, which eliminates the pigtail but requires a compatible Square D Homeline plug-on neutral load center.
