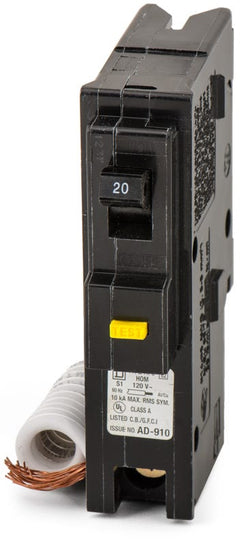

Square D HOM120PGFI GFCI Miniature Circuit Breaker
- 20A
- 1 Pole
- Plug-On
Square D
HOM120PGFI
GFCI Miniature Circuit Breaker
Brand
Square D
SKU
HOM120PGFI
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Square D HOM120PGFI - 20A GFCI Miniature Circuit Breaker
New
Quantity
Similar Items
15A GFCI Miniature Circuit Breaker
20A GFCI Miniature Circuit Breaker
Description
Built specifically for modern residential applications, this 20-amp ground-fault interrupter utilizes a time-saving plug-on neutral design. It mounts exclusively into Square D Homeline PON load centers, eliminating the need to route a separate pigtail wire to the neutral bar. Delivering essential Class A 6mA personnel protection, this unit ensures NEC compliance for areas prone to moisture while streamlining the wiring process for electrical contractors and facility managers.Specifications
| Brand | Square D |
|---|---|
| Series | HOM |
| Amperage | 20A |
| Poles | 1 |
| Mounting Style | Plug-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Terminal Type | Screw/Clamp Terminal |
|---|---|
| For Use With | Square D Homeline Plug-On Neutral Load Centers |
| Wire Gauge | 14-8 AWG (Al/Cu) |
| Max Wire | 8 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LIG |
| Trip Function | Long-Time, Instantaneous, Ground Fault |
| Trip Adjustability | Fixed |
| Special Classification | GFCI |
|---|---|
| Available Options | Padlock Attachment |
| Standards | HACR, UL 489, UL 943 |
| Approval | UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated |
Product FAQs
6 answersWhat is the difference between the HOM120PGFI and the HOM120GFI?
The HOM120PGFI features a Plug-On Neutral connection, meaning it connects directly to the neutral bar in a compatible Plug-On Neutral load center without a pigtail wire. The HOM120GFI includes a traditional pigtail wire for the neutral connection and is used in standard Homeline panels.
Can the HOM120PGFI be installed in any Square D Homeline panel?
No. This breaker requires a Square D Homeline Plug-On Neutral load center. If you have an older Homeline panel without a Plug-On Neutral bar, you must use the pigtail version, catalog number HOM120GFI.
What level of ground fault protection does the HOM120PGFI provide?
It provides Class A ground fault protection for personnel. The breaker is designed to trip and open the circuit when a ground fault current of 4 to 6 milliamps is detected.
Does the HOM120PGFI provide arc fault (AFCI) protection?
No. This breaker provides only ground fault (GFCI) protection. If your application requires both arc fault and ground fault protection to meet NEC requirements, you will need a Dual Function breaker, such as the HOM120PDFC.
Is the HOM120PGFI compatible with Square D QO load centers?
No. Homeline breakers are 1 inch wide per pole and are not interchangeable with the 3/4 inch wide QO breakers. For a QO Plug-On Neutral panel requiring a 20A GFCI breaker, use catalog number QO120PGFI.
How do I test the GFCI function on this breaker?
Once installed and energized, press the white test button on the front of the breaker. The breaker should trip immediately. Square D recommends performing this test monthly to ensure the internal circuitry is functioning correctly.
