Milbank UQFB-150 Circuit Breaker
- 150
- 2 Pole
- Bolt-On
Quantity
Milbank UQFB-150 2 Pole Circuit Breaker
New
Quantity
Description

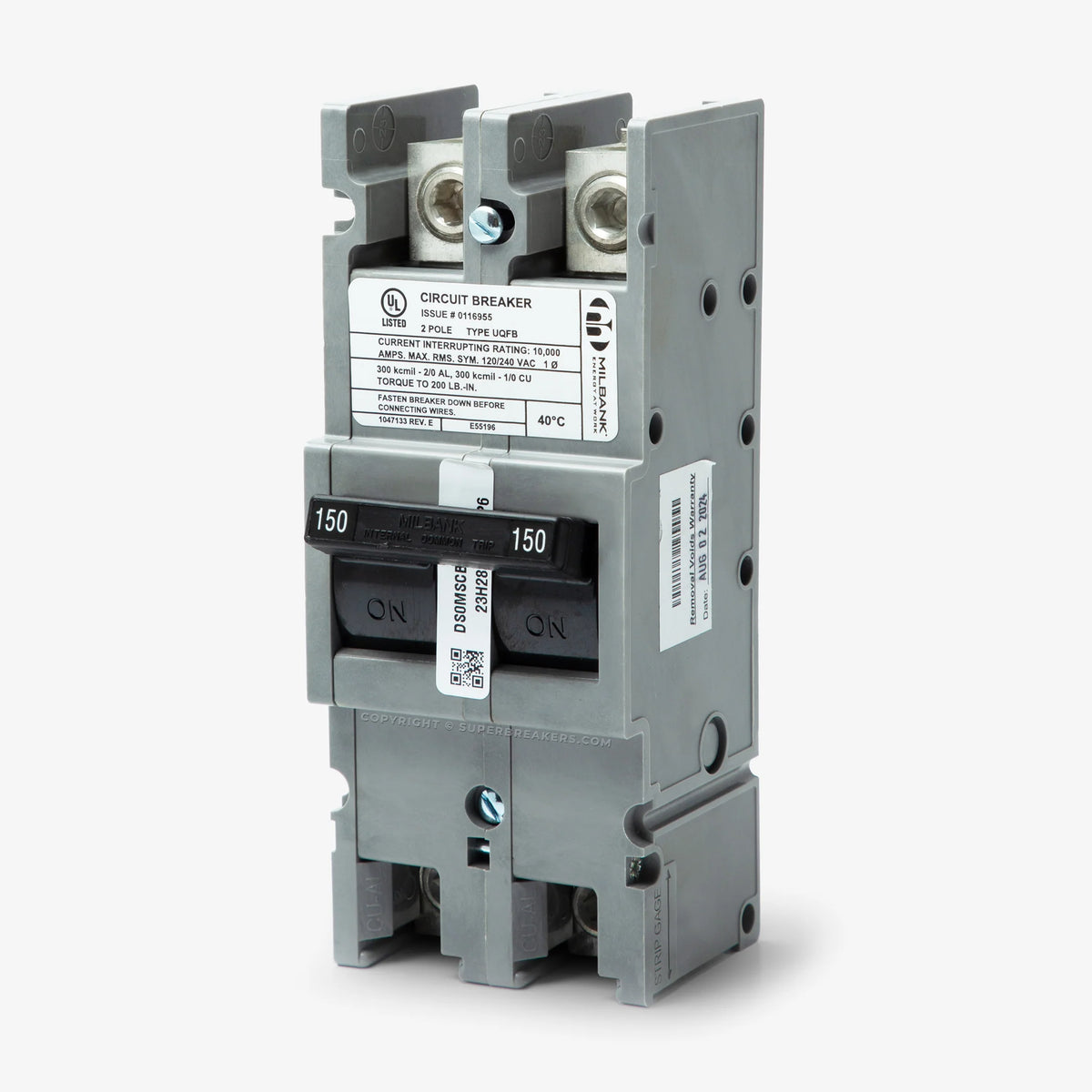

Milbank UQFB-150 Bolt-On Circuit Breaker
The Milbank UQFB-150 is a 2 Pole thermal magnetic molded case circuit breaker with a current rating of 150 Amps and a voltage rating of 240VAC. It has an interrupting rating of 10kAIC at 240V. The UQFB-150 has a bolt-on mounting type and includes long time and instantaneous trip functions.
Specifications
Product FAQs
5 answersWhat type of applications is the Milbank UQFB-150 typically used in?
This bolt-on breaker is primarily utilized as a main disconnect or current interrupting device within Milbank metering accessories, meter sockets, and current transformer cabinets.
What is the calibrated ambient operating temperature for the thermal-magnetic trip unit?
The internal thermal elements are calibrated for standard operation at an ambient temperature of 40 degrees Celsius (104 degrees Fahrenheit).
What system frequency is this circuit breaker designed to operate on?
It is rated for standard 60 Hz alternating current (AC) electrical distribution systems.
Does this breaker meet Underwriters Laboratories safety standards?
Yes, the UQFB-150 is strictly UL Listed as a current interrupting device for secure integration into compatible metering equipment.
Do I need utility approval before installing this breaker in a metering enclosure?
Yes. Since metering equipment specifications and approvals vary by local utility, always consult your serving utility company guidelines and local electrical codes before completing the installation.
