Siemens MBKFD3A Mounting Kit
Quantity
Core Specs
See full specs
Siemens MBKFD3A Mounting Kit
New
Quantity
Description

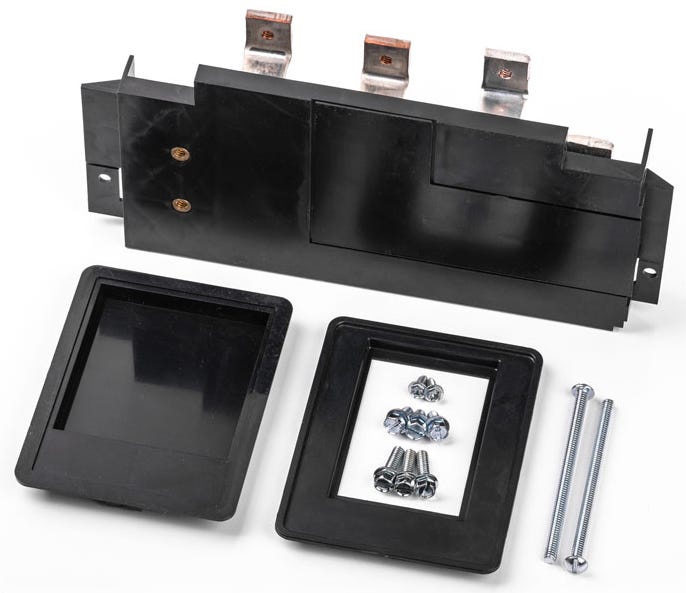

Siemens MBKFD3A Mounting Kit
The Siemens MBKFD3A is a 3 Pole mounting kit with a current rating of 250 Amps and a voltage rating of 600V. It has an interrupting rating of 65kA at 240V, 35kA at 480V. The MBKFD3A has a bolt-on mounting type and it is used for FD6, FXD6, HFD6, HFXD6, FD, FXD, HFD circuit breaker types and P1-T panelboards.
Specifications
| For Use With | FD6, FXD6, HFD6, HFXD6, FD, FXD, HFD Circuit Breaker Types and P1-T Panelboards |
|---|---|
| Voltage | 600V |
| Poles | 3 |
| Series | Sentron |
| Amperage | 250 A |
|---|---|
| Phase | 3 |
| Frame Type | FD |
|---|
| Brand | Siemens |
|---|---|
| MPN | MBKFD3A |
| UPC | 887621579098 |
