Square D JLL36250M75 Motor Circuit Protector
- 250A
- 3 Pole
- Unit Mount
Quantity

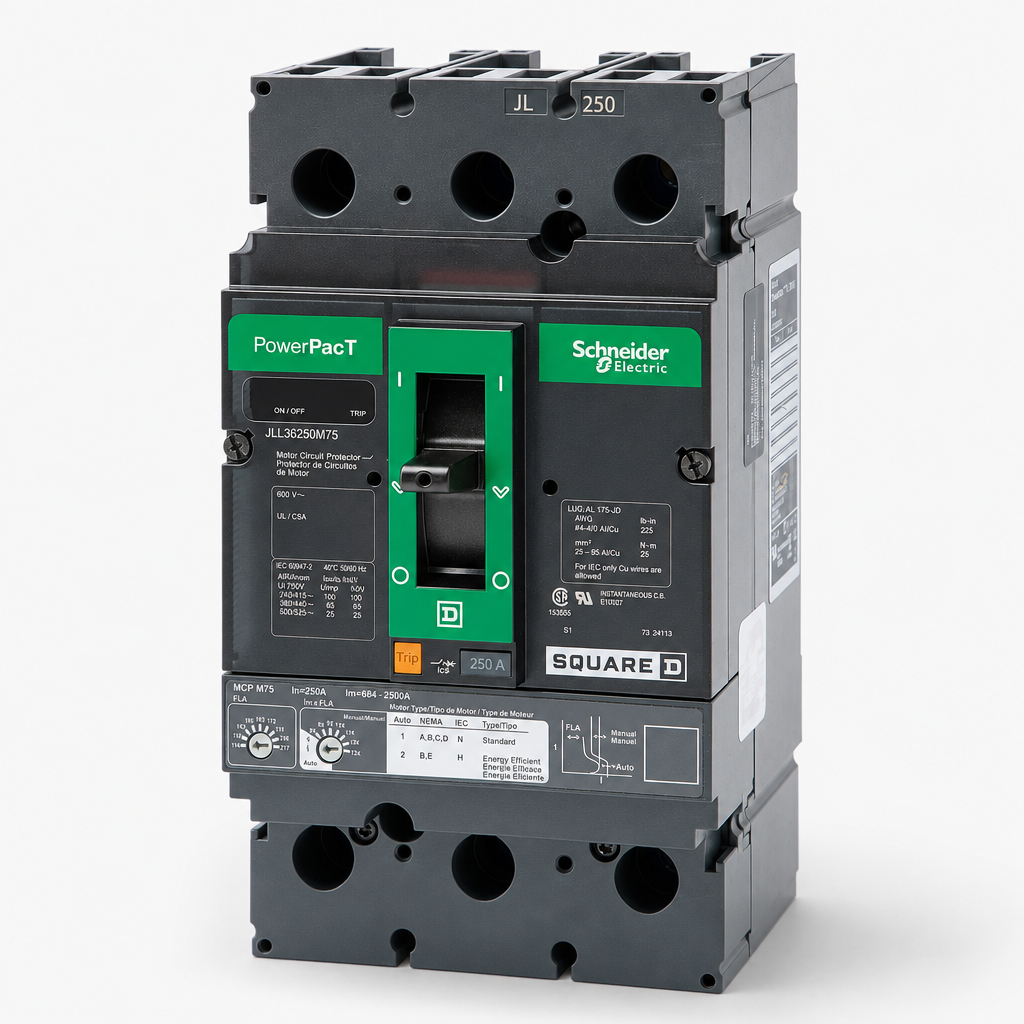

Square D JLL36250M75 - 250A 3 Pole Motor Circuit Protector
New
Quantity
Description
Engineered for high-fault environments, this 250A, 3-pole motor circuit protector provides reliable instantaneous short-circuit defense for industrial motor applications. The PowerPacT J-Frame device integrates into motor control centers and industrial panels using standard lugs. It coordinates seamlessly with Square D starters. An adjustable magnetic trip range of 684-2500A ensures precise motor protection. A high 100kAIC rating at 480VAC delivers exceptional current-limiting performance.Specifications
| Brand | Square D |
|---|---|
| Part Number | JLL36250M75 |
| Series | JLL |
| Amperage | 250A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480Y/277VAC, 480VAC, 600Y/347VAC, 600VAC |
| Phase | 3 |
| AIC Rating | 125kA @ 240VAC, 100kA @ 480Y/277VAC, 100kA @ 480VAC, 50kA @ 600Y/347VAC, 50kA @ 600VAC |
| Frame Type | JLL |
|---|---|
| Terminal Type | Lugs |
| For Use With | Motor Control Centers, Motor Starters, Industrial Control Panels |
| Wire Gauge | 3/0 AWG-350 kcmil (Al/Cu) |
| Max Wire | 350 kcmil |
| Min Wire | 3/0 AWG |
| Trip Technology | Magnetic Only |
|---|---|
| Trip Function Code | I |
| Trip Function | Instantaneous Only |
| Trip Adjustability | Adjustable Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Motor Operator, Rotary Handle, Handle Padlock Attachment |
|---|---|
| Accessories | Lugs (Line and Load) |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB 1, NOM-003-SCFI-2000, UL 489 |
| Approval | CE, CSA, IEC, NOM, UL |
| Temp Rating | -25C to 70C |
| Construction Features | Current Limiting, Motor Circuit Protector, Visual Trip Indicator, RoHS Compliant |
