Siemens MPD2200 Molded Case Circuit Breaker
- 200A
- 2 Pole
- Plug-On
Quantity

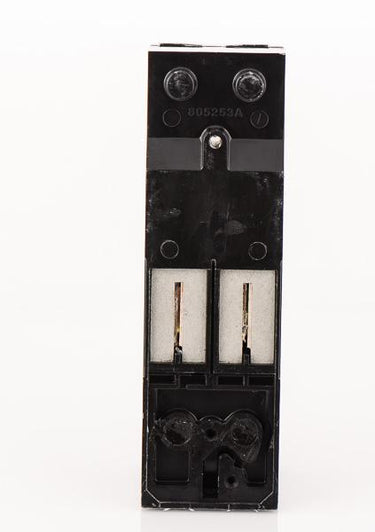

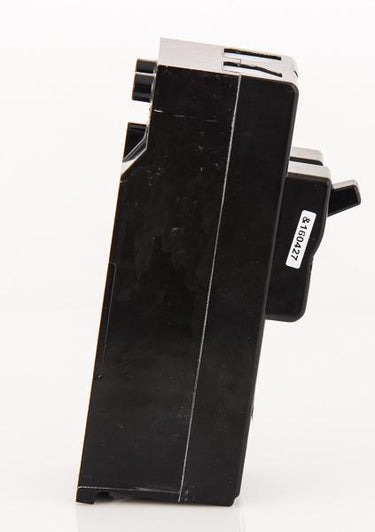

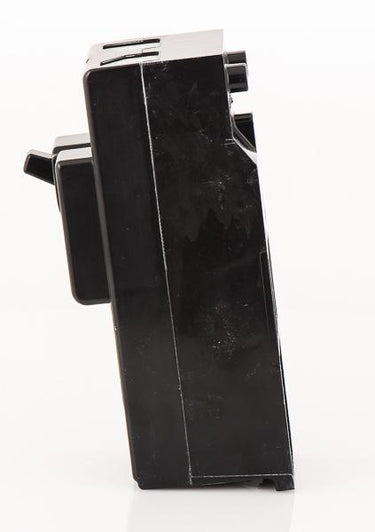

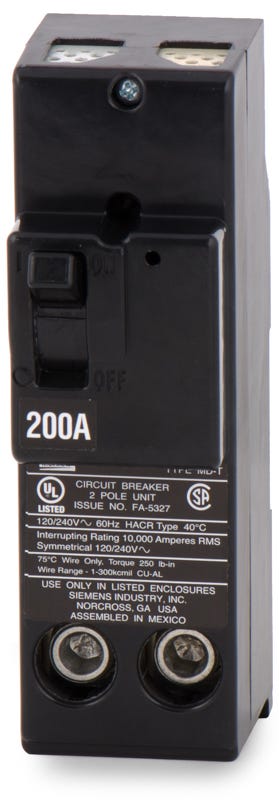

Siemens MPD2200 - 200A 2 Pole Molded Case Circuit Breaker
New
Quantity
Description
Serving as the primary disconnect for residential electrical systems, this 200A component delivers essential overcurrent protection. It mounts seamlessly into compatible Murray and Siemens load centers requiring a plug-on main. Rated for 10kAIC at 120/240VAC, the unit features a common trip mechanism and is HACR rated for HVAC applications. Note that this legacy Murray design has been superseded by the QN2200 for modern installations.Specifications
| Brand | Siemens |
|---|---|
| Part Number | MPD2200 |
| Series | MPD |
| Amperage | 200A |
| Poles | 2 |
| Mounting Style | Plug-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Frame Type | MP |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens Load Centers, Murray Load Centers |
| Wire Gauge | 4 AWG - 300 kcmil (Cu/Al) |
| Max Wire | 300 kcmil |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Padlock Attachment, Shunt Trip |
|---|---|
| Accessories | Lugs Included |
| Standards | UL 489 |
| Approval | UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Common Trip, Main Breaker |
Product FAQs
4 answersWhat is the modern replacement for the MPD2200?
Siemens has superseded the legacy Murray MPD2200 with the QN2200. The QN2200 is the direct, drop-in replacement for modern installations requiring a 200A plug-on main breaker.
Is this breaker compatible with legacy Murray load centers?
Yes. Because Siemens acquired Murray, this breaker is fully compatible with both Siemens and legacy Murray load centers that accept a 200A plug-on main breaker.
How many panel spaces does this breaker occupy?
This breaker requires 4 standard panel spaces in the load center.
Is this breaker HACR rated?
Yes, it is HACR rated, meaning it is approved for use with heating, air conditioning, and refrigeration equipment.
