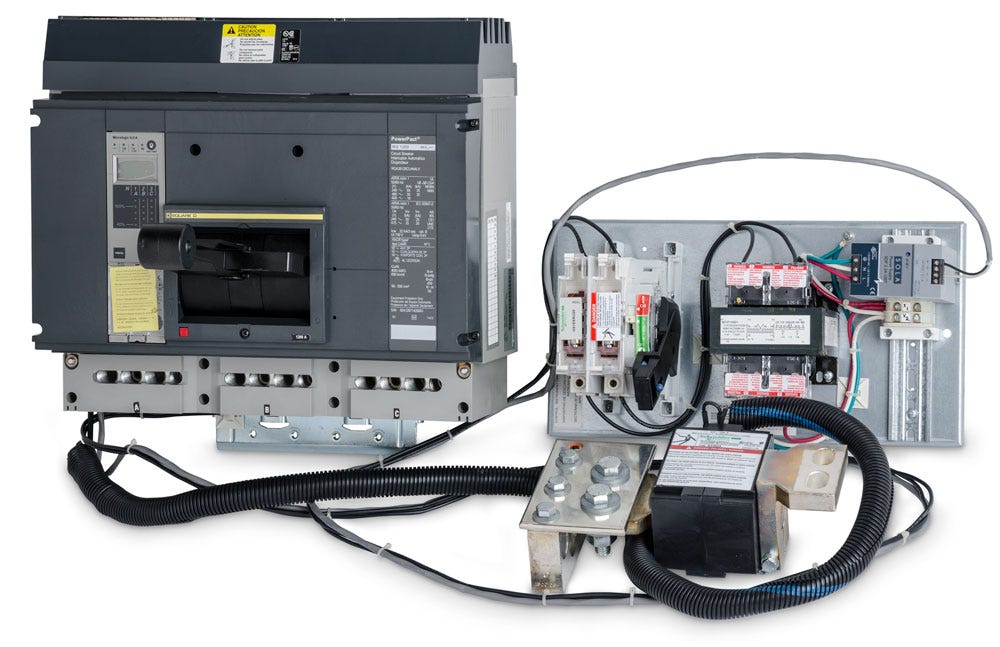

Square D RGA36120CU44ALV Molded Case Circuit Breaker
- 1200A
- 3 Pole
- I-Line
Quantity
Square D RGA36120CU44ALV - 1200A 3 Pole Molded Case Circuit Breaker
New
Quantity
Description
Part of the PowerPacT R-Frame series, the Square D RGA36120CU44ALV is a 1200A, 3-pole molded case circuit breaker designed for robust industrial power systems. It installs into Square D I-Line panelboards and switchboards, utilizing an I-Line mounting style for secure integration. This 100% rated breaker is equipped with a Micrologic 6.0A electronic trip unit, providing adjustable Long-Time, Short-Time, Instantaneous, and Ground-Fault (LSIG) protection. It delivers a 35kAIC rating at 480VAC.Specifications
| Brand | Square D |
|---|---|
| Series | RGA |
| Amperage | 1200A |
| Poles | 3 |
| Mounting Style | I-Line |
| Voltage | 240VAC, 480VAC, 600VAC |
| Phase | 3 |
| AIC Rating | 65kA @ 240VAC, 35kA @ 480VAC, 18kA @ 600VAC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Square D I-Line Panelboards, Square D I-Line Switchboards |
| Wire Gauge | 4 x 3/0 AWG-600 kcmil (Al/Cu) |
| Max Wire | 600 kcmil |
| Min Wire | 3/0 AWG |
| Trip Technology | Electronic Trip |
|---|---|
| Trip Function Code | LSIG |
| Trip Function | Long-Time, Short-Time, Instantaneous, Ground Fault |
| Trip Adjustability | Adjustable |
| Trip Unit Model | MicroLogic 6.0A |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment, Communication Module |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB 1, NOM, UL 489 |
| Approval | CE, CSA, IEC, NOM, UL |
| Temp Rating | -25C to 70C |
| Construction Features | 100% Rated, HACR Rated, True RMS Sensing |
Product FAQs
6 answersWhich Square D panelboards are compatible with the RGA36120CU44ALV circuit breaker?
This 1200A R-frame breaker is designed for use in Square D I-Line power distribution panelboards and switchboards. It requires a bus structure rated to accommodate R-frame breakers, such as the HCR-U series.
What does the U44A in the RGA36120CU44ALV catalog number indicate?
The U44A suffix signifies that the breaker is equipped with a MicroLogic 6.0A (Ammeter) electronic trip unit. This provides adjustable Long-Time, Short-Time, Instantaneous, and Ground-Fault (LSIG) protection, along with integrated current metering capabilities.
Is the RGA36120CU44ALV rated for 100% continuous current?
Yes, the C in the catalog number indicates that this breaker is 100% rated. It can carry its full 1200A continuous current rating without the standard 80% derating, provided it is installed in a properly sized enclosure with appropriately rated conductors.
How many conductors per phase can the RGA36120CU44ALV lugs accept?
The factory-installed mechanical lugs are designed to accept four conductors per phase. They accommodate wire sizes from 3/0 AWG up to 600 kcmil for both aluminum and copper wire.
How does the RGA36120CU44ALV connect to the panelboard bus?
It utilizes the Square D I-Line plug-on mounting system. The line side features plug-on jaws that connect directly to the panelboard bus stack, while the load side uses mechanical lugs for wire termination.
What protection functions are included with the MicroLogic 6.0A trip unit?
The MicroLogic 6.0A provides fully adjustable LSIG protection. This allows you to set the pickup and delay parameters for Long-Time, Short-Time, Instantaneous, and Ground-Fault conditions to ensure proper system coordination.
