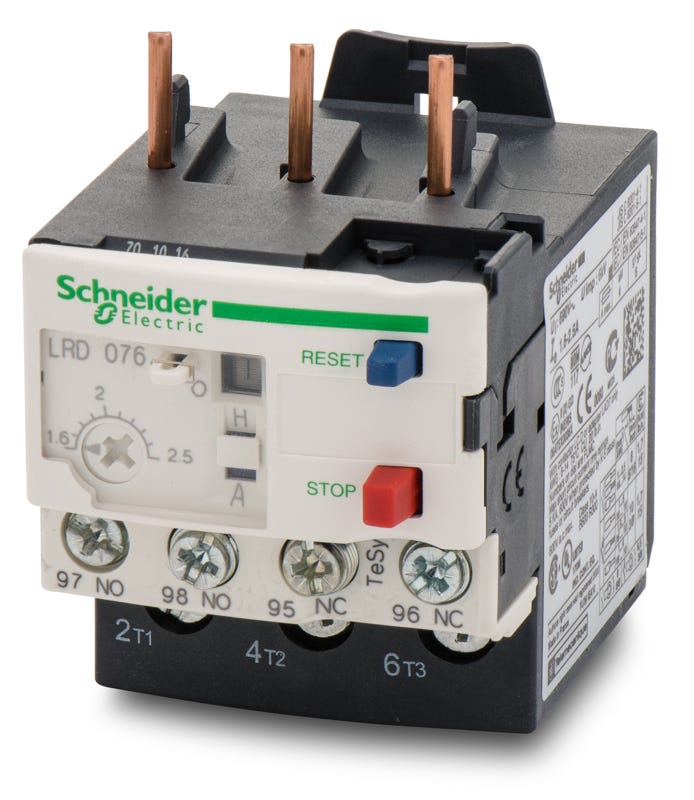

Schneider Electric LRD076 Overload Relay
The Schneider Electric LRD076 is a 3 Pole overload relay with a current rating of 1.6-2.5 Amps and a voltage rating of 690VAC. It has a contact configuration of 1NO, 1NC. The LRD076 is used for LC1D09, LC1D12, LC1D18, LC1D25, LC1D32, LC1D38 contactors.
Specifications
| Amperage | 1.6-2.5 A |
|---|---|
| Voltage | 690VAC |
| Protection | Thermal |
| Poles | 3 |
| Phase | 3 |
|---|
| Terminal Connection | Screw Clamp |
|---|---|
| Length (in) | 2.75 |
| Width (in) | 1.77 |
| Height (in) | 2.60 |
| For Use With | LC1D09, LC1D12, LC1D18, LC1D25, LC1D32, LC1D38 Contactors |
| Contact Configuration | 1NO, 1NC |
|---|
| Approval | EN/IEC, UL, CSA, GB/T, CCC, EAC, BV, RINA, DNV-GL, LROS, ATEX INERIS, UKCA |
|---|---|
| Standards | RoHS, REACh |
| Temperature Rating | -20 to 60 °C |
| Series | LR |
|---|---|
| Brand | Schneider Electric |
| MPN | LRD076 |
| UPC | 785901822691 |
