Siemens 48GC38AA3 Overload Relay
Quantity
Core Specs
See full specs
Siemens 48GC38AA3 Overload Relay
New
Quantity
Description

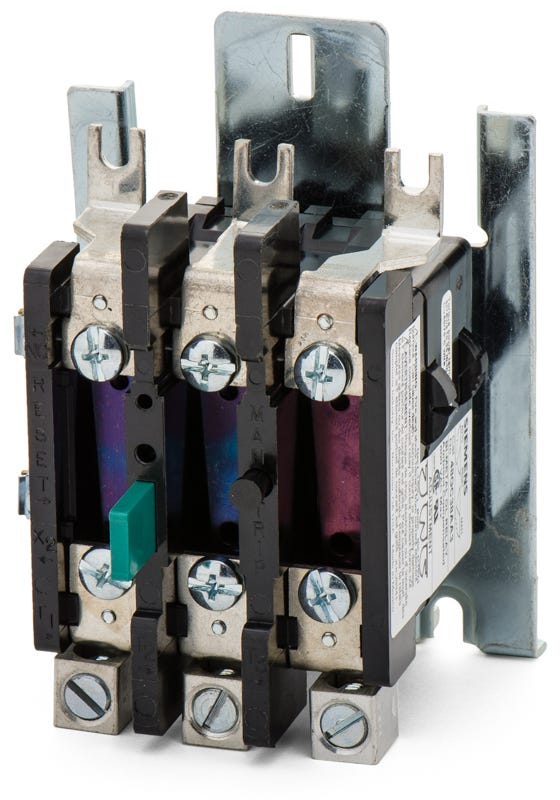

Siemens 48GC38AA3 Overload Relay
The Siemens 48GC38AA3 is a 3 Pole overload relay with a current rating of 30-60 Amps. It has a contact configuration of 1NC. The 48GC38AA3 is used for size 2 or 2 1/2 class 14, 17, 18, 22, 25, 26, 30, 32, 83, 84, 87 starters.
Specifications
| Amperage | 30-60 A |
|---|---|
| Protection | Thermal |
| Poles | 3 |
| Contact Configuration | 1NO |
| Phase | 3 |
|---|
| For Use With | Size 2 or 2 1/2 Class 14, 17, 18, 22, 25, 26, 30, 32, 83, 84, 87 Starters |
|---|
| Series | 48GC |
|---|---|
| Brand | Siemens |
| MPN | 48GC38AA3 |
| UPC | 783087085244 |
