Eaton / Cutler-Hammer BJ2225 Molded Case Circuit Breaker
- 225A
- 2 Pole
- Plug-On
Quantity

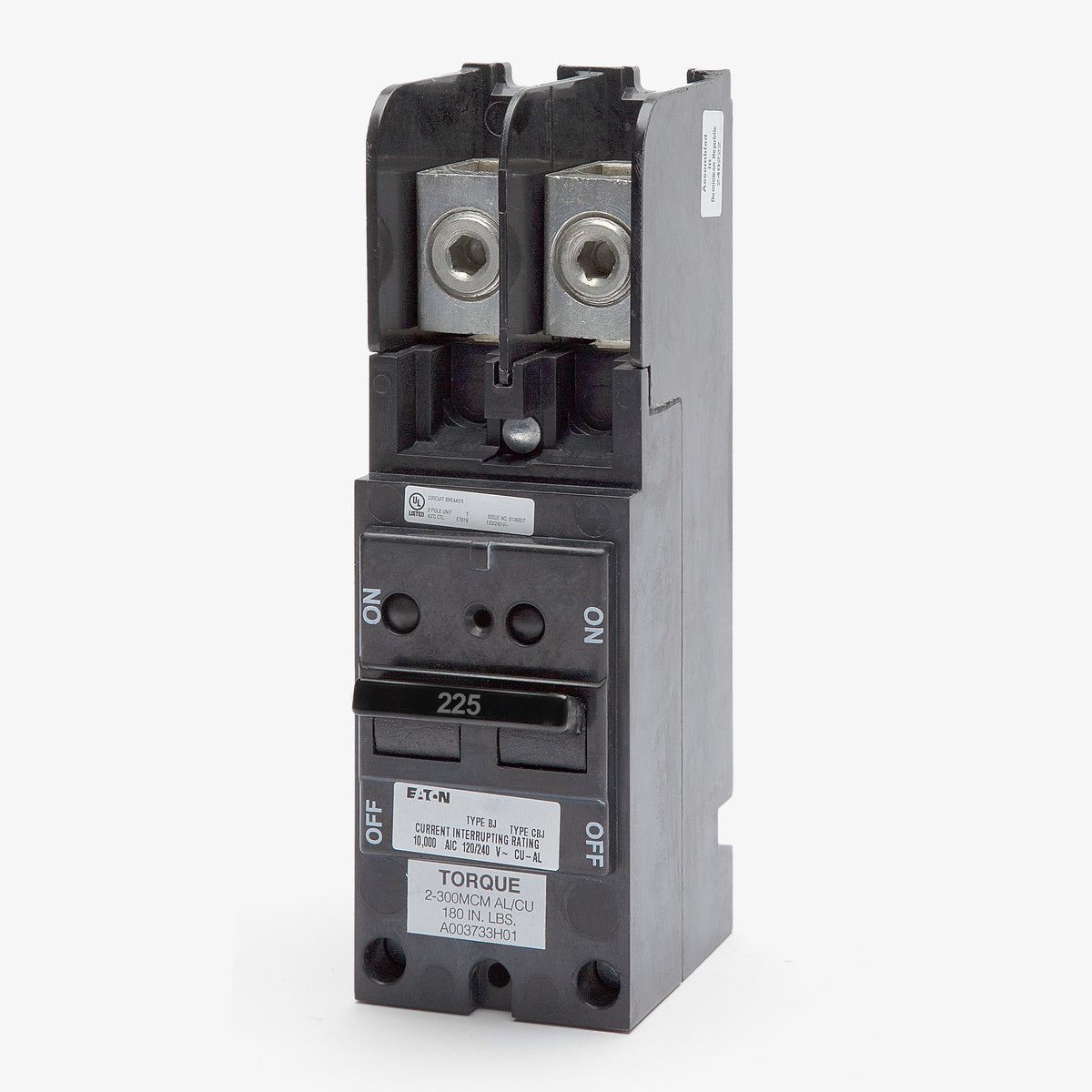

Eaton / Cutler-Hammer BJ2225 - 225A 2 Pole Molded Case Circuit Breaker
New
Quantity
Description
Part of the reliable BR family, this 225A molded case circuit breaker provides high-capacity thermal-magnetic protection. The two-pole Eaton device handles substantial electrical loads in residential environments. Featuring a plug-on configuration, the breaker mounts securely into Eaton Type BR load centers and legacy Westinghouse panelboards. With a 10kAIC capacity at 120/240VAC, the unit includes a common trip mechanism and supports reverse feed applications.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Series | BJ |
| Amperage | 225A |
| Poles | 2 |

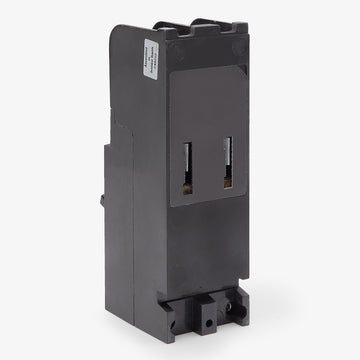

| Mounting Style | Plug-On |
| Voltage | 120/240VAC |
| Phase | 1 |

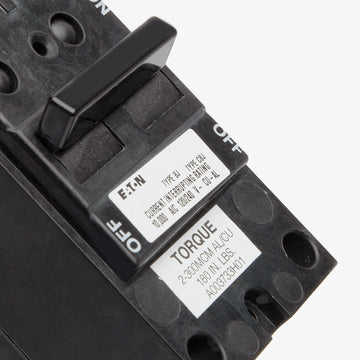

| AIC Rating | 10kA @ 120/240VAC |
| Frame Type | BJ |
|---|---|

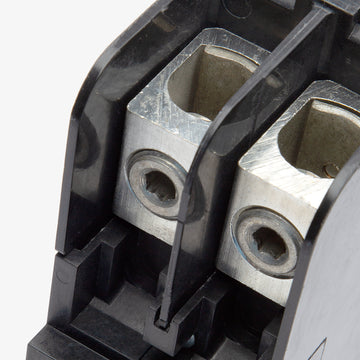

| Terminal Type | Lugs |
| For Use With | Eaton Type BR Load Centers, Legacy Westinghouse/Bryant Load Centers |
| Wire Gauge | 2 AWG - 300 kcmil (Cu/Al) |
| Max Wire | 300 kcmil |
| Min Wire | 2 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Auxiliary Switch, Bell Alarm |
|---|---|
| Accessories | Lugs Included |
| Standards | CSA C22.2 No. 5, Federal Specification W-C375, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | Common Trip, Reverse Feed |
Product FAQs
5 answersHow many panel spaces does the Eaton BJ2225 circuit breaker require?
The BJ2225 requires four 1-inch pole spaces total. It occupies two spaces on the left side of the bus and two spaces on the right side of the bus in the load center.
Can I install the BJ2225 in any Eaton BR load center?
No. Because of its 225A rating and physical size, the BJ2225 requires an Eaton BR or legacy Bryant or Westinghouse load center rated for at least 150 amps.
Do I need a hold-down kit if I use the BJ2225 as a back-fed main breaker?
Yes. When using the BJ2225 as a back-fed main device, safety standards require a dedicated hold-down kit, such as the Eaton BRPHDBJ or BRPHDBJ2, to secure the breaker to the panel bus.
Is the Eaton BJ2225 a direct replacement for the Bryant BJ2225?
Yes. Eaton acquired Cutler-Hammer, Westinghouse, and Bryant. The Eaton BJ2225 is the exact, manufacturer-approved replacement for legacy Bryant and Westinghouse BJ2225 circuit breakers.
What is the difference between the Eaton BJ2225 and the BJH2225?
The primary difference is the interrupting rating and physical size. The BJ2225 is rated for 10kAIC and requires four panel spaces. The BJH2225 is rated for 22kAIC and requires six panel spaces.
