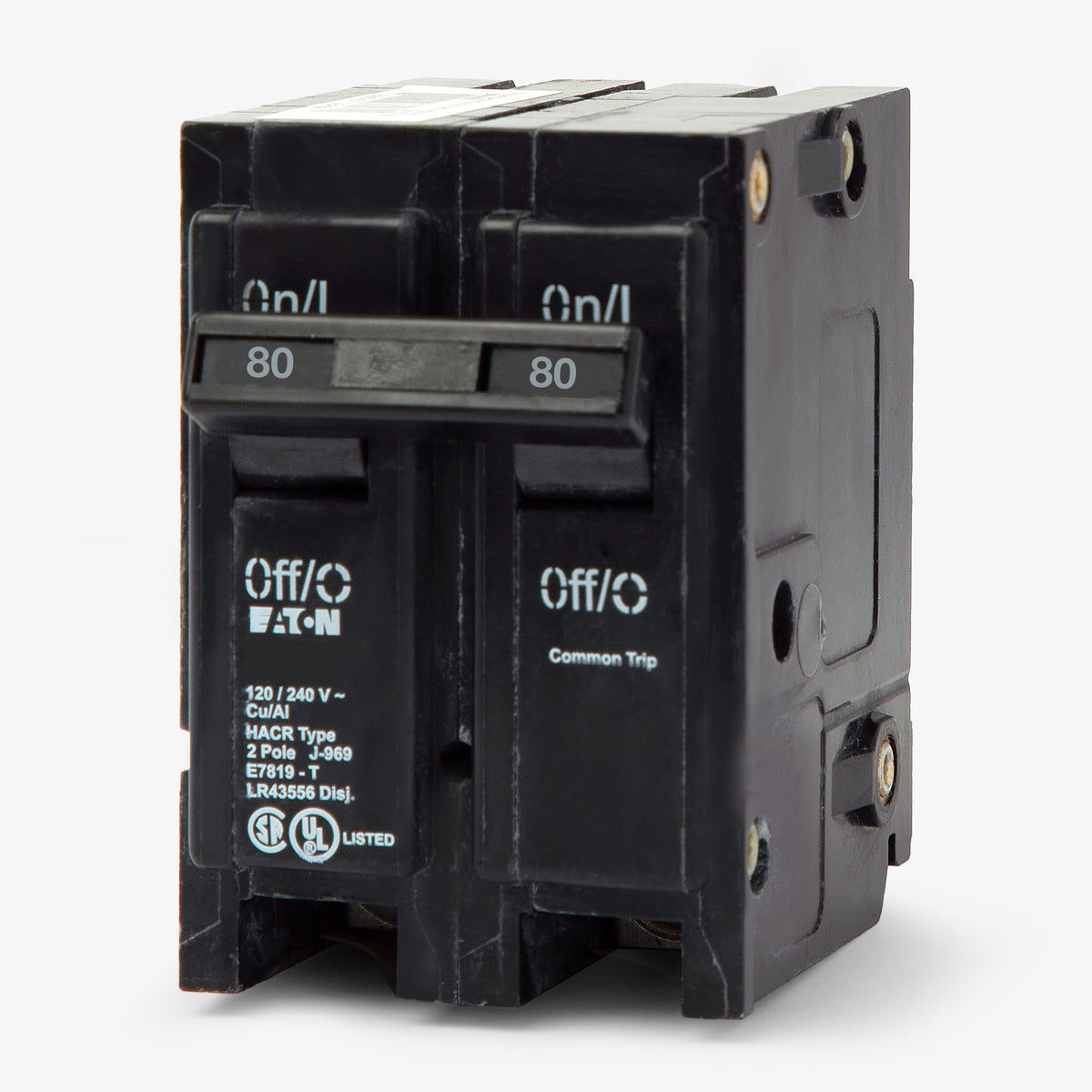

Eaton / Cutler-Hammer BRHH280 Miniature Circuit Breaker
- 80A
- 2 Pole
- Plug-On
Eaton / Cutler-Hammer
BRHH280
Miniature Circuit Breaker
Brand
Eaton / Cutler-Hammer
SKU
BRHH280
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Eaton / Cutler-Hammer BRHH280 - 80A 2 Pole Miniature Circuit Breaker
New
Quantity
Similar Items
70A 2 Pole Miniature Circuit Breaker
100A 2 Pole Miniature Circuit Breaker
60A 2 Pole Miniature Circuit Breaker
Description

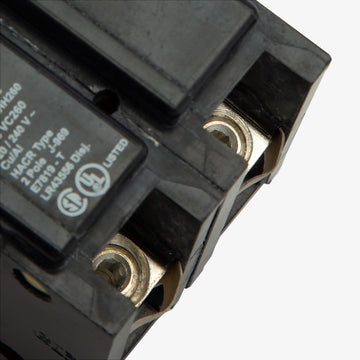

Engineered for high-fault environments, the Eaton BRHH280 provides reliable thermal-magnetic protection for residential and commercial branch circuits. Designed for compatibility, this 80A unit mounts into Eaton Type BR load centers and subpanels. The box lug terminals accommodate #4 to 1/0 AWG copper or aluminum wiring for flexible installation. Rated at 42kAIC, this breaker ensures enhanced short-circuit protection and carries an HACR rating for heating and cooling applications.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | BRHH280 |
| Series | BRHH |
| Amperage | 80A |
| Poles | 2 |

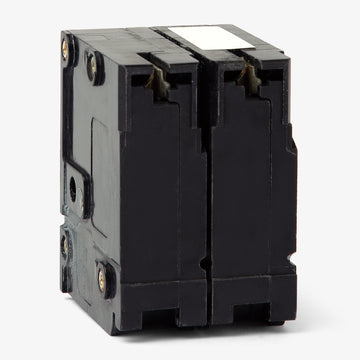

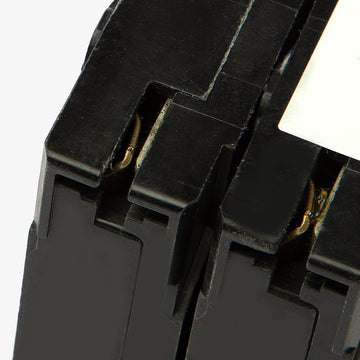

| Mounting Style | Plug-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 42kA @ 120/240VAC |
| Frame Type | BR |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | Eaton Type BR Load Centers |
| Wire Gauge | 4 AWG - 1/0 AWG (Cu/Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Padlock Attachment, Handle Tie |
|---|---|
| Standards | Federal Specification W-C376, UL 489 |
| Approval | UL |
| Temp Rating | 60C, 75C |
| Construction Features | Common Trip, High Interrupting Capacity, HACR Rated |
Product FAQs
6 answersWhat load centers are compatible with the BRHH280 circuit breaker?
The BRHH280 is designed specifically for use in Eaton Type BR load centers. It is also backward compatible with legacy Cutler-Hammer and Bryant panels that accept Type BR plug-on breakers.
What is the difference between the BR280 and the BRHH280?
While both are 80-amp, 2-pole Type BR breakers, the BRHH280 features a high interrupting rating of 42kAIC at 240V. The standard BR280 has a 10kAIC rating, and the BRH280 has a 22kAIC rating.
Can I use the Eaton BRHH280 to replace a Bryant BRHH280?
Yes. Eaton acquired Bryant and Cutler-Hammer, and they share the Type BR product line. The Eaton BRHH280 is the direct, UL-listed replacement for older Bryant or Cutler-Hammer BRHH280 breakers.
Will the Eaton BRHH280 fit in a Square D or Siemens panel?
No. Eaton Type BR breakers are proprietary and not interchangeable with Square D, Siemens, or other competitor panels. They must be installed in a compatible Eaton, Cutler-Hammer, or Bryant Type BR load center to maintain UL listing and code compliance.
What type of wire can I use with the BRHH280?
The box lug terminals on this breaker are rated for both copper and aluminum conductors. They accept wire gauges ranging from 4 AWG up to 1/0 AWG.
What type of protection does the BRHH280 provide?
It features a thermal-magnetic trip mechanism that provides both long-time protection against sustained overloads and instantaneous protection against severe short circuits.
