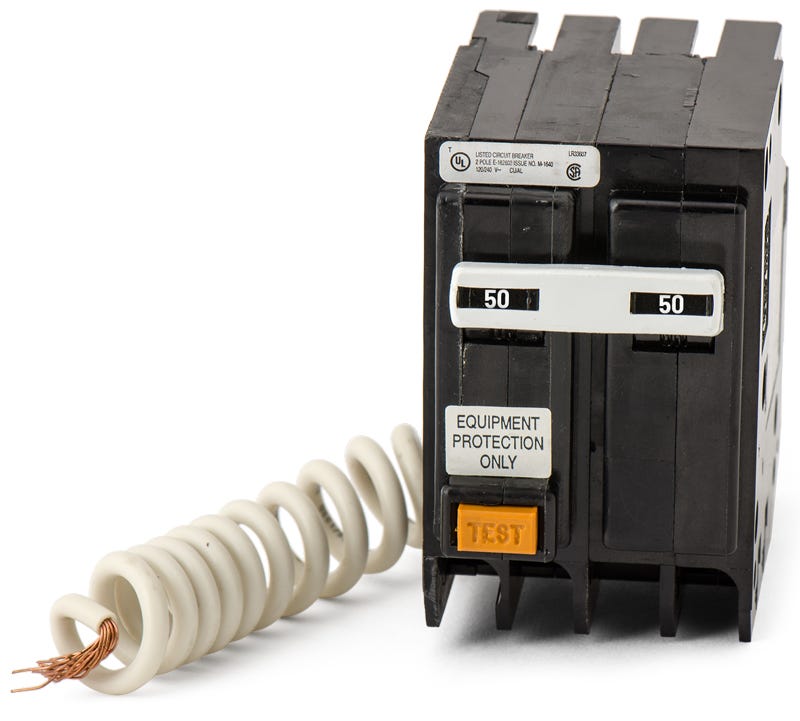

Eaton / Cutler-Hammer GFEP250 GFEP Miniature Circuit Breaker
- 50A
- 2 Pole
- Plug-On
Eaton / Cutler-Hammer
GFEP250
GFEP Miniature Circuit Breaker
Brand
Eaton / Cutler-Hammer
SKU
GFEP250
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Eaton / Cutler-Hammer GFEP250 - 50A GFEP Miniature Circuit Breaker
New
Quantity
Similar Items
40A GFEP Miniature Circuit Breaker
20A GFEP Miniature Circuit Breaker
15A GFEP Miniature Circuit Breaker
Description
Rated for 50 amps, the Eaton GFEP250 delivers specialized 30mA ground fault equipment protection (GFEP). This two-pole breaker is specifically calibrated to protect machinery and heating equipment from electrical damage without the nuisance tripping associated with highly sensitive 5mA personnel GFCIs. Designed for Eaton Type BR load centers, it features a simple plug-on mounting style and a pigtail neutral connection. It provides 10 kAIC interrupting capacity and is replaced by the BRN250EP.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | GFEP250 |
| Series | GFEP |
| Amperage | 50A |
| Poles | 2 |
| Mounting Style | Plug-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Frame Type | GFEP |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | Type BR Load Centers |
| Wire Gauge | 14-4 AWG |
| Max Wire | 4 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LIG |
| Trip Function | Long-Time, Instantaneous, Ground Fault |
| Trip Adjustability | Fixed |
| Special Classification | GFEP |
|---|---|
| Available Options | Padlock Attachment |
| Accessories | Pigtail Neutral |
| Standards | CSA C22.2 No. 5, Federal Spec W-C375, UL 489 |
| Approval | CSA, UL |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated, Common Trip, Visual Trip Indicator |
Product FAQs
7 answersWhat load centers are compatible with the GFEP250?
The GFEP250 is designed for use in Eaton and Cutler-Hammer Type BR load centers. It requires a plug-on connection and occupies two adjacent 1-inch spaces in the panel.
What is the ground fault trip level for the GFEP250?
This Ground Fault Equipment Protector (GFEP) is calibrated to trip at 30mA. It is designed to protect equipment like heat trace cables or snow melting systems from ground faults, rather than providing the 5mA personnel protection of a standard GFCI.
Can the GFEP250 be used for a hot tub or pool pump?
No. The GFEP250 is a 30mA equipment protection breaker. Hot tubs, pool pumps, and spas require a 5mA Class A GFCI breaker for personnel protection to comply with National Electrical Code (NEC) requirements.
Does the GFEP250 require a neutral connection?
Yes, it features a pigtail neutral. The attached coiled white wire must be connected directly to the neutral bar in your load center for the equipment protection circuitry to function correctly.
Can I install the GFEP250 in a Square D or Siemens panel?
No, the GFEP250 is exclusively UL listed for Eaton and Cutler-Hammer Type BR load centers. Installing it in panels from other manufacturers like Square D or Siemens violates its listing and compromises safety.
Is the Cutler-Hammer GFEP250 the same as the Eaton GFEP250?
Yes. Eaton acquired Cutler-Hammer and continues to manufacture the Type BR line. A GFEP250 breaker branded as Cutler-Hammer is functionally identical and interchangeable with one branded as Eaton.
What type of wiring is accepted by the GFEP250 terminals?
The box lugs accept 14 AWG to 4 AWG conductors and are rated for both copper and aluminum wire. When terminating aluminum conductors, always apply an approved oxide inhibitor to prevent corrosion.
