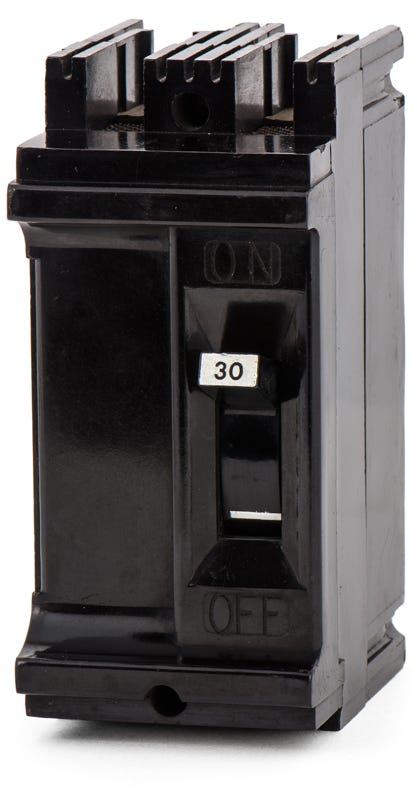

Federal Pacific NES2230 Molded Case Circuit Breaker
- 30A
- 2 Pole
- Plug-On
Quantity
Federal Pacific NES2230 - 30A 2 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
Description
Maintaining legacy power distribution networks requires precise components like this 30A two-pole breaker. It serves commercial and industrial facilities utilizing Federal Pacific NE-S frame panelboards. As a dedicated replacement part, it bypasses the complexity of retrofitting older enclosures. The plug-on mounting style ensures a secure fit into existing NE-S chassis configurations. With an 18kAIC rating at 240VAC and 5kA at 250VDC, it handles demanding loads.Specifications
| Brand | Federal Pacific |
|---|---|
| Part Number | NES2230-R |
| Series | NES |
| Amperage | 30A |
| Poles | 2 |
| Mounting Style | Plug-On |
| Voltage | 240VAC, 250VDC |
| Phase | 1 |
| AIC Rating | 18kA @ 240VAC, 5kA @ 250VDC |
| Frame Type | NES |
|---|---|
| Terminal Type | Lugs |
| For Use With | Federal Pacific NE-S Frame Panelboards |
| Wire Gauge | 14-10 AWG |
| Max Wire | 10 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Undervoltage Release, Bell Alarm |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | UL 489, NEMA AB 1 |
| Approval | UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Common Trip, Reverse Feed |
Product FAQs
6 answersWhat type of panelboard is the NES2230 designed for?
The NES2230 is a legacy N-Frame molded case circuit breaker built for commercial power distribution. It serves as an exact replacement component for older Federal Pacific NE-S frame panelboards, bypassing the need for complex retrofits.
Is there a modern replacement available for the NES2230?
Yes. Facilities transitioning to newer hardware can utilize the Connecticut Electric UBIF230N as a verified substitute. It provides the same 30A, 2-pole configuration while preserving the original N-Frame layout in traditional Stab-Lok panelboards.
Does the NES2230 require a mounting hardware kit?
No. The NES2230 features a stab-type plug-on connection that fits securely into existing NE-S chassis configurations, allowing for straightforward installation without additional adapter kits.
Does the NES2230 provide both overload and short-circuit protection?
Yes. It is equipped with a fixed thermal-magnetic trip unit. The thermal component provides Long-Time protection against sustained overloads, while the magnetic component delivers Instantaneous protection to quickly clear severe short circuits.
Can the NES2230 be used in DC applications?
Yes. In addition to its standard 240V AC rating, this breaker is rated for up to 250V DC with an interrupting capacity of 5kAIC. This makes it suitable for specific direct current control or distribution circuits.
Is the NES2230 suitable for HVAC equipment?
Yes. This breaker is HACR rated, making it approved for use with dedicated heating, air conditioning, and refrigeration equipment circuits that require a 30A, 2-pole breaker.
