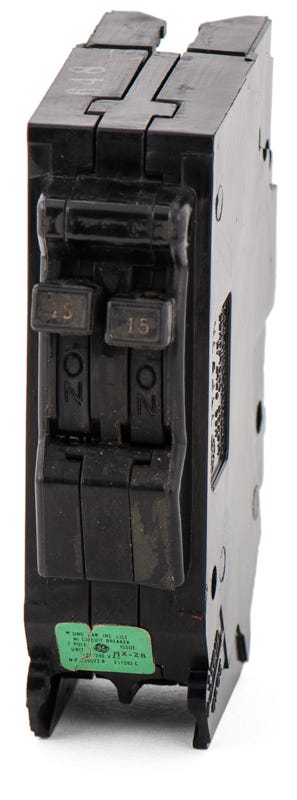

ABB / General Electric TR1515 15/15A Tandem Molded Case Circuit Breaker
- 15/15A
- 2 Pole
- Plug-On
Quantity
ABB / General Electric TR1515 - 15/15A Tandem Molded Case Circuit Breaker
Re-Certified
Quantity
Description
Delivering two 15-amp circuits in a single one-inch space, the TR1515 tandem breaker is ideal for residential capacity expansion. It provides a practical solution for adding circuits without a full panel upgrade. This non-CTL plug-on unit mounts into older GE and PowerMark Gold load centers. It replaces legacy TR series breakers and is superseded by the THQLT1515. Rated 10kAIC at 120/240V, it features thermal-magnetic trip technology and is HACR and SWD rated.Specifications
| Brand | ABB / General Electric |
|---|---|
| Part Number | TR1515-R |
| Series | TR |
| Amperage | 15/15A |
| Poles | 2 |
| Mounting Style | Plug-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Terminal Type | Box Lugs |
|---|---|
| For Use With | GE Load Centers, PowerMark Gold Load Centers |
| Wire Gauge | 14-8 AWG (Cu), 12-8 AWG (Al) |
| Max Wire | 8 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Special Classification | Tandem |
|---|---|
| Standards | UL 489, HACR, SWD |
| Approval | UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Tandem |
Product FAQs
5 answersCan I use a GE THQP breaker as a direct replacement for the TR1515?
No. While both are space-saving breakers, the TR1515 is a 1-inch wide tandem breaker, whereas the THQP series consists of 1/2-inch wide breakers. They have different mounting footprints and cannot be used interchangeably in the same panel slots.
Is the GE TR1515 a CTL or non-CTL breaker?
The TR1515 is a non-CTL (Circuit Total Limiting) tandem breaker. It lacks a rejection clip, allowing it to be installed in older GE load centers that do not have notched bus bars for CTL breakers.
How many circuits does the TR1515 provide per panel space?
As a tandem breaker, the TR1515 provides two independent 15-amp, 120V single-pole circuits while occupying only a single 1-inch space in a compatible GE or PowerMark Gold load center.
Can I use the TR1515 to supply a 240V load or a multi-wire branch circuit?
No. The TR1515 is a tandem breaker that provides two independent 120V circuits on the same phase. It does not have a common trip mechanism and cannot safely supply 240V loads or multi-wire branch circuits.
Is the GE TR1515 still in active production?
The GE TR1515 is an obsolete circuit breaker and is no longer manufactured by ABB / General Electric. It is typically sourced as a direct replacement to maintain older, non-CTL GE load centers without upgrading the entire panel.
