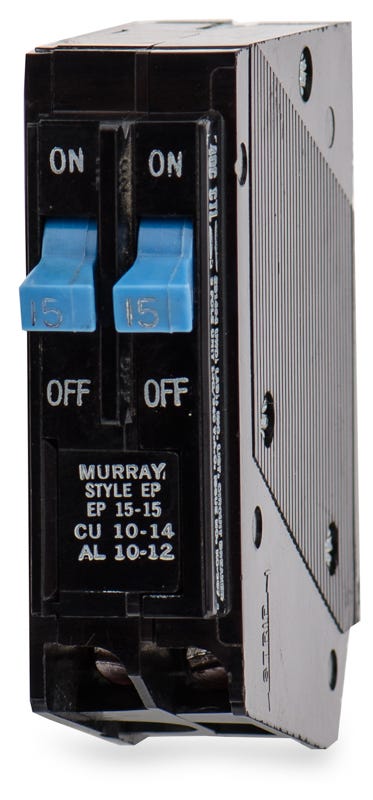

Siemens / Murray EP1515 15/15A Tandem Miniature Circuit Breaker
- 15/15A
- 1 Pole
- Plug-On
Quantity
Siemens / Murray EP1515 - 15/15A Tandem Miniature Circuit Breaker
Re-Certified
Quantity
Description
Built for residential applications, the Siemens EP1515 twin breaker delivers two 15A single-pole circuits while occupying just one inch of panel space. It provides an essential component for expanding capacity in older, non-CTL Murray and Siemens load centers. The plug-on design mounts into legacy enclosures seamlessly. As an exact cross-reference for MP1515 and Q1515 SKUs, it restores functionality to aging systems. Delivering 10 kAIC at 120/240VAC, this unit handles standard HVAC loads.Specifications
| Brand | Siemens / Murray |
|---|---|
| Part Number | EP1515-R |
| Series | EP |
| Amperage | 15/15A |
| Poles | 1 |
| Mounting Style | Plug-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Terminal Type | Box Lugs |
|---|---|
| For Use With | Murray Load Centers, Siemens Load Centers |
| Wire Gauge | 14-8 AWG (Cu), 12-8 AWG (Al) |
| Max Wire | 8 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Special Classification | Tandem |
|---|---|
| Available Options | Padlock Attachment |
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | Non-CTL, Duplex, HACR Rated, SWD Rated, Insta-Wire |
Product FAQs
5 answersCan I install the Murray EP1515 in a Siemens load center?
Yes. Siemens acquired the Murray brand, and many Siemens panels are UL-listed to accept Murray breakers. You must check your specific panel label or the UL compatibility letter to confirm that Murray EP or MP types are permitted in your enclosure.
Is the EP1515 a CTL or non-CTL circuit breaker?
The EP1515 is a non-CTL (non-Circuit Total Limiting) breaker. It lacks a rejection clip, which allows it to be installed in older legacy panels that predate CTL requirements and do not feature notched busbars.
What are the equivalent replacement part numbers for the EP1515?
This breaker serves as an exact cross-reference and replacement for the Murray MP1515 and Siemens Q1515 tandem breakers.
How many circuits does this breaker provide per panel space?
As a tandem breaker, it delivers two independent 15A single-pole circuits while occupying only one standard 1-inch slot in your load center.
Does this breaker provide AFCI or GFCI protection?
No. The EP1515 is a standard thermal-magnetic breaker providing long-time and instantaneous (LI) trip functions for overload and short-circuit protection. It does not include arc-fault or ground-fault circuitry.
