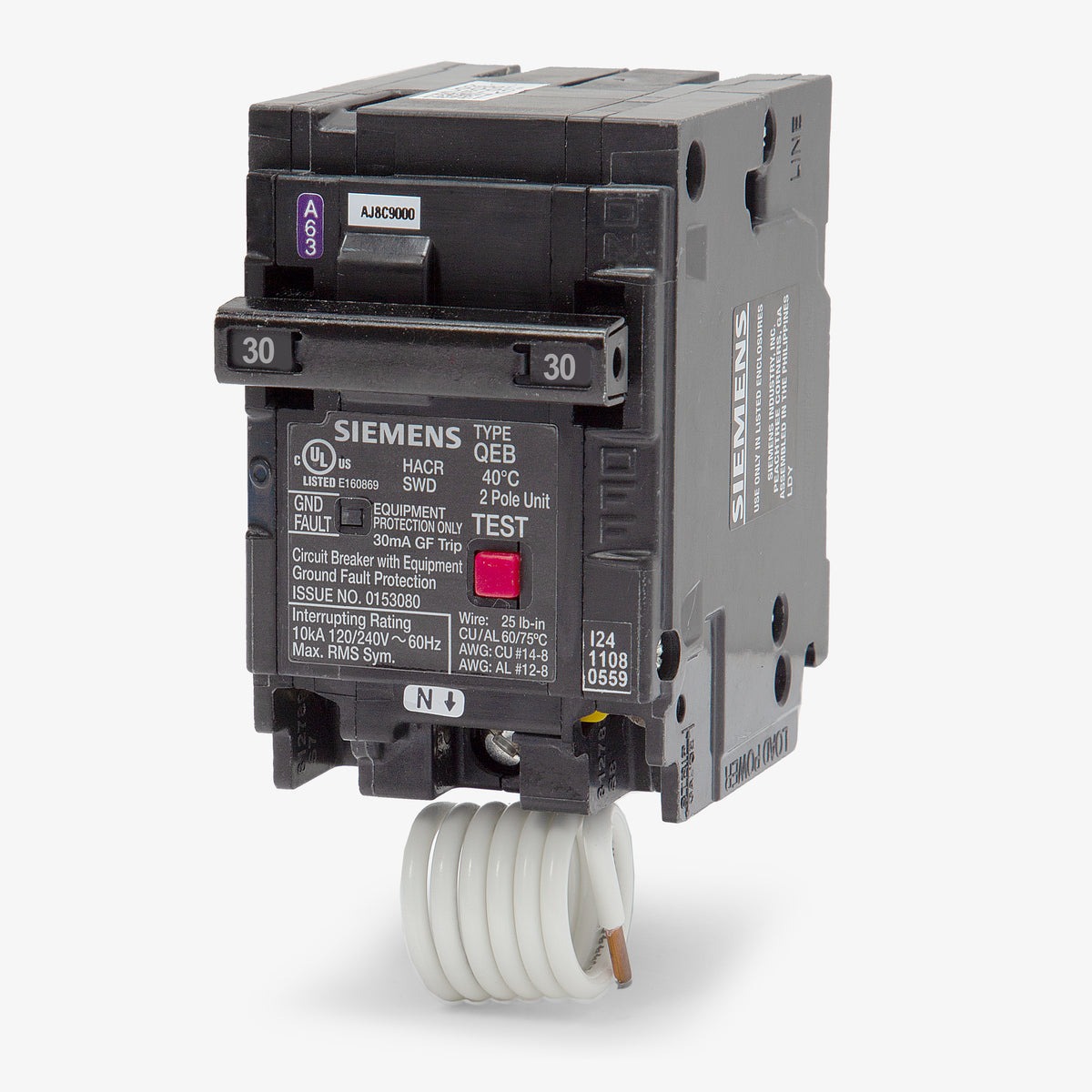

Siemens Q230EG GFEP Miniature Circuit Breaker
- 30A
- 2 Pole
- Plug-On
Quantity
Siemens Q230EG - 30A GFEP Miniature Circuit Breaker
New
Quantity
Description
Rated for 30 amps at 120/240VAC, the Siemens Q230EG delivers reliable 30mA equipment ground-fault protection. This two-pole GFEP breaker is ideal for safeguarding snow-melting equipment and well pumps where a 5mA personnel GFCI might experience nuisance tripping. Designed for plug-on installation, it fits seamlessly into Siemens load centers and replaces the older QE230 model. The thermal-magnetic breaker features a 10kAIC rating, pigtail neutral connection, and self-test capability.Specifications
| Brand | Siemens |
|---|---|
| Series | QEB |
| Amperage | 30A |
| Poles | 2 |
| Mounting Style | Plug-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Terminal Type | Box Lugs |
|---|---|
| For Use With | Siemens Load Centers |
| Wire Gauge | 14-6 AWG (Cu), 12-6 AWG (Al) |
| Max Wire | 6 AWG |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LIG |
| Trip Function | Long-Time, Instantaneous, Ground Fault |
| Trip Adjustability | Fixed |
| Special Classification | GFEP |
|---|---|
| Available Options | Padlock Attachment |
| Accessories | Pigtail Neutral |
| Standards | CSA C22.2 No. 5, HACR, UL 489, UL 943 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Self-Test, Visual Trip Indicator |
Product FAQs
4 answersWhich load centers are compatible with the Q230EG breaker?
This plug-on breaker is designed for use in Siemens EQ, Ultimate, ES, and PL series load centers. It is also compatible with older ITE and Murray panels that accept standard 1 inch QP or MP-T type breakers.
What is the difference between this GFEP breaker and a standard GFCI breaker?
The Q230EG is a Ground Fault Equipment Protection (GFEP) breaker with a 30mA trip threshold, designed to protect machinery and heat trace cables from damaging line to ground faults. Standard Class A GFCI breakers have a highly sensitive 5mA trip threshold intended for personnel protection.

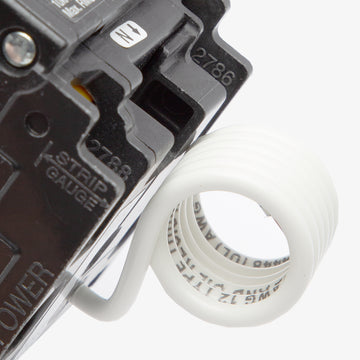

How do I wire the pigtail neutral on this breaker?
The white pigtail wire must be connected directly to the neutral bus bar in your load center. This connection is required to power the internal ground fault circuitry, even if your 240V load does not utilize a load neutral.
Can the Q230EG replace older Siemens equipment protection breakers?
Yes, the Q230EG is the direct replacement for the legacy Siemens QE230. It is also UL listed for use in legacy Murray load centers that require MP-T type breakers.
