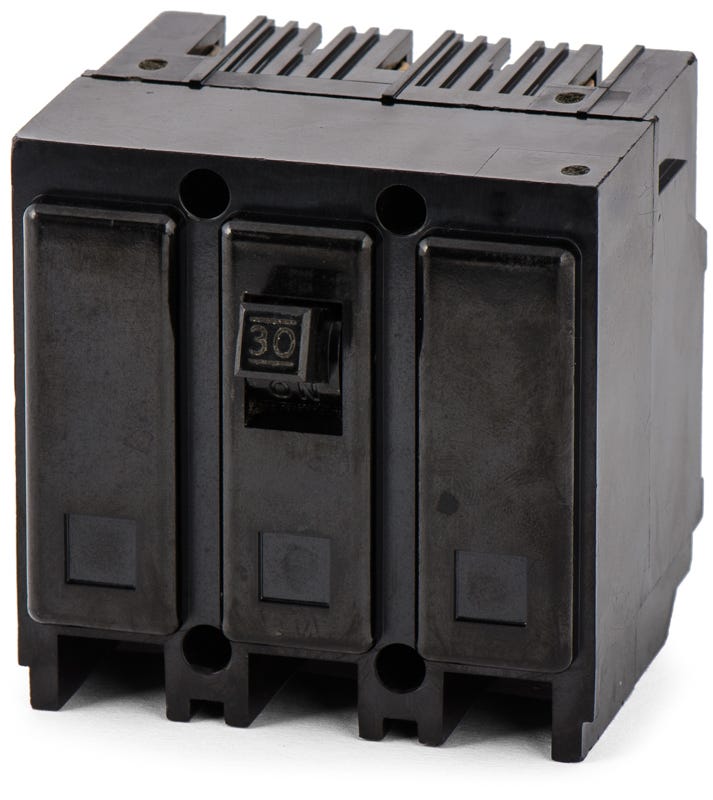

Eaton / Westinghouse HQNP3030 Miniature Circuit Breaker
- 30A
- 3 Pole
- Plug-On
Quantity
Eaton / Westinghouse HQNP3030 - 30A 3 Pole Miniature Circuit Breaker
Re-Certified
Quantity
Description
Built for commercial and industrial environments, the Eaton HQNP3030 is a 3-pole, 30A miniature circuit breaker. It delivers dependable thermal-magnetic protection for 240VAC electrical systems. Designed to fit legacy Westinghouse and Cutler-Hammer Type P and PL panelboards, this plug-on breaker provides a seamless replacement solution. It is cross-referenced to the newer HQP3030. With a 10kAIC interrupting capacity and HACR rating, it handles demanding loads safely.Specifications
| Brand | Eaton / Westinghouse |
|---|---|
| Part Number | HQNP3030-R |
| Series | HQNP |
| Amperage | 30A |
| Poles | 3 |
| Mounting Style | Plug-On |
| Voltage | 240VAC |
| Phase | 3 |
| AIC Rating | 10kA @ 240VAC |
| Terminal Type | Box Lugs |
|---|---|
| For Use With | Westinghouse/Eaton Quicklag Panelboards (Type P, PL) |
| Wire Gauge | 14-4 AWG (Cu/Al) |
| Max Wire | 4 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Auxiliary Switch |
|---|---|
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Common Trip |
Product FAQs
5 answersWhich panelboards are compatible with the HQNP3030 circuit breaker?
This breaker is designed specifically for use in legacy Westinghouse and Cutler-Hammer Type P and Type PL Quicklag panelboards.
What is the modern replacement for the legacy HQNP3030?
The Eaton HQP3030 is the current direct cross-reference. It serves as a drop-in replacement for the older Westinghouse and Cutler-Hammer HQNP3030 models in Type P and PL panels.
Can this breaker be used for heating and cooling equipment?
Yes, the HQNP3030 is HACR rated, meaning it is certified for use with heating, air conditioning, and refrigeration systems that require this specific safety designation.
Does this breaker have an adjustable trip setting?
No, it features a fixed thermal-magnetic trip unit with factory-set long-time and instantaneous (LI) protection.
What type of wiring is compatible with the HQNP3030 terminals?
The breaker is equipped with box lugs that accept both copper (Cu) and aluminum (Al) conductors ranging from 14 AWG to 4 AWG.
