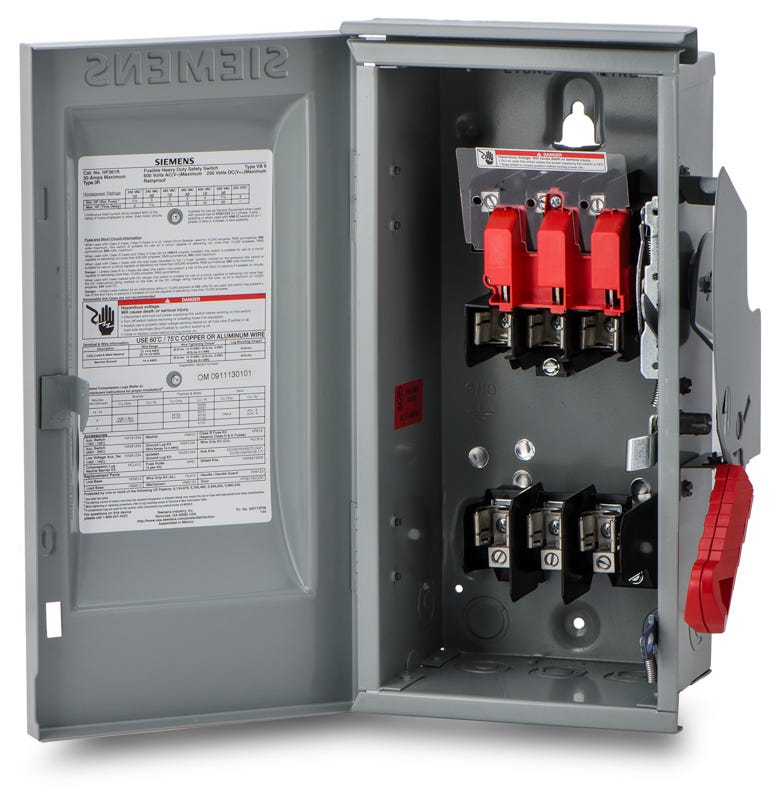

Siemens HF361 Safety Switch
Quantity
Siemens HF361 Safety Switch
New
Quantity
Description
HF361 - Siemens / ITE Safety Switch
Siemens safety switch three pole and three wire 600 ampere. This heavy duty indoor safety switch compact easy to install fusible switch style no neutral and single throw heavy duty class H/J/K/R time delay fuse.
Specification :
• Manufacturer : Siemens
• Cat. No. : HF361
• Alternate Part No. : HF-361
• UPC : 783643151000
• Heavy Duty Safety
• 480/600 V Ac Voltage
• 250 V Dc Voltage
• 30 Ampere
• Power Rating 3 Hp At 480/600 Vac 1 Phase 5 Hp At 480 Vac 3 Phase 7-1/2 Hp At 600 Vac 3 Phase (Standard)
• 7 1/2 Hp At 480 Vac 1 Phase 15 Hp At 480 Vac 3 Phase 10 Hp At 600 Vac 1 Phase 20 Hp At 600 Vac 3 Phase (Maximum For Time Delay Fuse)
• 5 Hp At 250 Vdc
• 3 Pole
• Configuration : Single
• 3 Wire
• Class H/J/K/R Time Delay Fuse
• Fusible Fuse
• No Neutral
• Nema 1
• Size 9.01 Inch W X 10.17 Inch D X 15.45 Inch H
• Approval Ul
• Speedfax[T] Brand
• Hf Model
• Authentic ITE Siemens Product.
Specifications
| Duty Rating | Heavy Duty |
|---|---|
| Fusibility | Fusible |
| NEMA Rating | Indoor |
| Brand | Siemens |
|---|---|
| MPN | HF361 |
| UPC | 783643151000 |
