Schneider Electric XB4BT845 Push Button

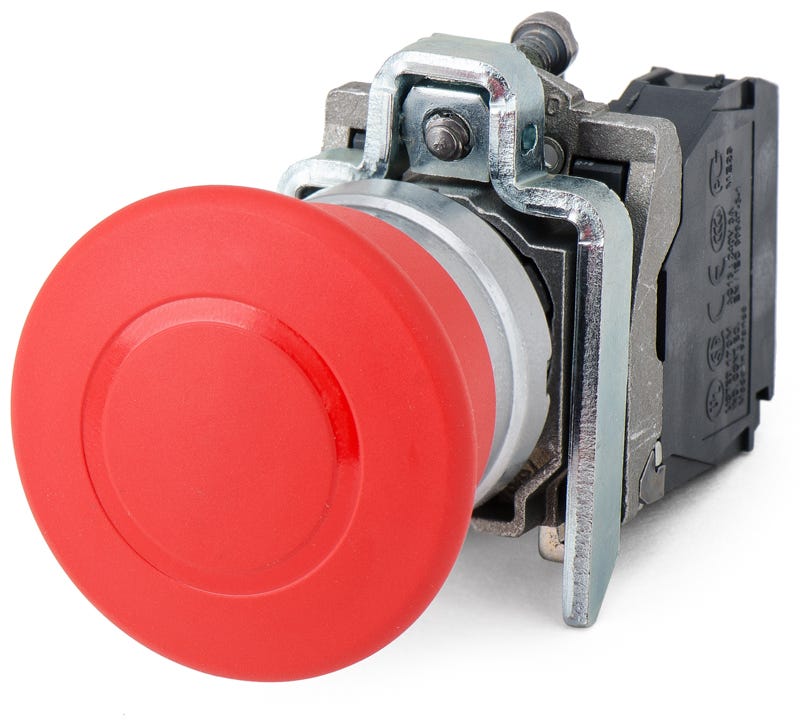

The Schneider Electric XB4BT845 is a push button with a current rating of 10 Amps and a voltage rating of 600VAC/VDC. It has a screw clamp terminal connection and features with a maintained action. The XB4BT845 has a panel mounting type.
Specifications
| Amperage | 10 A |
|---|---|
| Voltage | 600VAC |
| Series | XB4 |
| Poles | 2 |
| Mounting Type | Panel |
|---|---|
| Terminal Connection | Screw Clamp |
| Length (in) | 3.23 |
| Width (in) | 1.57 |
| Height (in) | 1.85 |
| Actuator Type | Mushroom |
|---|---|
| Action | Maintained |
| Contact Configuration | 1NO, 1NC |
| Approval | CE, UL, CSA, EN, IEC, JIS, Lloyd, DNV, NEMA, CCC, GOST |
|---|---|
| NEMA Rating | 1, 12, 13, 2, 3, 4, 4X |
| Standards | REACH, RoHS, WEEE |
| Temperature Rating | -40 to 158 °F |
| Brand | Schneider Electric |
|---|---|
| Color | Red |
| MPN | XB4BT845 |
| UPC | 785901381020 |
