Square D 9001BW92Y Pendant Station
Quantity
Core Specs
See full specs
Square D 9001BW92Y Pendant Station
New
Quantity
Description
Square D 9001BW92Y Pendant Station

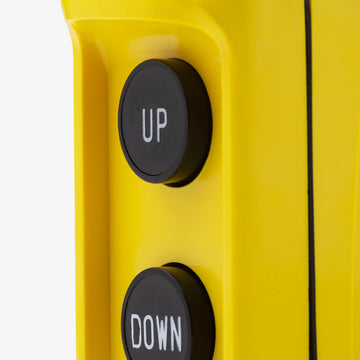

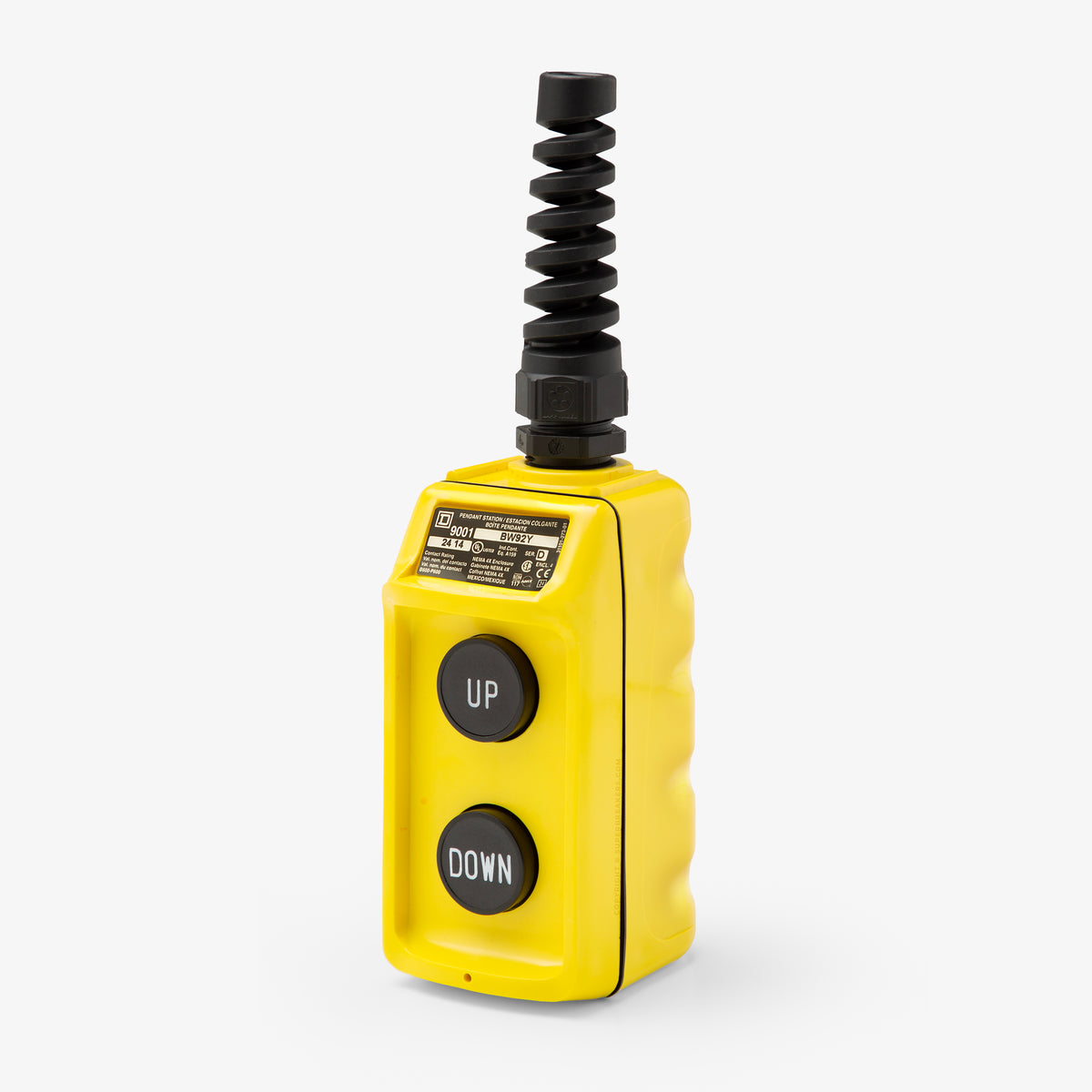

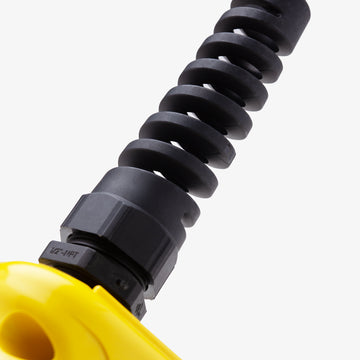

The Square D 9001BW92Y is a pendant station with a current rating of 5 Amps and a voltage rating of 600VAC. It features with a maintained/momentary action. The 9001BW92Y has a contact configuration of 2NO.
Specifications
| Amperage | 5 A |
|---|---|
| Voltage | 600VAC |
| Series | 9001BW |
| For Use With | Control Station |
| Length (in) | 2.94 |
|---|---|
| Width (in) | 2.19 |
| Height (in) | 4.69 |
| Action | Maintained/Momentary |
|---|---|
| Contact Configuration | 2NO |
| Approval | CE, UL, CSA |
|---|---|
| NEMA Rating | 1, 3, 3R, 4, 4X, 13 |
| Temperature Rating | -13 to 158 °F |
| Enclosure Material | Thermoplastic |
| Brand | Square D |
|---|---|
| Color | Yellow |
| MPN | 9001BW92Y |
| UPC | 00785901663683 |
| GTIN | 785901663683 |
