Square D XESD1281 Schneider Electric Pendant Station Contact
Quantity
Core Specs
See full specs

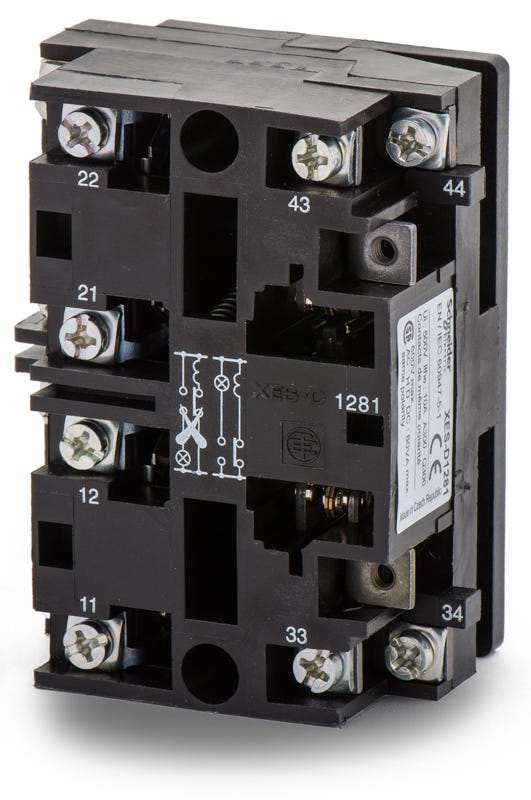

Schneider Electric XESD1281 Pendant Station Contact
New
Quantity
Description
Schneider Electric XESD1281 Pendant Station Contact
The Schneider Electric XESD1281 is a pendant station contact with a current rating of 10 Amps and a voltage rating of 600VAC. It has a contact configuration of 1C/O, 1NO. The XESD1281 has a spring return actuator type.
Specifications
| Amperage | 10 A |
|---|---|
| Voltage | 600VAC |
| Series | XESD |
| Terminal Connection | Screw Clamp |
|---|
| Duty Rating | Medium |
|---|---|
| Actuator Type | Spring Return |
| Action | Snap |
| Contact Configuration | 1C/O, 1NO |
| Approval | CSA, IEC |
|---|---|
| Standards | RoHS, REACh |
| Temperature Rating | -25 to 70 °C |
| Brand | Square D |
|---|---|
| MPN | XESD1281 |
| UPC | 785901641100 |
