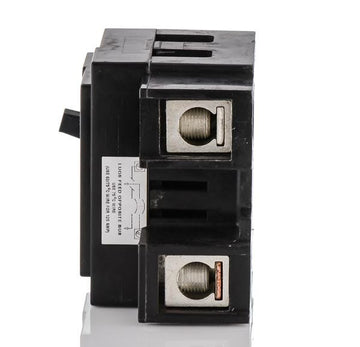

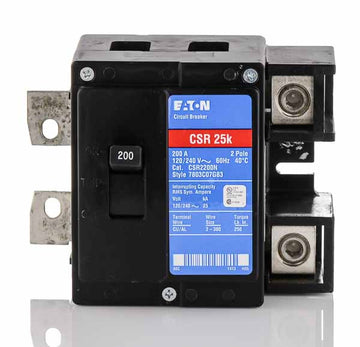

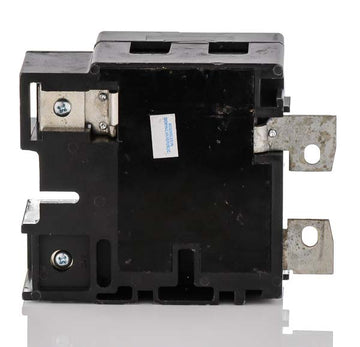

Eaton / Cutler-Hammer CSR2200N Molded Case Circuit Breaker
- 200A
- 2 Pole
- Bolt-On
Quantity
Eaton / Cutler-Hammer CSR2200N - 200A 2 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
Quantity
Eaton / Cutler-Hammer CSR2200N - 200A 2 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | CSR2200N |
| Series | CSR |
| Amperage | 200A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 25kA @ 120/240VAC |
| Frame Type | CSR |
|---|---|
| Terminal Type | Lugs |
| For Use With | Type CH Load Centers, Type ECC Unit Enclosures, Type ECB Unit Enclosures |
| Wire Gauge | 2 AWG - 300 kcmil (Al/Cu) |
| Max Wire | 300 kcmil |
| Min Wire | 2 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Padlock Attachment |
|---|---|
| Accessories | Line Side Lugs Included, Mounting Hardware |
| Standards | UL 489 |
| Approval | UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Main Breaker, High Interrupting Capacity |
Quantity
Eaton / Cutler-Hammer CSR2200N - 200A 2 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Series | CSR |
| Amperage | 200A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 25kA @ 120/240VAC |
| Frame Type | CSR |
|---|---|
| Terminal Type | Lugs |
| For Use With | Type CH Load Centers, Type ECC Unit Enclosures, Type ECB Unit Enclosures |
| Wire Gauge | 2 AWG - 300 kcmil (Al/Cu) |
| Max Wire | 300 kcmil |
| Min Wire | 2 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Padlock Attachment |
|---|---|
| Accessories | Line Side Lugs Included, Mounting Hardware |
| Standards | UL 489 |
| Approval | UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Main Breaker, High Interrupting Capacity |
Description
Engineered to serve as a dependable main breaker, the Eaton CSR2200N provides 200 amps of thermal-magnetic protection for 120/240VAC systems. The bolt-on design mounts securely into Eaton Type CH load centers, along with Type ECC and ECB unit enclosures. It acts as an exact substitute for the discontinued CSR2200, ensuring a hassle-free installation. With a solid 25kAIC interrupt capacity, this HACR-rated breaker includes lugs that accept wire sizes from 2 AWG up to 300 kcmil.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Series | CSR |
| Amperage | 200A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 25kA @ 120/240VAC |
| Frame Type | CSR |
|---|---|
| Terminal Type | Lugs |
| For Use With | Type CH Load Centers, Type ECC Unit Enclosures, Type ECB Unit Enclosures |
| Wire Gauge | 2 AWG - 300 kcmil (Al/Cu) |
| Max Wire | 300 kcmil |
| Min Wire | 2 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Padlock Attachment |
|---|---|
| Accessories | Line Side Lugs Included, Mounting Hardware |
| Standards | UL 489 |
| Approval | UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Main Breaker, High Interrupting Capacity |
Product FAQs
5 answersCan the CSR2200N be used as a branch breaker in a standard panel?
No, this unit is designed exclusively to serve as a main circuit breaker or primary service disconnect in Type CH load centers and ECC or ECB unit enclosures. It cannot be installed as a standard branch breaker.
What is the direct replacement for legacy Westinghouse BWH2200 main breakers?
The Eaton CSR2200N is the direct, modern replacement for obsolete Westinghouse BW2200 and BWH2200 main breakers. They share the exact same physical footprint and electrical characteristics.
What is the required tightening torque for the load terminals on this breaker?
The terminal lugs require a tightening torque of 275 lb-in. Ensure conductors are properly seated and torqued to this specification to prevent arcing and overheating.
Does this breaker include a shunt trip or auxiliary switch?
No, the standard CSR2200N does not include factory-installed accessories like a shunt trip or auxiliary contacts. It provides standard thermal-magnetic overcurrent and short-circuit protection.
What preparation is required when terminating aluminum conductors to this breaker?
While the lugs are dual-rated for copper and aluminum, you must apply a listed oxide-inhibiting joint compound to any aluminum conductors before terminating them to the 275 lb-in torque specification.
