Eaton/Cutler-Hammer KA3225F Circuit Breaker
- 225A
- 3 Pole
- Bolt-On Mounting Type
Quantity

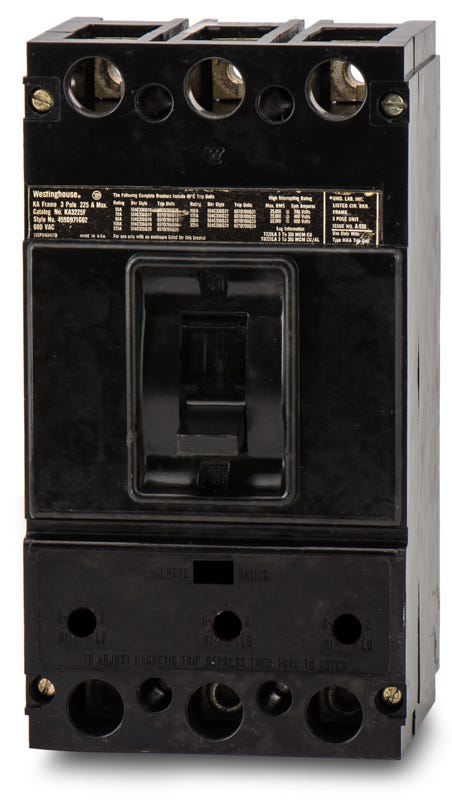

Eaton/Cutler-Hammer KA3225F 3 Pole Circuit Breaker
Re-Certified
Quantity
Description
KA3225F - Cutler-Hammer / Westinghouse Molded Case Circuit Breaker Frame
• Authentic Cutler-Hammer / Westinghouse Product
• Catalog Number: KA3225F
• Obsolete
• 2-Year Warranty
• 225 Amp
• 600 Volt
• 3 Pole
• Circuit Breaker Frame Only
Specifications
| Brand | Eaton/Cutler-Hammer |
|---|---|
| Part Number | KA3225F-R |
| Series | KA |
| Amperage | 225A |
| Poles | 3 |
| Mounting Style | Bolt-On Mounting Type |
| Voltage | 600 V |
| Phase | 3 |
Product FAQs
5 answersDoes the KA3225F include the trip unit and terminal lugs?
No, the KA3225F is a circuit breaker frame only. The thermal-magnetic trip unit and terminal lugs are not included and must be sourced and installed separately to complete the breaker assembly.
What are the interrupting capacity (AIC) ratings for this KA-frame breaker?
When fully assembled, this frame is rated for 25 kAIC at 240V AC, 22 kAIC at 480V AC, and 22 kAIC at 600V AC. It also carries a 10 kAIC rating at 250V DC.
Which panelboards are compatible with the KA3225F frame?
This bolt-on frame is designed for installation in legacy Westinghouse and Eaton/Cutler-Hammer Pow-R-Line C panelboards, CDP enclosures, switchboards, and motor control centers.
Can this frame be used to replace older Westinghouse KA breakers?
Yes. The KA3225F was originally manufactured by Westinghouse and later transitioned to the Eaton/Cutler-Hammer brand. It serves as an exact physical and electrical replacement for older Westinghouse KA-frame breakers.
What is the modern replacement for the obsolete KA3225F?
For modern panel upgrades, the legacy KA3225F is typically replaced by the newer KD3225 circuit breaker. Upgrading to the KD-frame requires a TAD3 adapter spacer to fit the existing mounting footprint.
