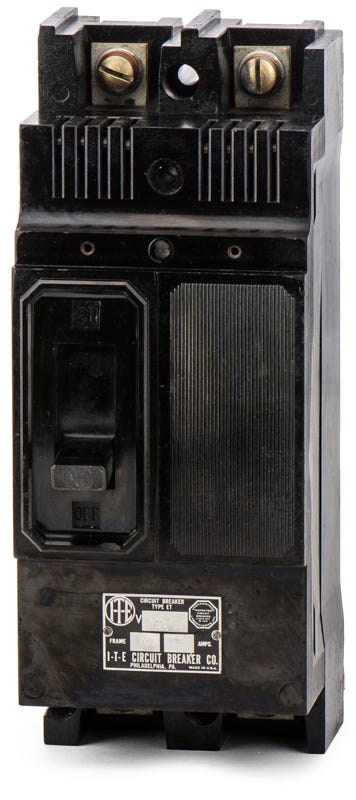

Siemens / ITE ET100-215 Molded Case Circuit Breaker
- 15A
- 2 Pole
- Bolt-On
Quantity
Siemens / ITE ET100-215 - 15A 2 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
Description
Serving as a reliable overcurrent solution, the Siemens ET100-215 is a 2-pole, 15A molded case circuit breaker. It is engineered for commercial and industrial applications, supporting voltages up to 600VAC and 250VDC with a 25kAIC rating at 240V. This bolt-on unit fits seamlessly into older ITE and Siemens F-Frame panelboards. When an exact substitute is needed, the F2B015 serves as the modern replacement. The breaker includes line and load lugs and features a trip-free mechanism.Specifications
| Brand | Siemens / ITE |
|---|---|
| Part Number | ET100-215-R |
| Series | ET100 |
| Amperage | 15A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 1 |
| AIC Rating | 25kA @ 240VAC, 14kA @ 480VAC, 14kA @ 600VAC, 10kA @ 250VDC |
| Frame Type | F |
|---|---|
| Terminal Type | Lugs |
| For Use With | ITE / Siemens F-Frame Panelboards and Switchboards |
| Wire Gauge | 14-10 AWG (Cu/Al) |
| Max Wire | 10 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | Line and Load Lugs Included |
| Standards | UL 489, NEMA AB-1 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | Common Trip, Trip-Free Mechanism, Quick-Make/Quick-Break, HACR Rated |
Product FAQs
5 answersWhat enclosures and panelboards accept the ET100-215 circuit breaker?
This bolt-on breaker is specifically designed to mount in legacy ITE and Siemens F-Frame panelboards and switchboards.
What is the modern replacement for the legacy ET100-215?
If an exact substitute is required, the Siemens F2B015 serves as the modern replacement for this 15-amp F-Frame breaker.
Do I need special lugs for aluminum wiring on the ET100-215?
No, the factory-installed lugs are dual-rated for both copper and aluminum conductors ranging from 14 AWG to 10 AWG.
Can I use the ET100-215 in a 250VDC control circuit?
Yes, this breaker is rated for DC applications up to 250VDC, providing a 10kA interrupting capacity for direct current systems.
Does the ET100-215 offer adjustable trip settings for coordination?
No, this is a fixed thermal, fixed magnetic breaker. It provides standard long-time and instantaneous (LI) protection without adjustable dials.
