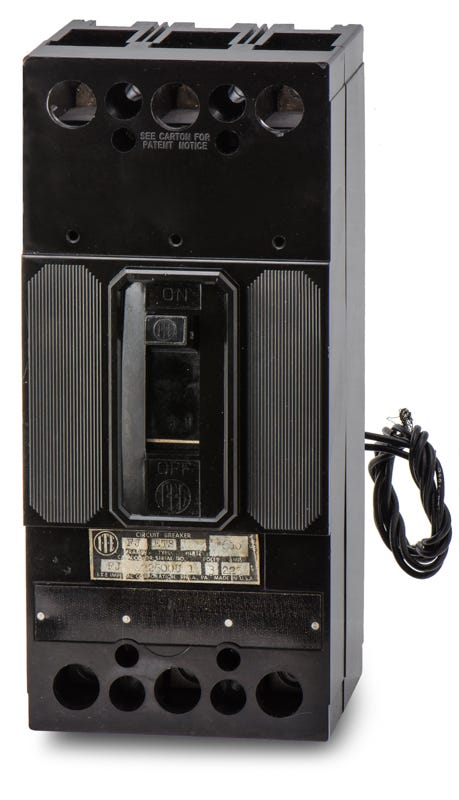

Siemens / ITE FJ3S22500U01 - 225A 3 Pole Molded Case Switch
Re-Certified
Quantity
Description
Designed specifically for circuit isolation, this 225A non-automatic switch delivers robust disconnect capabilities for motor circuits and industrial loads. It operates safely at up to 600VAC while utilizing the proven F-Frame architecture. The unit mounts into Siemens and ITE F1, F2, SB1, SB2, and SB3 distribution panels. As a legacy component, it offers an exact fit for older systems. Equipped with a factory-installed undervoltage release, it enhances operational safety during power drops.Specifications
| Brand | Siemens / ITE |
|---|---|
| Part Number | FJ3S22500U01-R |
| Series | FJ |
| Amperage | 225A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 25kA @ 240VAC, 14kA @ 480VAC, 14kA @ 600VAC, 10kA @ 250VDC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Siemens / ITE F1, F2, SB1, SB2, SB3 Panelboards and Switchboards |
| Wire Gauge | 6 AWG - 350 kcmil (Cu/Al) |
| Max Wire | 350 kcmil |
| Min Wire | 6 AWG |
| Available Options | Auxiliary Switch, Shunt Trip, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Undervoltage Release (Factory Installed), Line and Load Lugs Included |
| Standards | UL 489, NEMA AB-1, CSA C22.2 No. 5, UL 1087 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | Non-Automatic (Disconnect) |
