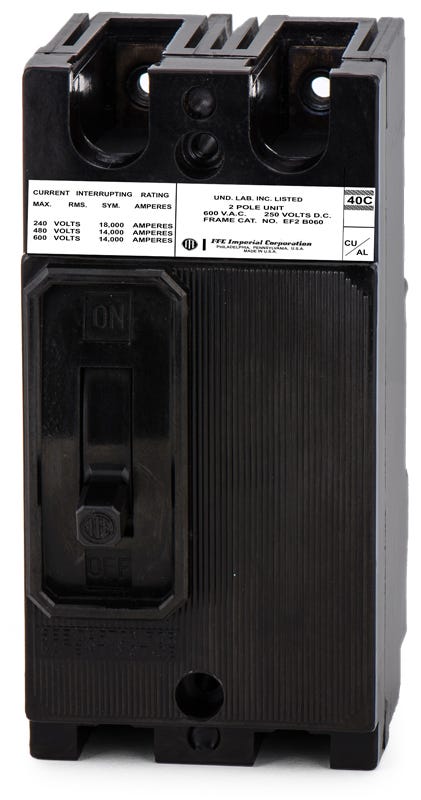

Siemens / ITE EF2B060 Molded Case Circuit Breaker
- 60A
- 2 Pole
- Unit Mount
Siemens / ITE
EF2B060
Molded Case Circuit Breaker
Brand
Siemens / ITE
SKU
EF2B060
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Siemens / ITE EF2B060 - 60A 2 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
Similar Items
80A 2 Pole Molded Case Circuit Breaker
40A 2 Pole Molded Case Circuit Breaker
35A 2 Pole Molded Case Circuit Breaker
Description
Serving as an exact replacement for aging systems, the Siemens EF2B060 is a 60A, 2-pole molded case circuit breaker. It delivers essential long-time and instantaneous trip functions for commercial environments. This unit mount breaker installs into classic ITE FC, FCI, and CDP panelboards without requiring aftermarket adapters. It serves as the original predecessor to the modern ED62B060. Rated for 18kA interrupting capacity at 240VAC, it features non-interchangeable trip units.Specifications
| Brand | Siemens / ITE |
|---|---|
| Part Number | EF2B060-R |
| Series | EF |
| Amperage | 60A |
| Poles | 2 |
| Mounting Style | Unit Mount |
| Voltage | 600VAC, 250VDC |
| Phase | 1 |
| AIC Rating | 18kA @ 240VAC, 14kA @ 480VAC, 14kA @ 600VAC, 10kA @ 250VDC |
| Frame Type | EF |
|---|---|
| Terminal Type | Lugs |
| For Use With | ITE / Siemens FC, FCI, CDP Panelboards |
| Wire Gauge | 10-1/0 AWG (Cu/Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 10 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Undervoltage Release |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | NEMA AB-1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | Non-Interchangeable Trip |
Product FAQs
6 answersWhich panelboards are compatible with the EF2B060 circuit breaker?
This unit mount breaker is designed for installation in classic ITE and Siemens FC, FCI, and CDP panelboards. It bolts directly to the bus or mounting pan without requiring aftermarket adapters.
What wire sizes and materials are accepted by the load side lugs on the EF2B060?
The factory-installed load side lugs accept 10 AWG to 1/0 AWG copper or aluminum wire. Always verify proper torque specifications during installation to ensure a secure connection.
Can the EF2B060 be used in direct current (DC) applications?
Yes, this breaker is rated for DC applications up to 250VDC, providing an interrupting capacity of 10kAIC at that voltage.
Is the EF2B060 an obsolete breaker, and what is its modern equivalent?
The EF frame is a legacy ITE and Siemens product line. While exact replacements like the EF2B060 are still sourced for existing CDP and FC panels, modern ED frame breakers such as the ED62B060 serve as the current generation equivalent.
Does the EF2B060 feature an adjustable trip unit?
No, it features a non-interchangeable thermal magnetic trip unit with fixed long time and instantaneous trip functions. It cannot be adjusted in the field.
How does the EF2B060 mount inside the enclosure?
It is a bolt-on, unit mount circuit breaker. It is secured using mounting hardware directly to the panelboard chassis rather than snapping onto a DIN rail or plug-in bus.
