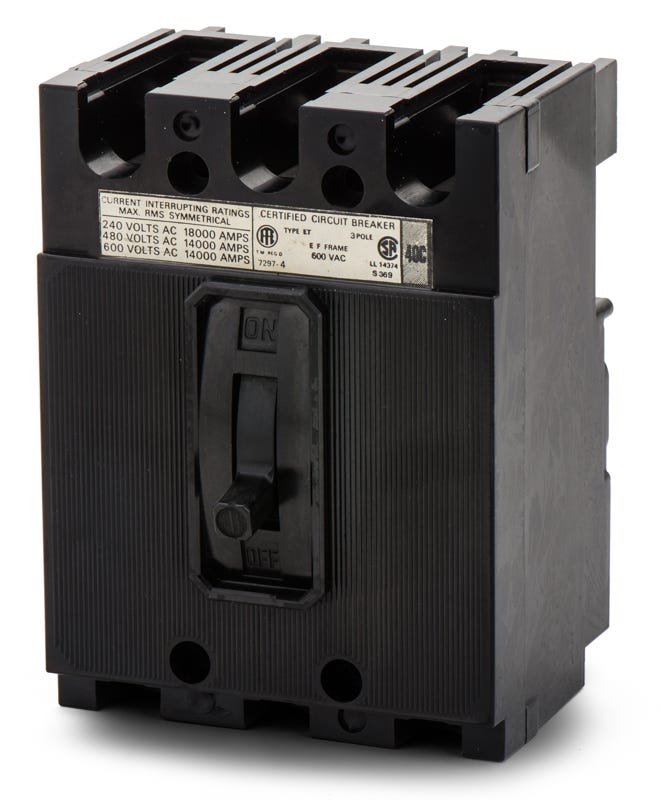

Siemens / ITE EF3B035 Molded Case Circuit Breaker
- 35A
- 3 Pole
- Unit Mount
Quantity
Siemens / ITE EF3B035 - 35A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
Description
Designed to maintain older infrastructure, the Siemens EF3B035 is a 35-amp, 3-pole molded case circuit breaker. It provides essential long-time and instantaneous (LI) protection for 600VAC commercial applications. This unit mount breaker integrates into legacy ITE and Siemens FC, FCI, and CDP panelboards. Utilizing this exact E-frame model ensures a proper fit without requiring the modern ED63B035 substitute. It delivers a 14 kAIC interrupt rating at 480VAC and utilizes reliable lug terminals.Specifications
| Brand | Siemens / ITE |
|---|---|
| Part Number | EF3B035-R |
| Series | EF |
| Amperage | 35A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 18kA @ 240VAC, 14kA @ 480VAC, 14kA @ 600VAC, 10kA @ 250VDC |
| Frame Type | EF |
|---|---|
| Terminal Type | Lugs |
| For Use With | ITE / Siemens FC, FCI, CDP Panelboards |
| Wire Gauge | 10-1/0 AWG (Cu/Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 10 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Undervoltage Release |
|---|---|
| Accessories | None Included |
| Standards | NEMA AB-1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | Non-Interchangeable Trip |
Product FAQs
7 answersWhich panelboards are compatible with the EF3B035 circuit breaker?
This E-frame breaker is designed for installation in legacy ITE and Siemens FC, FCI, and CDP panelboards.
What wire sizes are accepted by the load side lugs on the EF3B035?
The terminals accept 10 AWG to 1/0 AWG copper or aluminum (Cu/Al) conductors.
How does the EF3B035 mount into the panelboard?
It is a unit mount, bolt-on circuit breaker.
Is the EF3B035 rated for direct current (DC) systems?
Yes, in addition to its AC ratings, this breaker is rated for 250VDC applications with a 10kAIC interrupting capacity.
Can the trip unit on the EF3B035 be swapped or adjusted?
No, this breaker features a non-interchangeable thermal-magnetic trip unit with fixed long-time and instantaneous (LI) functions.
Is the EF3B035 a legacy breaker?
Yes, it is a legacy molded case circuit breaker used to maintain older ITE and Siemens infrastructure. Using this exact model allows for direct replacement without requiring modern frame substitutes.
What type of fault protection does the EF3B035 provide?
It provides standard long-time and instantaneous (LI) thermal-magnetic protection to safeguard circuits against overloads and short circuits.
