ITE JJ3B400 3 Pole Circuit Breaker
Re-Certified
Quantity
Description

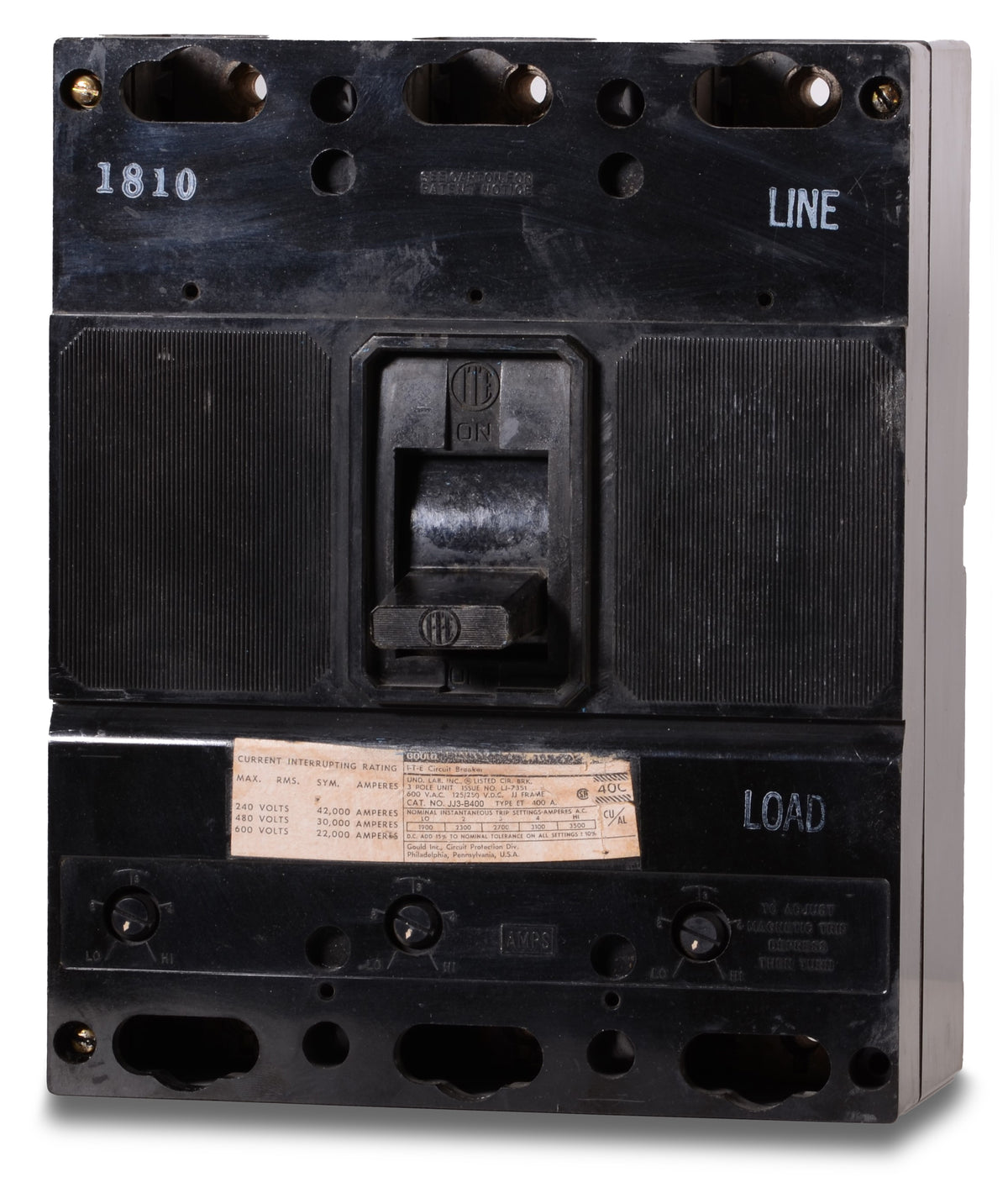

ITE JJ3B400 3 Pole Circuit Breaker
The ITE JJ3B400 is a 3 Pole thermal magnetic molded case circuit breaker with a current rating of 400 Amps and a voltage rating of 600VAC. It has an interrupting rating of 25kAIC at 480V. The JJ3B400 has a bolt-on connection type and includes long time and instantaneous trip functions.
Specifications
| Amperage | 400 A |
|---|---|
| Voltage | 600V |
| Series | JJ |
| Poles | 3 |
| Phase | 3 |
|---|---|
| Interrupting Rating | 25kAIC at 480V |
| Connection Type | Bolt-On |
|---|---|
| Terminal Connection | Load Side Lug |
| Protection | Thermal Magnetic |
|---|---|
| Functions | LI - Long-Time and Instantaneous |
| Brand | ITE |
|---|---|
| MPN | JJ3B400-R |
