Square D MAL26500 Molded Case Circuit Breaker
- 500A
- 2 Pole
- Unit Mount
Quantity

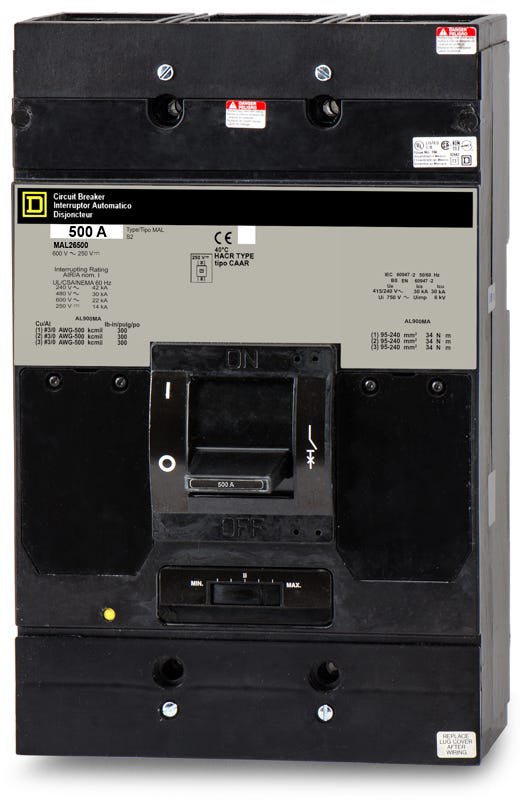

Square D MAL26500 - 500A 2 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
Description
Designed for demanding industrial environments, the Square D MAL26500 is a 500A, 2-pole molded case circuit breaker. It utilizes a thermal-magnetic trip mechanism with fixed thermal and adjustable magnetic settings. This lug-in, lug-out unit-mount breaker fastens into Square D switchboards and motor control centers. For modern replacements, the PowerPact MGA36500 can be used by wiring the two outer poles. It handles up to 600VAC and 250VDC, delivering a 30kAIC interrupting rating at 480V.Specifications
| Brand | Square D |
|---|---|
| Part Number | MAL26500 |
| Series | MAL |
| Amperage | 500A |
| Poles | 2 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 1 |
| AIC Rating | 42kA @ 240VAC, 30kA @ 480VAC, 22kA @ 600VAC, 14kA @ 250VDC |
| Frame Type | M |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D Switchboards, Motor Control Centers |
| Wire Gauge | (3) 3/0 AWG - 500 kcmil (Al/Cu) |
| Max Wire | 500 kcmil |
| Min Wire | 3/0 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Adjustable Magnetic |
| Available Options | Shunt Trip, Undervoltage Release, Auxiliary Switch, Alarm Switch |
|---|---|
| Accessories | Line and Load Lugs (AL900MA) |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | Non-Interchangeable Trip |
Product FAQs
6 answersWill this breaker fit in an I-Line panelboard?
No, this is a unit-mount, feed-thru circuit breaker. It is designed to be hard-mounted in Square D switchboards and motor control centers, not in plug-on I-Line distribution panels.
What is the modern replacement for the legacy MAL26500?
The legacy M-frame has been superseded by the PowerPact series. For a modern equivalent, a 3-pole PowerPact MGA36500 can often be utilized by wiring the two outer poles, depending on your specific switchboard or enclosure clearances.
How are the conductors terminated on this breaker?
The breaker features factory-installed mechanical line and load lugs. Each lug can accommodate up to three 3/0 AWG to 500 kcmil aluminum or copper wires.
Are the trip settings adjustable on this model?
The thermal element for long-time protection is fixed, but the magnetic instantaneous trip function is adjustable. This allows you to coordinate the breaker with downstream loads and prevent nuisance tripping.
Is this breaker suitable for DC power applications?
Yes, it is rated for use in DC systems up to 250VDC. When applied in a 250VDC system, it provides a 14kA interrupting rating.
What are the safety requirements for installing this 500A breaker?
Installation should only be performed by qualified electrical personnel. Ensure all power sources are locked out and tagged out before mounting the breaker or terminating the heavy-gauge conductors. Verify that the adjustable magnetic trip settings align with your system coordination study prior to energization.
