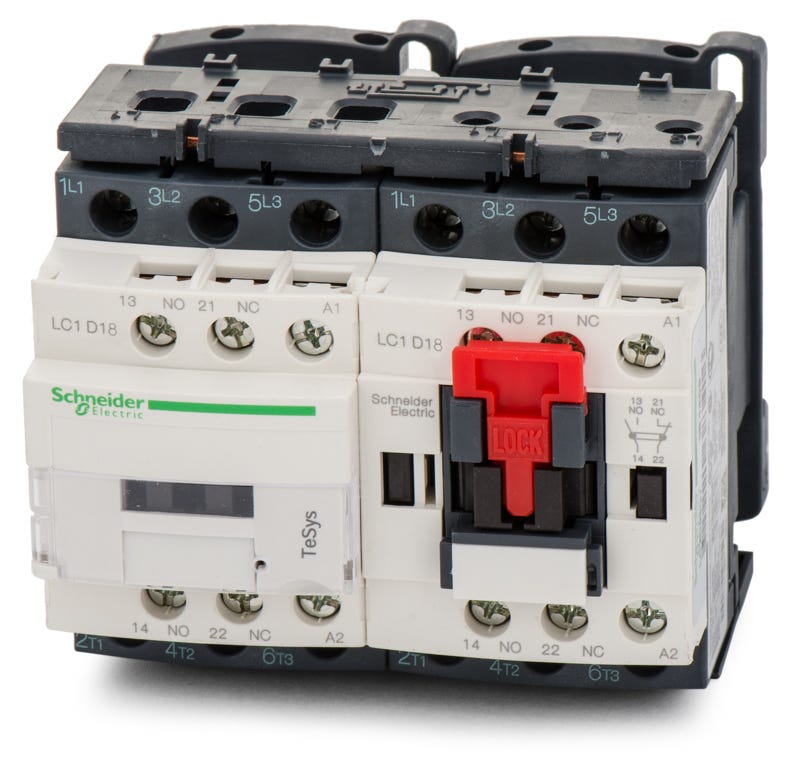

Schneider Electric LC2D18G7 Contactor
The Schneider Electric LC2D18G7 is a 3 Pole contactor with a current rating of 18 Amps and a voltage rating of 690VAC, 300VDC. It has a coil volts of 120VAC at 50/60Hz. The LC2D18G7 has a screw clamp terminal connection and it is used for LC2-D series motor control systems.
Specifications
| Amperage | 18 A |
|---|---|
| Coil Volts | 120VAC at 50/60Hz |
| Poles | 3 |
| Contact Configuration | 1NO, 1NC |
| Voltage | 690VAC, 300VDC |
|---|---|
| Phase | 3 |
| Mounting Type | Din Rail |
|---|---|
| Terminal Connection | Screw Clamp |
| Length (in) | 3.39 |
| Width (in) | 3.54 |
| Height (in) | 3.03 |
| Action | Reversing |
|---|
| Approval | UL, CSA, EN, IEC, CCC, UKCA, BV, DNV, GL, GOST, LROS, RINA |
|---|---|
| Standards | RoHS, REACh |
| Temperature Rating | -40 to 60 °C |
| Series | LC2D |
|---|---|
| Brand | Schneider Electric |
| MPN | LC2D18G7 |
| UPC | 785901207467 |
