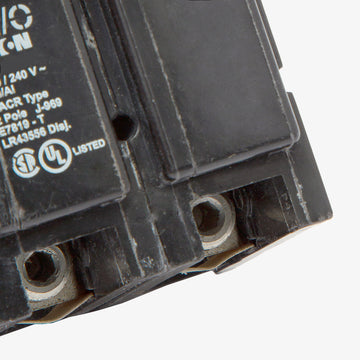

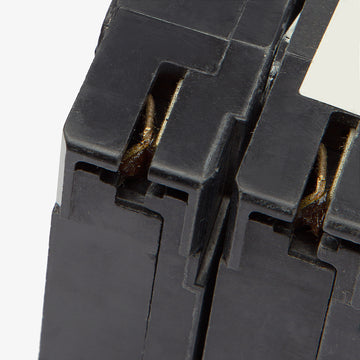

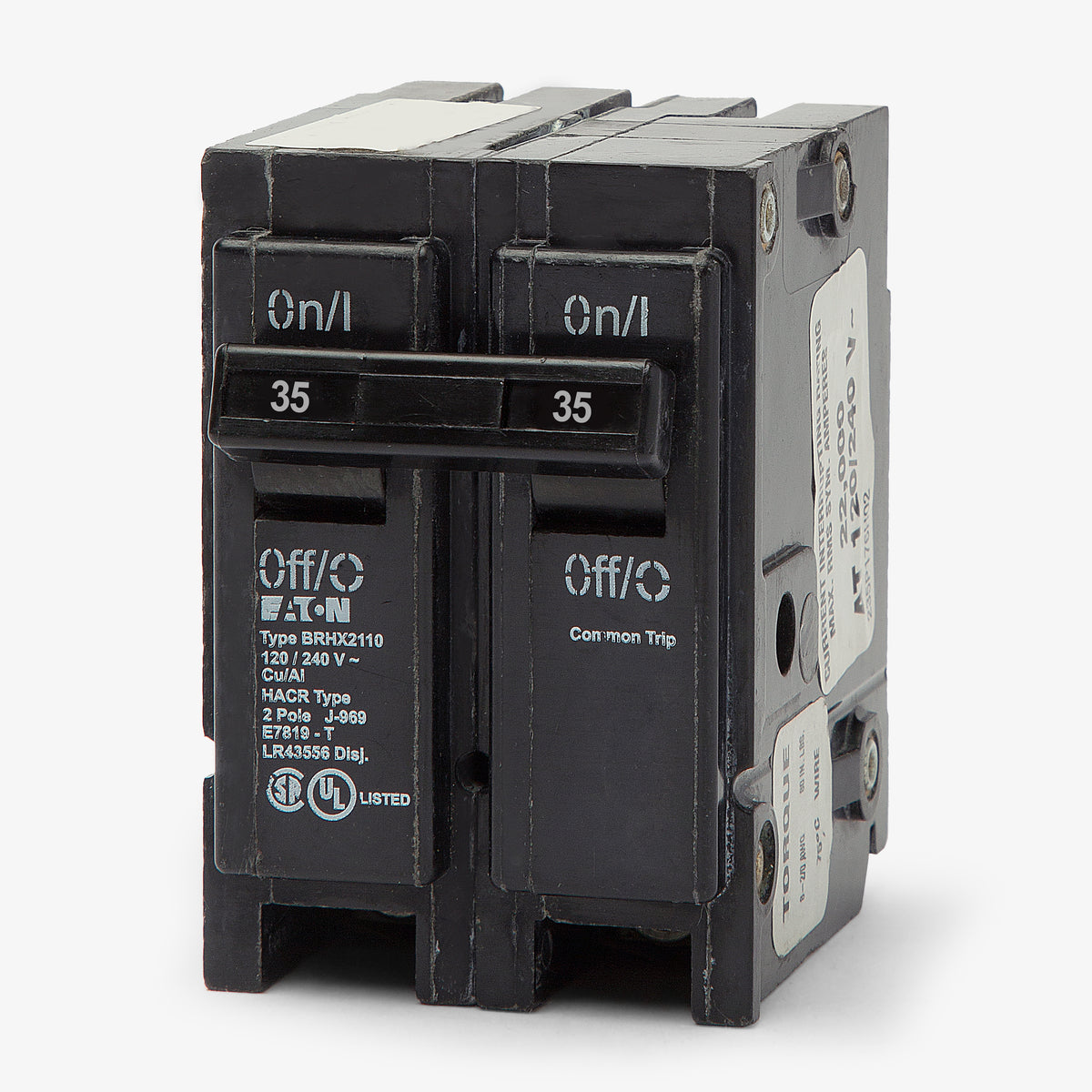

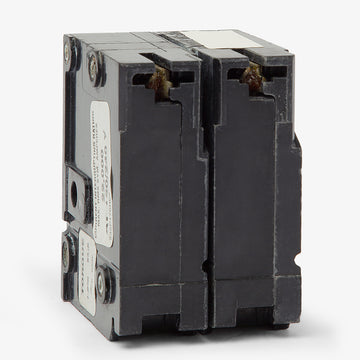

Eaton / Cutler-Hammer BR235 Miniature Circuit Breaker
- 35A
- 2 Pole
- Plug-On
Quantity
Eaton / Cutler-Hammer BR235 - 35A 2 Pole Miniature Circuit Breaker
New
Quantity
Quantity
Eaton / Cutler-Hammer BR235 - 35A 2 Pole Miniature Circuit Breaker
New
Quantity
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | BR235 |
| Series | BR |
| Amperage | 35A |
| Poles | 2 |
| Mounting Style | Plug-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Frame Type | BR |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | Type BR Load Centers |
| Wire Gauge | 14-4 AWG (Cu/Al) |
| Max Wire | 4 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Padlock Attachment |
|---|---|
| Standards | Federal Specification W-C375, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | Common Trip, HACR Rated |
Quantity
Eaton / Cutler-Hammer BR235 - 35A 2 Pole Miniature Circuit Breaker
Re-Certified
Quantity
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | BR235-R |
| Series | BR |
| Amperage | 35A |
| Poles | 2 |
| Mounting Style | Plug-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Frame Type | BR |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | Type BR Load Centers |
| Wire Gauge | 14-4 AWG (Cu/Al) |
| Max Wire | 4 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Padlock Attachment |
|---|---|
| Standards | Federal Specification W-C375, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | Common Trip, HACR Rated |
Description
Engineered for standard residential and commercial applications, the Eaton BR235 delivers dependable overcurrent protection. This two-pole, 35-amp miniature breaker installs into Type BR load centers, utilizing a standard plug-on mounting style with box lug terminals. Operating at 120/240VAC with a 10kA interrupting capacity, it ensures safe electrical distribution. It also serves as an exact replacement for legacy C235 and W235 models, maintaining compatibility with existing panelboards.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | BR235 |
| Series | BR |
| Amperage | 35A |
| Poles | 2 |
| Mounting Style | Plug-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Frame Type | BR |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | Type BR Load Centers |
| Wire Gauge | 14-4 AWG (Cu/Al) |
| Max Wire | 4 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Padlock Attachment |
|---|---|
| Standards | Federal Specification W-C375, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | Common Trip, HACR Rated |
Product FAQs
6 answersWhat panels are compatible with the BR235 circuit breaker?
The BR235 is designed for use in Eaton Type BR load centers. It is also the UL-approved replacement for legacy Cutler-Hammer, Bryant, Westinghouse, and Challenger panels that accept 1-inch plug-on breakers.
What is the recommended terminal torque for the BR235 breaker?
The box lug terminals on the BR235 should be tightened to 20 lb-in. Always verify the torque specifications printed directly on the breaker housing before installation.
Can I use aluminum wire with this breaker?
Yes, the box lugs are rated for both copper and aluminum conductors ranging from 14 AWG to 4 AWG. Ensure you apply an approved anti-oxidant compound when using aluminum wiring, as required by local electrical codes.
Does the BR235 replace older Bryant or Westinghouse 35A breakers?
Yes, Eaton acquired these brands, and the BR235 serves as the exact, UL-approved replacement for legacy Bryant, Westinghouse, and Challenger 35A 2-pole breakers, including models C235 and W235.
Is the Eaton BR235 HACR rated?
Yes, this 2-pole breaker is HACR rated, making it suitable for use with heating, air conditioning, and refrigeration equipment that requires a 35A overcurrent protection device.
Does this breaker provide GFCI or AFCI protection?
No, the BR235 is a standard thermal-magnetic circuit breaker. It provides overload and short-circuit protection but does not include Ground Fault (GFCI) or Arc Fault (AFCI) circuitry.
