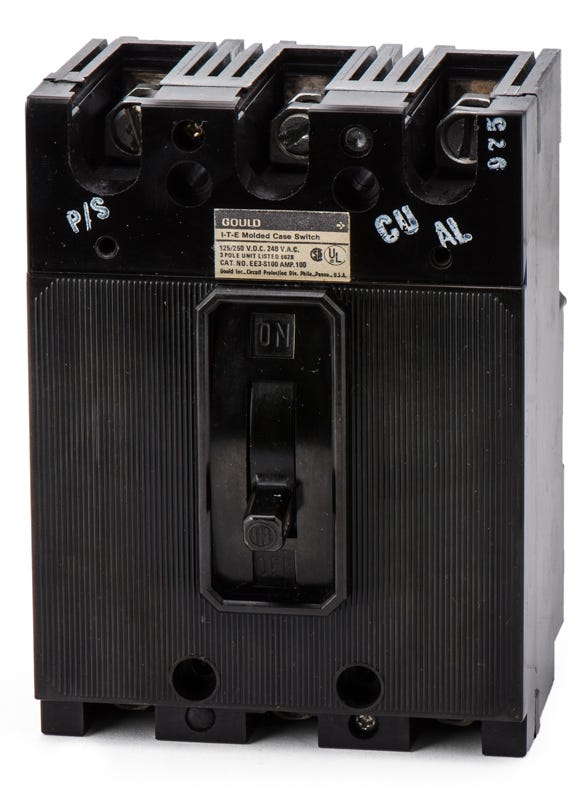

Siemens / ITE EE3S100 - 100A 3 Pole Molded Case Switch
Re-Certified
Quantity
Description
Engineered for commercial applications, the Siemens EE3S100 functions strictly as a non-automatic molded case switch. It delivers safe circuit isolation for systems lacking integrated overcurrent protection. This 3-pole unit mount switch fits legacy ITE and Siemens panelboards, including P1 and P2 series. It provides the exact original fit for systems where the newer ED23S100 is not preferred. Rated for 240VAC, it utilizes a magnetic-only trip mechanism to ensure reliable disconnect performance.Specifications
| Brand | Siemens / ITE |
|---|---|
| Part Number | EE3S100-R |
| Series | EE |
| Amperage | 100A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC |
| Phase | 3 |
| AIC Rating | 10kA @ 240VAC |
| Terminal Type | Lugs |
|---|---|
| For Use With | ITE / Siemens Panelboards (e.g., P1, P2, CDP) |
| Wire Gauge | 10-1/0 AWG (Cu/Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 10 AWG |
| Trip Technology | Magnetic Only |
|---|
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Undervoltage Release |
|---|---|
| Accessories | Lugs (Factory Included) |
| Standards | UL 1087, NEMA AB-1 |
| Approval | UL |
| Temp Rating | 40C |
| Construction Features | Non-Automatic (Disconnect) |
