Siemens / ITE EH3S100 Molded Case Switch
Quantity
Core Specs
See full specs

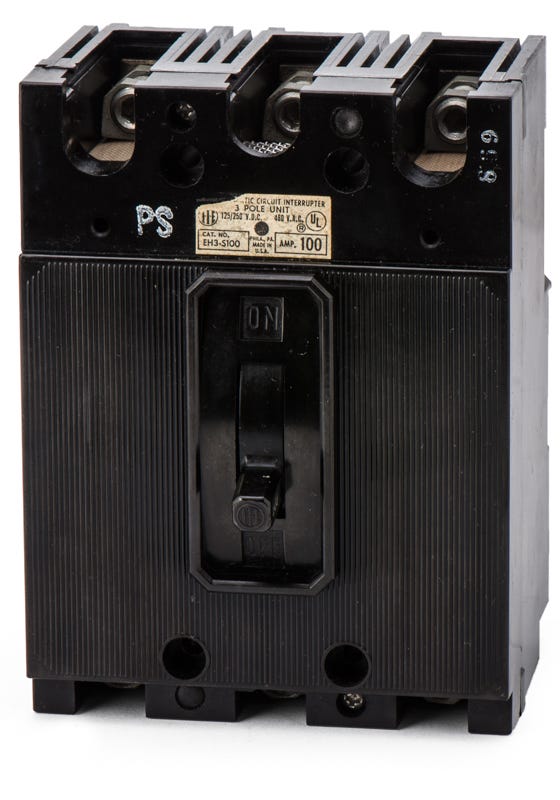

Siemens / ITE EH3S100 - 100A 3 Pole Molded Case Switch
Re-Certified
Quantity
Description
Engineered for commercial and industrial isolation needs, this 100A non-automatic switch delivers manual disconnect capabilities. It utilizes a magnetic-only trip mechanism, omitting thermal overcurrent protection entirely. This legacy E-Frame component mounts into older ITE enclosures and Siemens P2 or P3 panelboards. It provides a seamless replacement solution for discontinued systems. With a 14kA short-circuit withstand rating at 480VAC, the unit ensures safe maintenance switching.Specifications
| Brand | Siemens / ITE |
|---|---|
| Part Number | EH3S100-R |
| Series | EH |
| Amperage | 100A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 480VAC |
| Phase | 3 |
| AIC Rating | 14kA @ 480VAC |
| Frame Type | EH |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens P2, P3 Panelboards, ITE Panelboards |
| Wire Gauge | 10 AWG - 1/0 AWG (Cu/Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 10 AWG |
| Trip Technology | Magnetic Only |
|---|
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release |
|---|---|
| Accessories | None included |
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | Non-Automatic (Disconnect) |
