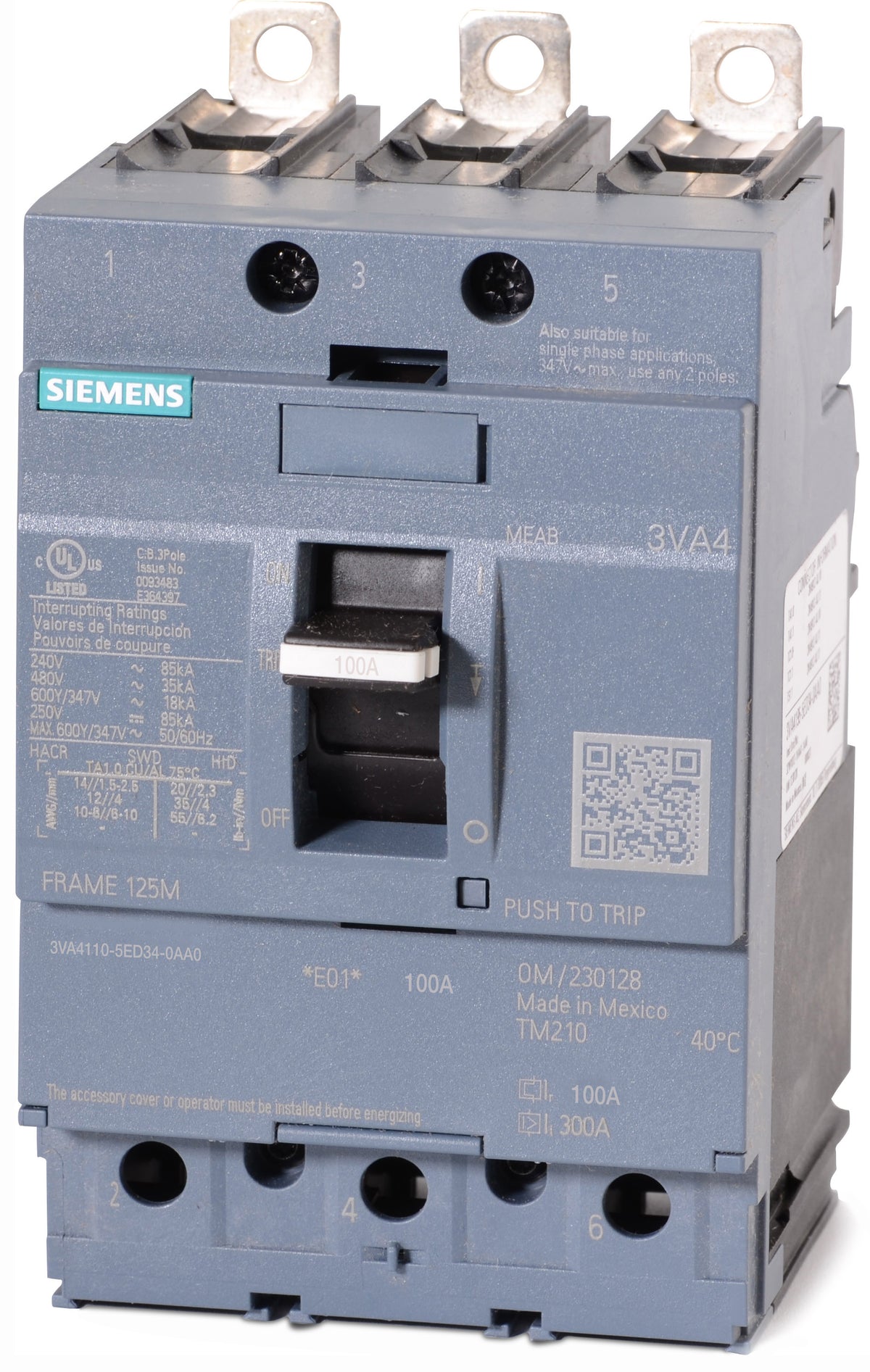

Siemens 3VA4110-5ED34-0AA0 Molded Case Circuit Breaker
- 100A
- 3 Pole
- Bolt-On
Quantity
Siemens 3VA4110-5ED34-0AA0 - 100A 3 Pole Molded Case Circuit Breaker
New
Quantity
Description
Part of Siemens' SENTRON 3VA4 series, this 100A, 3-pole molded case circuit breaker provides robust thermal-magnetic protection for commercial and industrial applications. It mounts into Siemens P1, P2, and P3 panelboards as well as compatible switchboards. Serving as a reliable replacement for legacy ED43B100 and HED43B100 breakers, it features a 35kAIC rating at 480VAC. The unit includes fixed thermal and magnetic trip settings, current-limiting capabilities, and reverse feed operation.Specifications
| Brand | Siemens |
|---|---|
| Series | 3VA4 |
| Amperage | 100A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480Y/277VAC, 480VAC, 600Y/347VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 85kA @ 240VAC, 35kA @ 480Y/277VAC, 35kA @ 480VAC, 18kA @ 600Y/347VAC, 85kA @ 250VDC |
| Frame Type | 3VA41 |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens P1 Panelboards, Siemens P2 Panelboards, Siemens P3 Panelboards, Siemens Switchboards |
| Wire Gauge | 8 AWG - 3/0 AWG (Cu/Al) |
| Max Wire | 3/0 AWG |
| Min Wire | 8 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Undervoltage Release, Padlock Attachment, Motor Operator, Rotary Handle |
|---|---|
| Accessories | Load Side Lugs |
| Standards | CSA C22.2 No. 5, HACR Rated, IEC 60947-2, UL 489 |
| Approval | CE, CSA, NOM, UL |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated, Reverse Feed |
Product FAQs
6 answersCan the 3VA4110-5ED34-0AA0 replace older ED-frame breakers?
Yes, this 3VA4 series breaker serves as a reliable replacement for legacy Siemens ED43B100 and HED43B100 circuit breakers.
Which panelboards accept this 3VA4 circuit breaker?
This breaker mounts into Siemens P1, P2, and P3 panelboards, as well as compatible Siemens switchboards. You may need a 3VA-specific strap kit or mounting hardware depending on your existing enclosure.
Is this breaker suitable for reverse feed applications?
Yes, this unit supports reverse feed operation, allowing it to be back-fed when required by your panel or switchboard configuration.
Are the trip settings on this breaker adjustable?
No, it features a thermal-magnetic trip unit with fixed thermal (long-time) and fixed magnetic (instantaneous) settings.
Is this a current-limiting circuit breaker?
Yes, this model features current-limiting capabilities to reduce let-through energy and provide robust protection during short-circuit events.
What wire sizes and materials are compatible with the terminals?
The factory-installed lugs accept 8 AWG to 3/0 AWG wire and are rated for use with both copper (Cu) and aluminum (Al) conductors.
