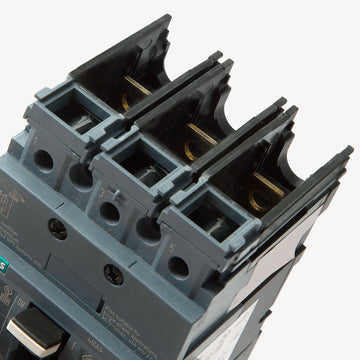

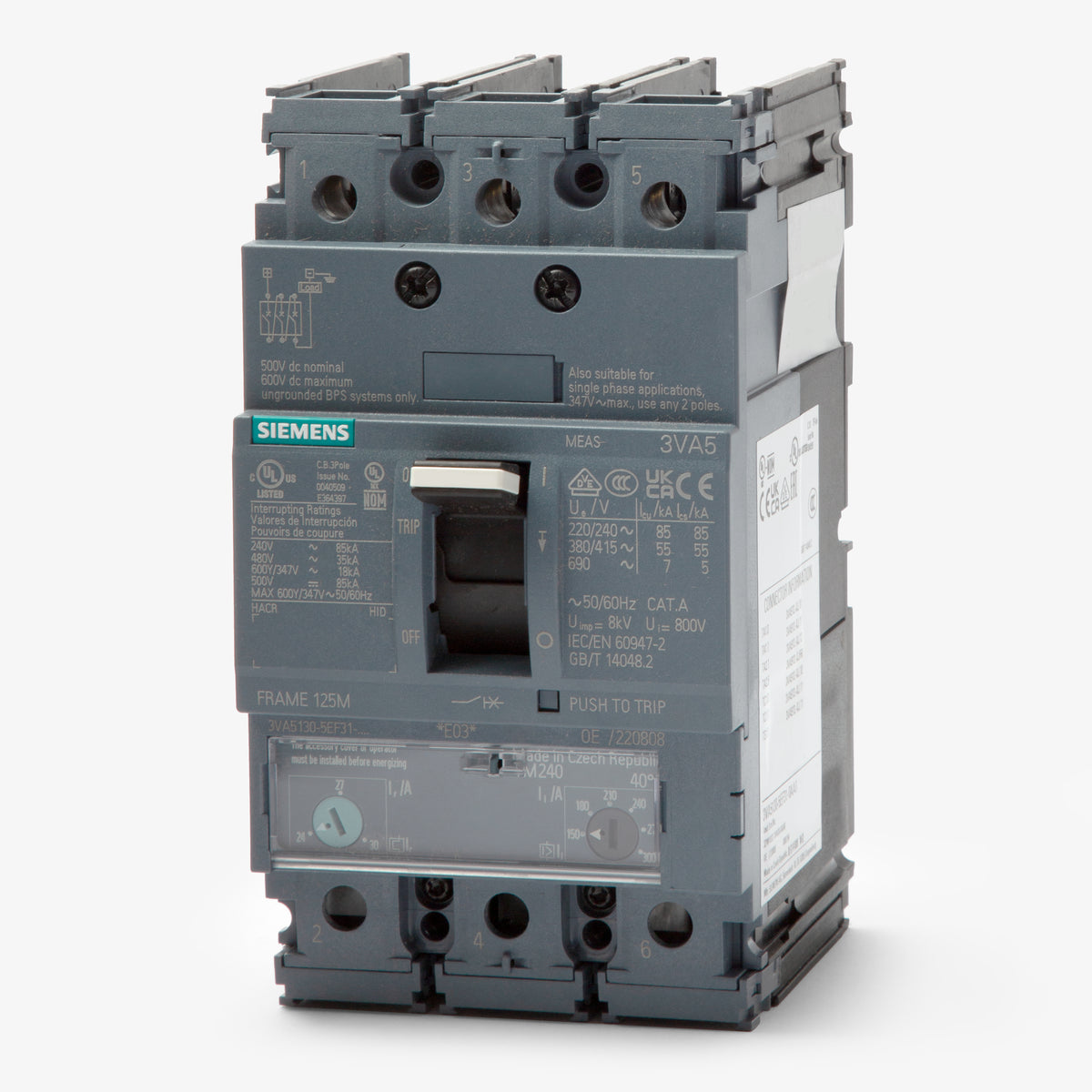

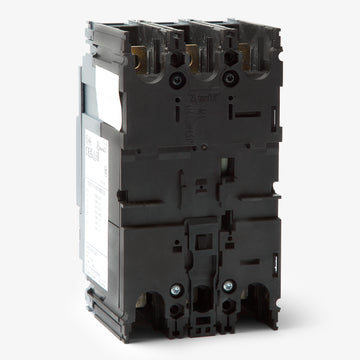

Siemens 3VA5110-6EC31-0AA0 Molded Case Circuit Breaker
- 100A
- 3 Pole
- Panel Mount
Siemens
3VA5110-6EC31-0AA0
Molded Case Circuit Breaker
Brand
Siemens
SKU
3VA5110-6EC31-0AA0
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Siemens 3VA5110-6EC31-0AA0 - 100A 3 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
100A 3 Pole Molded Case Circuit Breaker
100A 3 Pole Molded Case Circuit Breaker
100A 3 Pole Molded Case Circuit Breaker
Description
Engineered for industrial applications, the Siemens 3VA5110-6EC31-0AA0 is a 3-pole, 100A molded case circuit breaker. It provides reliable long-time and instantaneous (LI) protection for 600Y/347VAC systems. This panel-mount MCCB installs into Siemens P1 and P2 panelboards. It also replaces legacy HHED63B100 and HED43B100 breakers with a mounting kit. Rated at 65 kAIC at 480VAC, this Class H breaker features a TM230 trip unit with fixed thermal and adjustable magnetic settings.Specifications
| Brand | Siemens |
|---|---|
| Part Number | 3VA5110-6EC31-0AA0 |
| Series | 3VA5 |
| Amperage | 100A |
| Poles | 3 |
| Mounting Style | Panel Mount |
| Voltage | 240VAC, 480VAC, 600Y/347VAC, 500VDC |
| Phase | 3 |
| AIC Rating | 100kA @ 240VAC, 65kA @ 480VAC, 25kA @ 600Y/347VAC, 100kA @ 500VDC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Siemens P1 Panelboards, Siemens P2 Panelboards, Siemens Switchboards |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Adjustable Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment, Motor Operator, Rotary Handle, DIN Rail Adapter |
|---|---|
| Accessories | Nut Keeper |
| Standards | IEC 60947-2, UL 489, HACR |
| Approval | ABS, CCC, CE, CSA, DNV, EAC, GL, IEC, LRS, RCM, UL, VDE |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated, Current Limiting, Reverse Feed, Non-Interchangeable Trip |
Product FAQs
6 answersWhat legacy Siemens circuit breakers does the 3VA5110-6EC31-0AA0 replace?
The 3VA51 frame is the modern replacement for legacy Siemens ED-frame breakers, such as the HED43B100 and HHED63B100. A retrofit mounting kit is required when upgrading older panelboards.
Does the 3VA5110-6EC31-0AA0 come with line and load lugs installed?
No. The -0AA0 suffix in the catalog number indicates this breaker ships without lugs. Line and load lug kits must be purchased separately based on your specific wire size and material requirements.
What does the 6 in the 3VA5110-6EC31-0AA0 catalog number indicate?
The 6 designates this as a Class H (High Breaking Capacity) circuit breaker, which provides a 65kA interrupting rating at 480VAC.
Is the trip unit on this 100A breaker adjustable?

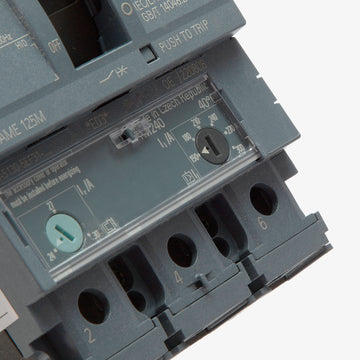

Yes, it features a TM230 thermal-magnetic trip unit. While the thermal overload setting is fixed at 100A, the magnetic short-circuit trip setting is adjustable to help coordinate with other protection devices in your system.
Can this 3-pole breaker be used in 500VDC applications?
Yes, this breaker is rated for up to 500VDC with a 100kA interrupting capacity. However, achieving the maximum DC voltage rating requires wiring the poles in series according to Siemens DC application guidelines.
Which Siemens panelboards are compatible with this 3VA5 breaker?
This breaker is designed for use in Siemens P1 and P2 panelboards, as well as Siemens switchboards. Proper mounting hardware or strap kits are required for installation.
