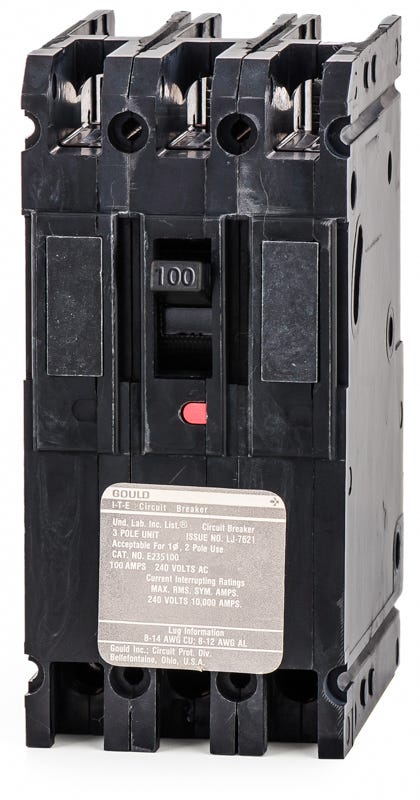

Siemens E23S100 - 100A 3 Pole Molded Case Switch
Re-Certified
Quantity
Description
Built for commercial and industrial isolation, the Siemens E23S100 operates as a 3-pole, 100A molded case switch. As a non-automatic disconnect, it provides reliable circuit switching without thermal overload protection. This unit mount device fits Siemens panelboards, switchboards, and motor control centers. It serves as a dedicated disconnect point and is officially replaced by the newer ED23S100 model. It features a magnetic-only trip with a self-protective instantaneous override.Specifications
| Brand | Siemens |
|---|---|
| Part Number | E23S100-R |
| Series | E |
| Amperage | 100A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 125/250VDC |
| Phase | 3 |
| AIC Rating | 10kA @ 240VAC, 5kA @ 125/250VDC |
| Frame Type | E2 |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens Panelboards, Switchboards, Motor Control Centers |
| Wire Gauge | 10-1/0 AWG (Cu/Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 10 AWG |
| Trip Technology | Magnetic Only |
|---|
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Undervoltage Release |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | Non-Automatic (Disconnect), Self-Protective Instantaneous Override |
