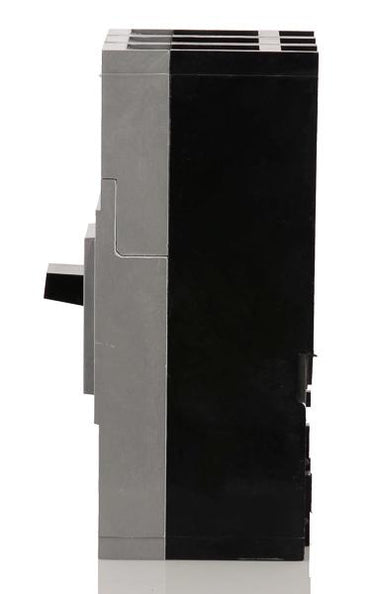

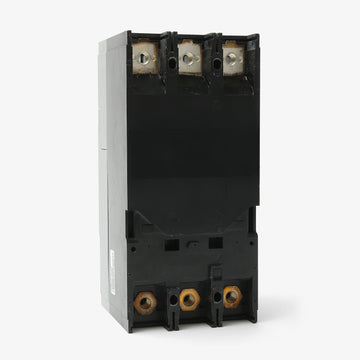

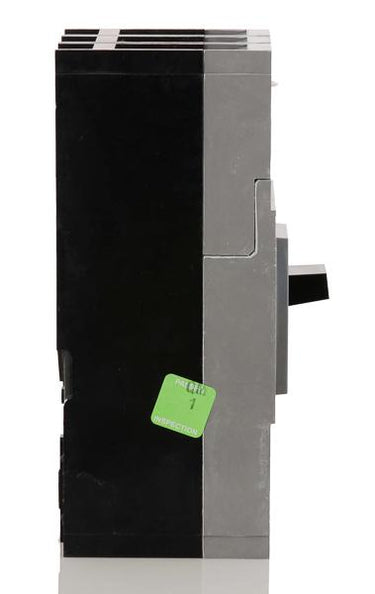

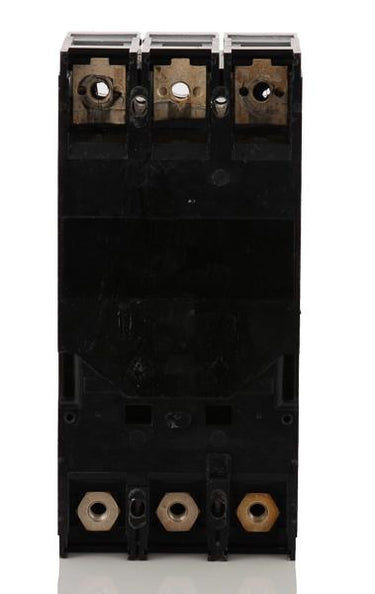

Siemens FXD63B100 Molded Case Circuit Breaker
- 100A
- 3 Pole
- Unit Mount
Siemens
FXD63B100
Molded Case Circuit Breaker
Brand
Siemens
SKU
FXD63B100
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Siemens FXD63B100 - 100A 3 Pole Molded Case Circuit Breaker
New
Quantity
Quantity
Siemens FXD63B100 - 100A 3 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Siemens |
|---|---|
| Part Number | FXD63B100 |
| Series | FXD6 |
| Amperage | 100A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC, 500VDC |
| Phase | 3 |
| AIC Rating | 65kA @ 240VAC, 35kA @ 480VAC, 22kA @ 600VAC, 30kA @ 250VDC, 18kA @ 500VDC |
| Frame Type | FXD |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens P1, P2, P3 Panelboards, Sentron Switchboards, Motor Control Centers, Sentron Enclosures |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Adjustable Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Motor Operator, Rotary Handle, Mechanical Interlock |
|---|---|
| Accessories | Requires Lug Kit TA1FD350A |
| Standards | CSA C22.2 No. 5, HACR Rated, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CE, CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Reverse Feed, Non-Interchangeable Trip, Trip-Free Mechanism |
Quantity
Siemens FXD63B100 - 100A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Siemens |
|---|---|
| Part Number | FXD63B100-R |
| Series | FXD6 |
| Amperage | 100A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC, 500VDC |
| Phase | 3 |
| AIC Rating | 65kA @ 240VAC, 35kA @ 480VAC, 22kA @ 600VAC, 30kA @ 250VDC, 18kA @ 500VDC |
| Frame Type | FXD |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens P1, P2, P3 Panelboards, Sentron Switchboards, Motor Control Centers, Sentron Enclosures |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Adjustable Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Motor Operator, Rotary Handle, Mechanical Interlock |
|---|---|
| Accessories | Requires Lug Kit TA1FD350A |
| Standards | CSA C22.2 No. 5, HACR Rated, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CE, CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Reverse Feed, Non-Interchangeable Trip, Trip-Free Mechanism |
Similar Items
110A 3 Pole Molded Case Circuit Breaker
110A 3 Pole Molded Case Circuit Breaker
90A 3 Pole Molded Case Circuit Breaker
Description
Built for commercial and industrial power distribution, the Siemens FXD63B100 delivers 100 amps of thermal-magnetic protection in a 3-pole configuration. This Sentron FD-frame breaker mounts into Siemens P1, P2, and P3 panelboards, along with compatible motor control centers. Offering a 35kAIC rating at 480VAC, it includes a trip-free mechanism and is UL listed for reverse feed. Note that this model requires the TA1FD350A lug kit for proper installation.Specifications
| Brand | Siemens |
|---|---|
| Part Number | FXD63B100 |
| Series | FXD6 |
| Amperage | 100A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC, 500VDC |
| Phase | 3 |
| AIC Rating | 65kA @ 240VAC, 35kA @ 480VAC, 22kA @ 600VAC, 30kA @ 250VDC, 18kA @ 500VDC |
| Frame Type | FXD |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens P1, P2, P3 Panelboards, Sentron Switchboards, Motor Control Centers, Sentron Enclosures |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Adjustable Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Motor Operator, Rotary Handle, Mechanical Interlock |
|---|---|
| Accessories | Requires Lug Kit TA1FD350A |
| Standards | CSA C22.2 No. 5, HACR Rated, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CE, CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Reverse Feed, Non-Interchangeable Trip, Trip-Free Mechanism |
Product FAQs
6 answersWhat is the difference between the Siemens FXD63B100 and the FD63B100?
The FXD63B100 is built with a non-interchangeable, factory-sealed trip unit. The FD63B100 features an interchangeable trip unit that can be swapped or upgraded if your system requirements change.
Which panelboards and distribution equipment are compatible with the FXD63B100?
This molded case circuit breaker is designed for installation in Siemens P1, P2, and P3 panelboards, as well as Sentron switchboards, motor control centers, and individual Sentron enclosures.
Is the FXD63B100 rated for direct current (DC) systems?
Yes, this breaker is rated for DC applications. It carries an interrupting rating of 30kAIC at 250VDC and 18kAIC at 500VDC.
Are higher interrupting rating alternatives available for this frame size?
Yes, if your system requires a higher fault current rating than the 35kAIC at 480VAC provided by this breaker, you can upgrade to the HFD63B100 (65kAIC at 480V) or the CFD63B100 (100kAIC at 480V). All of these share the same physical FD frame footprint.
How is the thermal-magnetic trip unit configured on this breaker?
The breaker provides standard LI (Long-Time and Instantaneous) trip functions. The thermal element for overload protection is fixed at 100 Amps, while the magnetic element for short-circuit protection is adjustable to suit specific system parameters.
What size wire can be used with standard lugs on the FXD63B100?
When equipped with standard TA1FD350A mechanical lugs, this FD-frame breaker accepts wire sizes from #6 AWG to 350 kcmil copper or #4 AWG to 350 kcmil aluminum.
