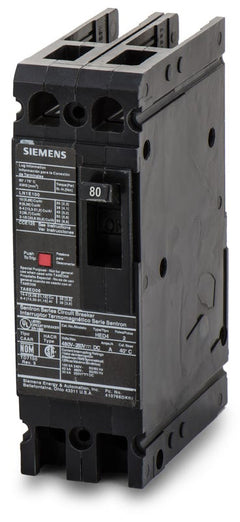

Siemens HED42B100L Molded Case Circuit Breaker
- 100A
- 2 Pole
- Unit Mount
Siemens
HED42B100L
Molded Case Circuit Breaker
Brand
Siemens
SKU
HED42B100L
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Siemens HED42B100L - 100A 2 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
80A 2 Pole Molded Case Circuit Breaker
70A 2 Pole Molded Case Circuit Breaker
60A 2 Pole Molded Case Circuit Breaker
Description
Engineered for commercial applications, the Siemens HED42B100L is a 2-pole, 100A molded case circuit breaker. As part of the Sentron ED-Frame family, it provides dependable overcurrent defense for enclosures and switchboards. This unit mount breaker includes factory-installed line and load lugs (LN1E100) for straightforward cable connections. It serves as a reliable component, though it is eventually replaced by the 3VA5110-6EC21-0AA0 series. Rated 42kAIC at 480V, it is HACR certified.Specifications
| Brand | Siemens |
|---|---|
| Part Number | HED42B100L |
| Series | HED4 |
| Amperage | 100A |
| Poles | 2 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 250VDC |
| Phase | 1 |
| AIC Rating | 100kA @ 240VAC, 42kA @ 480VAC, 30kA @ 250VDC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Enclosures, Switchboards, Motor Control Centers |
| Wire Gauge | 10 AWG - 1/0 AWG (Cu/Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 10 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Undervoltage Release |
|---|---|
| Accessories | Line and Load Lugs (LN1E100) |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CSA, HACR, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, High Interrupting Capacity, Reverse Feed, Non-Interchangeable Trip |
Product FAQs
7 answersCan the Siemens HED42B100L replace an older ITE breaker with the same catalog number?
Yes. Siemens acquired ITE and continued manufacturing the SENTRON ED frame series. A modern Siemens HED42B100L is a direct, exact replacement for an older ITE breaker bearing the same catalog number.
What does the L suffix in the HED42B100L catalog number indicate?
The L suffix indicates that this circuit breaker comes factory-equipped with standard line and load side lugs.
Is the HED42B100L compatible with standard residential load centers?
No. This is a unit-mount, feed-thru molded case circuit breaker designed for industrial and commercial applications. It mounts directly to a backpan in enclosures, switchboards, or motor control centers and is not a plug-on breaker for residential panels.
Are the trip settings on the HED42B100L adjustable?
No. This breaker features a fixed thermal and fixed magnetic trip unit. It provides standard long-time and instantaneous (LI) protection functions that cannot be field-adjusted.
What does the H in the HED42B100L catalog number stand for?
The H designates this as a High Interrupting capacity breaker within the Siemens ED frame family. It provides a 42kAIC rating at 480V, which is significantly higher than standard ED4 breakers.
Does the HED42B100L provide ground fault or arc fault protection?
No. This is a standard thermal-magnetic circuit breaker designed strictly for overload and short-circuit protection. It does not include GFCI or AFCI functionality.
How is the HED42B100L mounted inside an enclosure?
This is a unit-mount breaker, meaning it is bolted directly to the mounting surface or backpan of the enclosure. Wire connections are then made directly to the provided line and load lugs.
