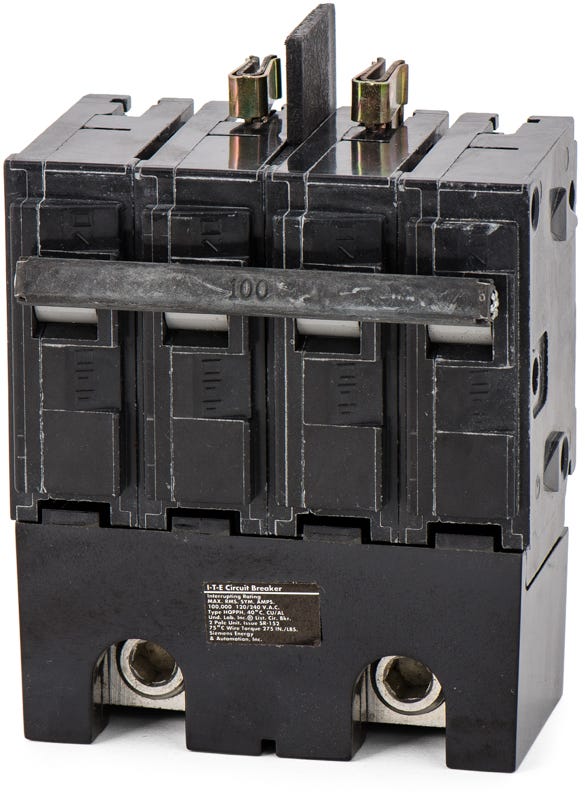

Siemens HQ2100BH Molded Case Circuit Breaker
- 100A
- 2 Pole
- Plug-On
Quantity
Siemens HQ2100BH - 100A 2 Pole Molded Case Circuit Breaker
New
Quantity
Description
Built for residential and commercial applications, the HQ2100BH is a 2-pole, 100A plug-on molded case circuit breaker. It mounts into compatible Siemens meter combinations and service entrance load centers, providing reliable overcurrent protection. Rated for 120/240VAC, this Q-Series breaker stands out with an extra-high 100kAIC interrupting capacity and a common trip mechanism, ensuring maximum safety for demanding electrical systems.Specifications
| Brand | Siemens |
|---|---|
| Part Number | HQ2100BH |
| Series | HQ |
| Amperage | 100A |
| Poles | 2 |
| Mounting Style | Plug-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 100kA @ 120/240VAC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Siemens Meter Combinations, Service Entrance Load Centers |
| Wire Gauge | 4-1/0 AWG (Cu), 2-1/0 AWG (Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Padlock Attachment |
|---|---|
| Standards | UL 489, CSA C22.2 No. 5, HACR Rated |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | Extra High Interrupting Capacity, HACR Rated, Common Trip |
Product FAQs
5 answersWhich Siemens load centers and metering equipment accept the HQ2100BH?
The HQ2100BH is designed for use in Siemens 200A modular and Uni-Pak metering equipment, as well as 300A to 600A service entrance load centers.
How much space does the HQ2100BH require in a panel?
Although it is a 2-pole breaker, it features a 4-pole wide frame. It requires four panel spaces (two adjacent and two opposite) for proper installation.
Can the HQ2100BH be used in place of a standard 100A QP branch breaker?
No. The HQ2100BH is a 4-pole wide main breaker frame (HQPPH type) designed for specific metering equipment and large load centers. It will not fit in standard 1-inch branch breaker spaces.
What is the difference between the HQPPH series and standard QPP series breakers?
The HQPPH series, which includes the HQ2100BH, provides a high interrupting rating of 100kAIC. Standard QPP series breakers offer a 10kAIC rating, while QPPH series breakers are rated for 22kAIC.
Does the HQ2100BH provide GFCI or AFCI protection?
No, the HQ2100BH is a standard thermal-magnetic circuit breaker. It provides overload and short-circuit protection but does not include Ground Fault (GFCI) or Arc Fault (AFCI) sensing.
