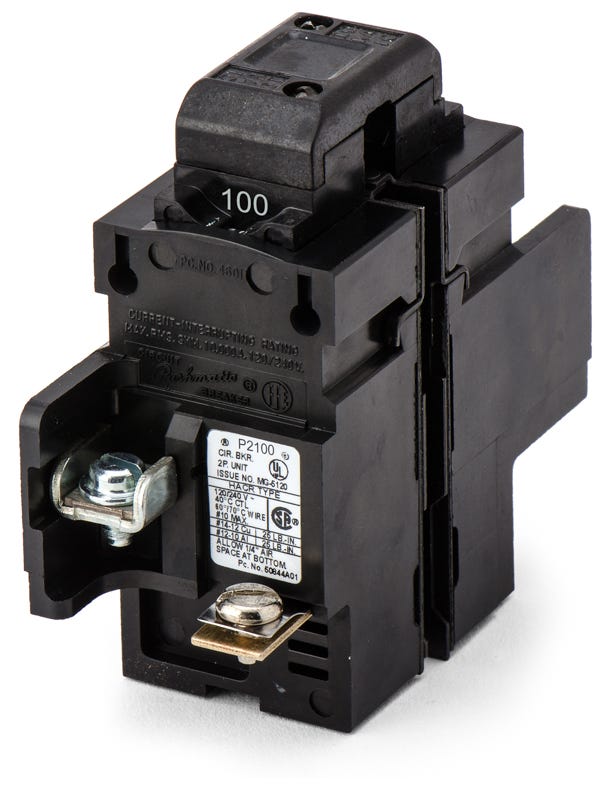

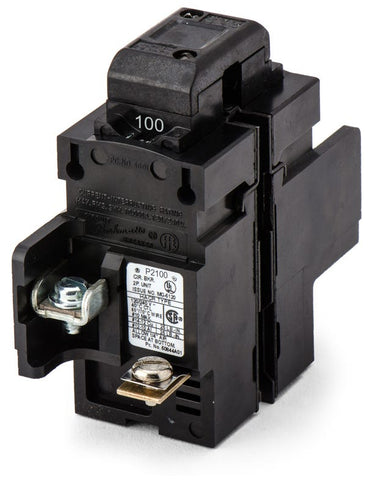

Siemens P2100 Molded Case Circuit Breaker
- 100A
- 2 Pole
- Bolt-On
Quantity
Siemens P2100 - 100A 2 Pole Molded Case Circuit Breaker
New
Quantity
Quantity
Siemens P2100 - 100A 2 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Siemens |
|---|---|
| Part Number | P2100 |
| Series | P |
| Amperage | 100A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Frame Type | P |
|---|---|
| Terminal Type | Lugs |
| For Use With | ITE / Siemens Pushmatic Load Centers |
| Wire Gauge | 1-1/0 AWG (Cu/Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 1 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Accessories | Load Side Lugs Included |
|---|---|
| Standards | UL 489, CSA C22.2 No. 5 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | Common Trip |
Quantity
Siemens P2100 - 100A 2 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Siemens |
|---|---|
| Part Number | P2100-R |
| Series | P |
| Amperage | 100A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Frame Type | P |
|---|---|
| Terminal Type | Lugs |
| For Use With | ITE / Siemens Pushmatic Load Centers |
| Wire Gauge | 1-1/0 AWG (Cu/Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 1 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Accessories | Load Side Lugs Included |
|---|---|
| Standards | UL 489, CSA C22.2 No. 5 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | Common Trip |
Description
Rated 10kAIC at 120/240VAC, this 100A two-pole breaker provides reliable thermal-magnetic protection for residential and commercial systems. It features a distinctive push-button mechanism that offers clear visual indication of circuit status. The bolt-on design mounts into legacy Pushmatic load centers originally manufactured by Bulldog, Gould, ITE, and Siemens. Equipped with a common trip function, it ensures both poles disconnect simultaneously during an overload or short circuit.Specifications
| Brand | Siemens |
|---|---|
| Part Number | P2100 |
| Series | P |
| Amperage | 100A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Frame Type | P |
|---|---|
| Terminal Type | Lugs |
| For Use With | ITE / Siemens Pushmatic Load Centers |
| Wire Gauge | 1-1/0 AWG (Cu/Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 1 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Accessories | Load Side Lugs Included |
|---|---|
| Standards | UL 489, CSA C22.2 No. 5 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | Common Trip |
Product FAQs
7 answersWhat load centers are compatible with the Siemens P2100 circuit breaker?
The P2100 is designed specifically for legacy Pushmatic load centers. It fits panels originally manufactured by Bulldog, Gould, ITE, and Siemens.
Can the Siemens P2100 replace older ITE or Bulldog Pushmatic breakers?
Yes, the Siemens P2100 serves as a direct replacement for legacy 100A, 2-pole Pushmatic breakers previously branded under ITE, Bulldog, or Gould.
Is there an aftermarket alternative to the Siemens P2100?
Yes, Connecticut Electric manufactures the UBIP2100, which serves as a direct aftermarket replacement for the 100A 2-pole Pushmatic P2100 breaker.
How does the Pushmatic mechanism operate on the P2100?
Unlike standard toggle breakers, the P2100 uses a push-button mechanism to manually open and close the circuit. This design provides clear visual indication of the breaker status.
How is the P2100 secured inside the panel?
The P2100 utilizes a bolt-on connection, requiring it to be physically screwed into the panel busbar. This provides a secure, low-resistance connection typical of Pushmatic load centers.
What wire sizes are accepted by the terminals on the P2100?
The terminal lugs accept copper or aluminum conductors ranging from 1 AWG to 1/0 AWG. Always verify local codes and apply an approved oxide inhibitor when terminating aluminum wiring.
Does the P2100 provide common trip protection?
Yes, this 2-pole thermal-magnetic breaker features an internal common trip mechanism that ensures both poles disconnect simultaneously during an overload or short circuit event.
