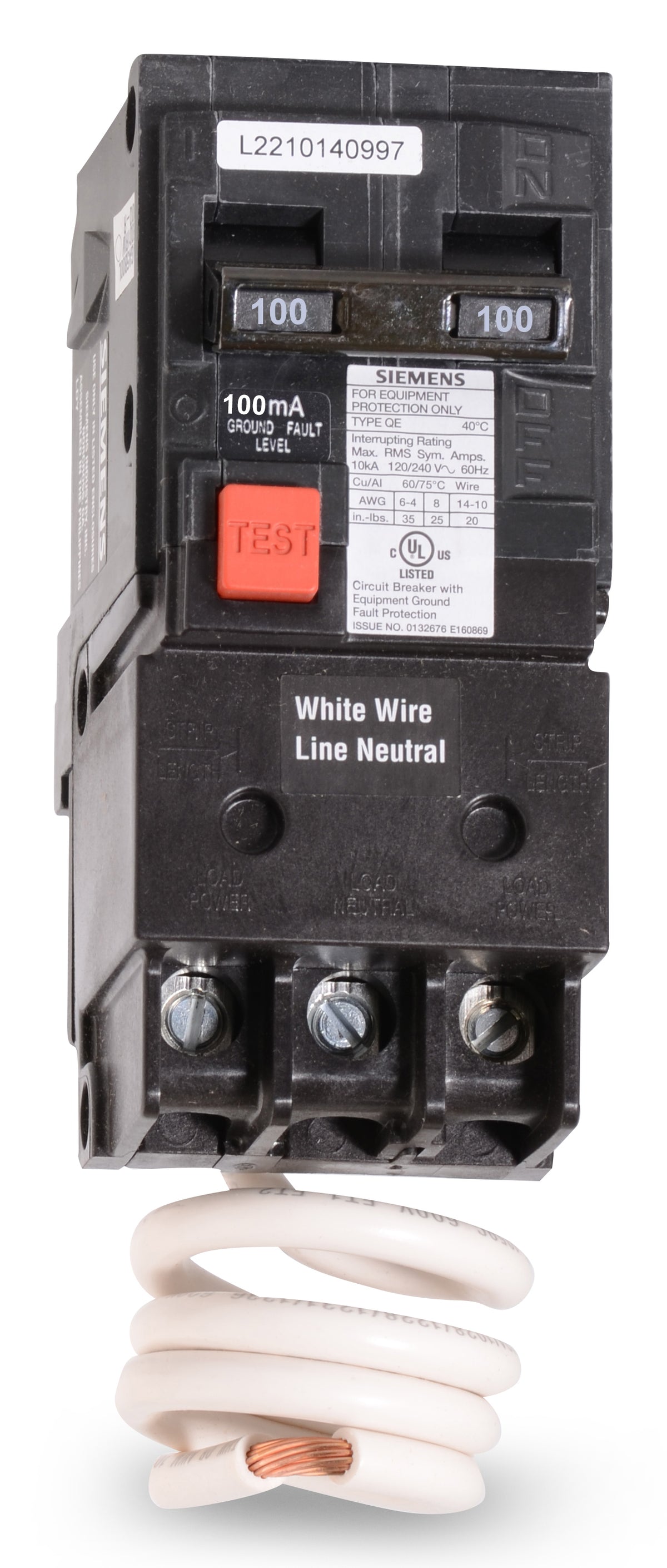

Siemens QE2100VH Molded Case Circuit Breaker
- 100A
- 2 Pole
- Plug-On
Quantity
Siemens QE2100VH - 100A 2 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
Quantity
Siemens QE2100VH - 100A 2 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Siemens |
|---|---|
| Part Number | QE2100VH |
| Series | QE |
| Amperage | 100A |
| Poles | 2 |
| Mounting Style | Plug-On |
| Voltage | 240VAC |
| Phase | 1 |
| AIC Rating | 22kA @ 240VAC |
| Frame Type | QE |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D Meter-Pak, Panelboards |
| Wire Gauge | 4 AWG - 2/0 AWG (Cu/Al) |
| Max Wire | 2/0 AWG |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Padlock Attachment |
|---|---|
| Standards | UL 489, CSA C22.2 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, High Interrupting Capacity |
Quantity
Siemens QE2100VH - 100A 2 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Siemens |
|---|---|
| Series | QE |
| Amperage | 100A |
| Poles | 2 |
| Mounting Style | Plug-On |
| Voltage | 240VAC |
| Phase | 1 |
| AIC Rating | 22kA @ 240VAC |
| Frame Type | QE |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D Meter-Pak, Panelboards |
| Wire Gauge | 4 AWG - 2/0 AWG (Cu/Al) |
| Max Wire | 2/0 AWG |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Padlock Attachment |
|---|---|
| Standards | UL 489, CSA C22.2 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, High Interrupting Capacity |
Description
Cataloged under Siemens but manufactured for Square D systems, the QE2100VH is a 100-amp molded case circuit breaker. It provides robust single-phase power distribution for commercial and industrial applications, featuring a high interrupting capacity of 22kAIC at 240VAC. This plug-on breaker is engineered to fit seamlessly into Square D Meter-Pak enclosures and compatible panelboards. The unit utilizes fixed thermal-magnetic trip technology to ensure precise response to electrical faults.Specifications
| Brand | Siemens |
|---|---|
| Series | QE |
| Amperage | 100A |
| Poles | 2 |
| Mounting Style | Plug-On |
| Voltage | 240VAC |
| Phase | 1 |
| AIC Rating | 22kA @ 240VAC |
| Frame Type | QE |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D Meter-Pak, Panelboards |
| Wire Gauge | 4 AWG - 2/0 AWG (Cu/Al) |
| Max Wire | 2/0 AWG |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Padlock Attachment |
|---|---|
| Standards | UL 489, CSA C22.2 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, High Interrupting Capacity |
Product FAQs
5 answersIs the QE2100VH a Siemens or Square D breaker?
The QE2100VH is manufactured for Square D systems and is specifically engineered to fit Square D Meter-Pak enclosures and compatible panelboards. However, it is frequently cataloged under the Siemens brand in distribution channels.
What wire gauge is required for the terminals on this 100A breaker?
The lugs on the QE2100VH accept wire sizes ranging from 4 AWG to 2/0 AWG. Both copper (Cu) and aluminum (Al) conductors are supported for installation.
How does the QE2100VH mount into the panel?
This breaker utilizes a plug-in connection type, allowing for straightforward installation and replacement within compatible Square D Meter-Pak systems without the need for bolt-on hardware.
What type of trip protection does the QE2100VH provide?
It features a fixed thermal-magnetic trip unit. This provides standard LI (long-time and instantaneous) protection to reliably detect and interrupt overloads and short circuits.
Is the QE2100VH rated for high interrupting capacity?
Yes, it features a high interrupting rating of 22kAIC at 240V AC, making it suitable for commercial and industrial applications requiring robust fault protection.
