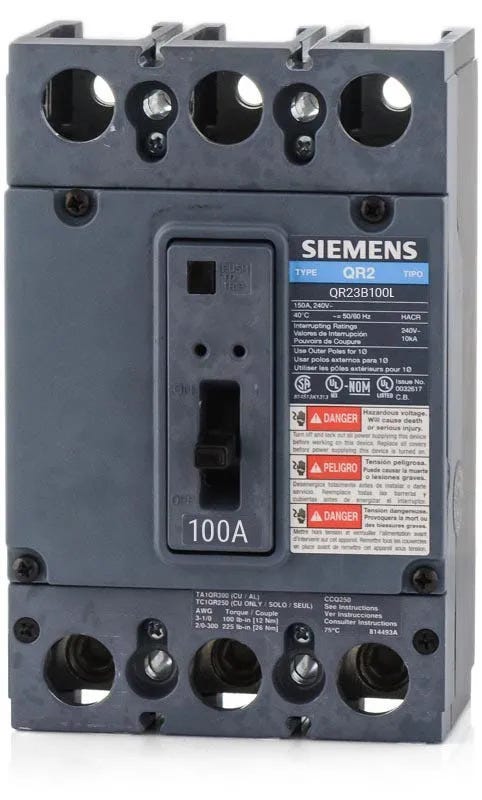

Siemens QR23B100L Molded Case Circuit Breaker
- 100A
- 3 Pole
- Unit Mount
Siemens
QR23B100L
Molded Case Circuit Breaker
Brand
Siemens
SKU
QR23B100L
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Siemens QR23B100L - 100A 3 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
100A 3 Pole Molded Case Circuit Breaker
100A 3 Pole Molded Case Circuit Breaker
100A 3 Pole Molded Case Circuit Breaker
Description
Engineered for commercial and industrial applications, the Siemens QR23B100L delivers robust thermal-magnetic protection. This 3-pole, 100A breaker handles demanding electrical loads while maintaining a 10kAIC rating at 240VAC. Featuring a unit mount configuration, it installs into enclosures and switchboards using included line and load lugs. It serves as a direct replacement for the discontinued QJ23B100L. This SENTRON family breaker includes a push-to-trip button and is HACR rated.Specifications
| Brand | Siemens |
|---|---|
| Part Number | QR23B100L |
| Series | QR |
| Amperage | 100A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC |
| Phase | 3 |
| AIC Rating | 10kA @ 240VAC |
| Frame Type | QR |
|---|---|
| Terminal Type | Lugs |
| For Use With | Enclosures, Switchboards, Control Panels (Cable-in/Cable-out) |
| Wire Gauge | 6 AWG - 1/0 AWG (Al/Cu) |
| Max Wire | 1/0 AWG |
| Min Wire | 6 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Padlock Attachment, Handle Blocking Device, Mechanical Interlock, Mounting Screw Kit |
|---|---|
| Accessories | Line and Load Side Lugs |
| Standards | CSA C22.2 No. 5, HACR Rated, UL 489 |
| Approval | CSA, NOM, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Reverse Feed, Push-to-Trip Button, Non-Interchangeable Trip, Common Trip, 40C Ambient Calibration |
Product FAQs
5 answersDoes the QR23B100L replace older Siemens QJ frame breakers?
Yes, the QR23B100L is a direct replacement for the discontinued QJ23B100L circuit breaker. The QR frame shares the same physical footprint and mounting configuration as the legacy QJ frame for straightforward retrofitting.
What does the L suffix in the QR23B100L catalog number indicate?
The L suffix indicates that the circuit breaker comes factory-installed with both line and load side lugs. Standard QR breakers without this suffix are typically supplied with load side lugs only.
Which Siemens enclosures are compatible with this 3-pole QR frame breaker?
The QR23B100L can be housed in dedicated Siemens QR Series enclosures. Compatible models include the QR2N1S for NEMA 1 indoor applications, the QR2N3R3 for NEMA 3R outdoor use, and the QR2N4X for NEMA 4X watertight protection.
Is the Siemens QR23B100L suitable for reverse feed applications?
Yes, this molded case circuit breaker is rated for reverse feed installations. This allows it to be back-fed when used as a main breaker in compatible panels or switchboards.
Is this circuit breaker HACR rated?
Yes, the QR23B100L carries an HACR rating, meaning it is tested and approved for the specific electrical demands of heating, air conditioning, and refrigeration equipment.
