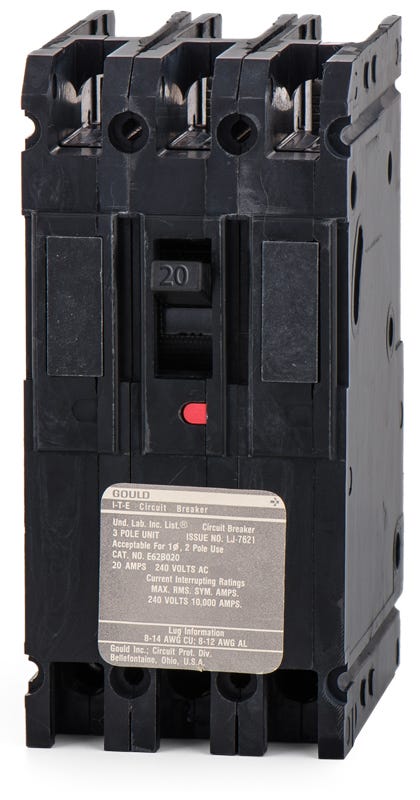

Siemens / ITE E62B020 Molded Case Circuit Breaker
- 20A
- 2 Pole
- Bolt-On
Quantity
Siemens / ITE E62B020 - 20A 2 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
Description
Part of the legacy ED frame family, the Siemens E62B020 is a robust thermal-magnetic breaker designed for commercial and industrial applications. This 20A, two-pole device delivers reliable long-time and instantaneous protection for demanding 600VAC circuits. It bolts securely into Siemens P1, P2, and P3 panelboards, offering a seamless hardware match for older infrastructure. Serving as a direct substitute for the ED62B020, it provides an 18 kAIC rating at 600VAC and features a HACR rating.Specifications
| Brand | Siemens / ITE |
|---|---|
| Part Number | E62B020-R |
| Series | ED6 |
| Amperage | 20A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 600VAC, 250VDC |
| Phase | 1 |
| AIC Rating | 65kA @ 240VAC, 25kA @ 480VAC, 18kA @ 600VAC, 30kA @ 250VDC |
| Frame Type | E6 |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens P1, P2, P3 Panelboards |
| Wire Gauge | 14-10 AWG (Cu), 12-10 AWG (Al) |
| Max Wire | 10 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Non-Interchangeable Trip, Trip-Free Mechanism |
Product FAQs
6 answersWhich Siemens panelboards are compatible with the E62B020 circuit breaker?
This bolt-on breaker is designed for use in Siemens Sentron panelboards, specifically the P1, P2, and P3 series. It mounts directly to the panel bus.
Can the E62B020 be used to replace older ITE ED6 breakers?
Yes. Siemens acquired ITE and continues to manufacture the ED frame series. The E62B020 is a direct replacement for legacy ITE 2-pole, 20A, 600V ED6 frame breakers.
Does the E62B020 come with both line and load side lugs?
No. As a bolt-on panelboard breaker, it features a bolt-on connection for the line side and includes lugs only on the load side.
What wire sizes are accepted by the load side lugs on this 20A breaker?
The factory-installed load lugs accept 14 to 10 AWG copper wire or 12 to 10 AWG aluminum wire.
Is the E62B020 suitable for direct current (DC) systems?
Yes, this thermal-magnetic breaker is rated for DC applications up to 250VDC, providing a 30kA interrupting capacity at that voltage.
Does this breaker provide GFCI or AFCI protection?
No. The E62B020 is a standard thermal-magnetic breaker providing only long-time and instantaneous (LI) overcurrent and short-circuit protection. It does not include ground fault or arc fault capabilities.
