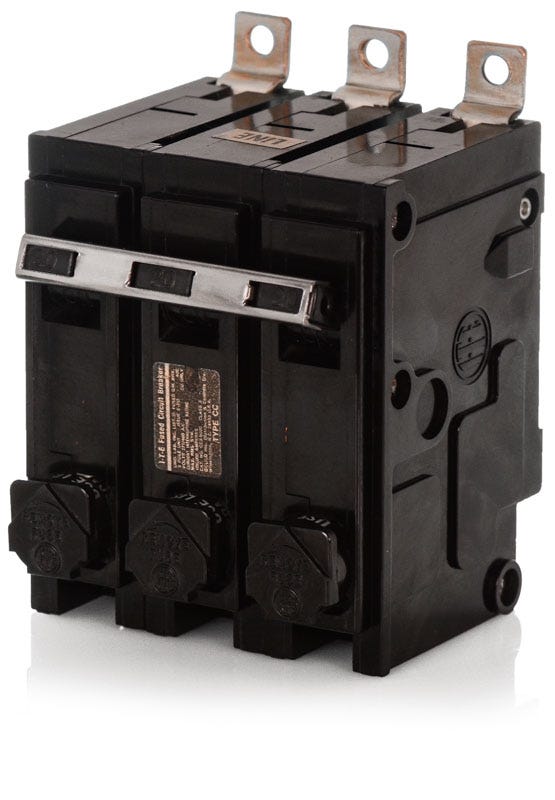

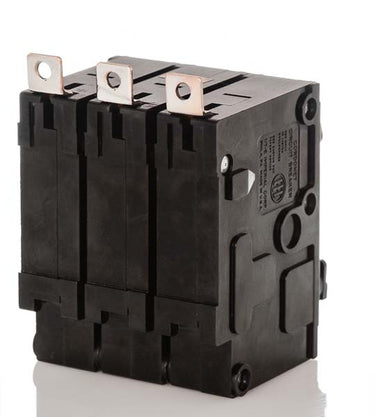

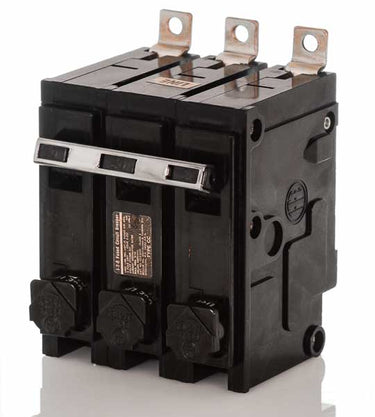

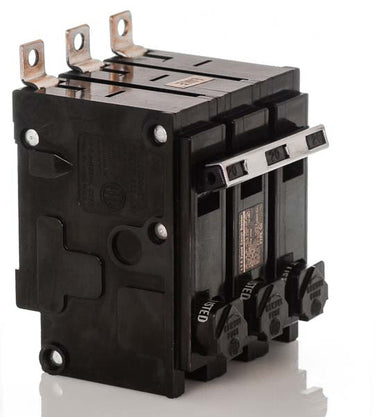

Siemens CC3-B020 Molded Case Circuit Breaker
- 20A
- 3 Pole
- Bolt-On
Quantity
Siemens CC3-B020 - 20A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
Description
Built to support older ITE and Siemens infrastructure, this 20A three-pole breaker fits legacy panelboards including FC-20 and CDP-6 models. It utilizes integral fuses to achieve a high-tier 200kAIC interrupting rating at 240VAC, offering exceptional current-limiting protection. While this specific C-Frame model is part of a legacy series, it remains essential for maintaining existing commercial systems. Note that the manufacturer designates the CED63B020 as its modern functional substitute.Specifications
| Brand | Siemens |
|---|---|
| Part Number | CC3-B020-R |
| Series | CC |
| Amperage | 20A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480Y/277VAC, 480VAC |
| Phase | 3 |
| AIC Rating | 200kA @ 240VAC, 100kA @ 480Y/277VAC, 100kA @ 480VAC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Siemens / ITE Legacy Panelboards (e.g. FC-20, CDP-6) |
| Wire Gauge | #14-10 AWG |
| Max Wire | 10 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Auxiliary Switch |
|---|---|
| Accessories | Load Side Lugs Included, Integral Fuses |
| Standards | UL 489, CSA C22.2 No. 5 |
| Approval | UL, CSA |
| Temp Rating | 40°C |
| Construction Features | Current Limiting, Fused, HACR Rated, Non-Interchangeable Trip |
| Special Features | Integrally Fused |
Product FAQs
3 answersWhich panelboards are compatible with the CC3-B020 circuit breaker?
This C-frame breaker is designed for installation in legacy Siemens and ITE panelboards, specifically models like the FC-20 and CDP-6. It utilizes a bolt-on mounting configuration for a secure bus connection.
What wire sizes are supported by the terminals on this breaker?
The load side lugs accept conductors ranging from 14 AWG to 10 AWG. Always verify the conductor material and apply the manufacturer specified torque during installation.
Can the trip curve be adjusted on the CC3-B020?
No. This unit is equipped with a fixed thermal-magnetic trip mechanism. It provides standard long-time and instantaneous (LI) protection without adjustable dials or interchangeable rating plugs.
